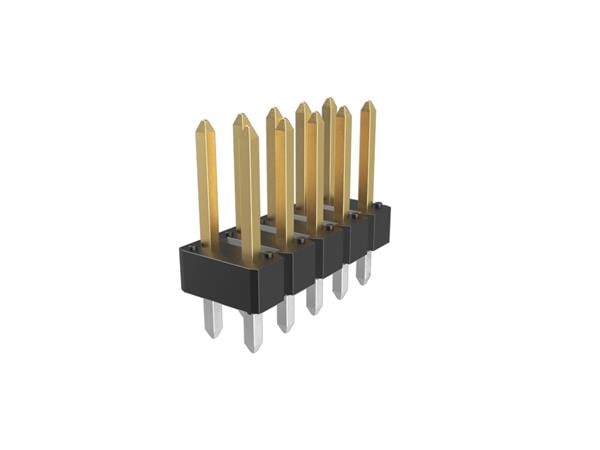

67997-210HLF Amphenol ICC (FCI)

Description: CONN HEADER VERT 10POS 2.54MM, Packaging: Bag, Connector Type: Header, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 2, Style: Board to Board, Operating Temperature: -65°C ~ 130°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold or Gold, GXT™, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.120" (3.05mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.450" (11.43mm), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.230" (5.84mm).
