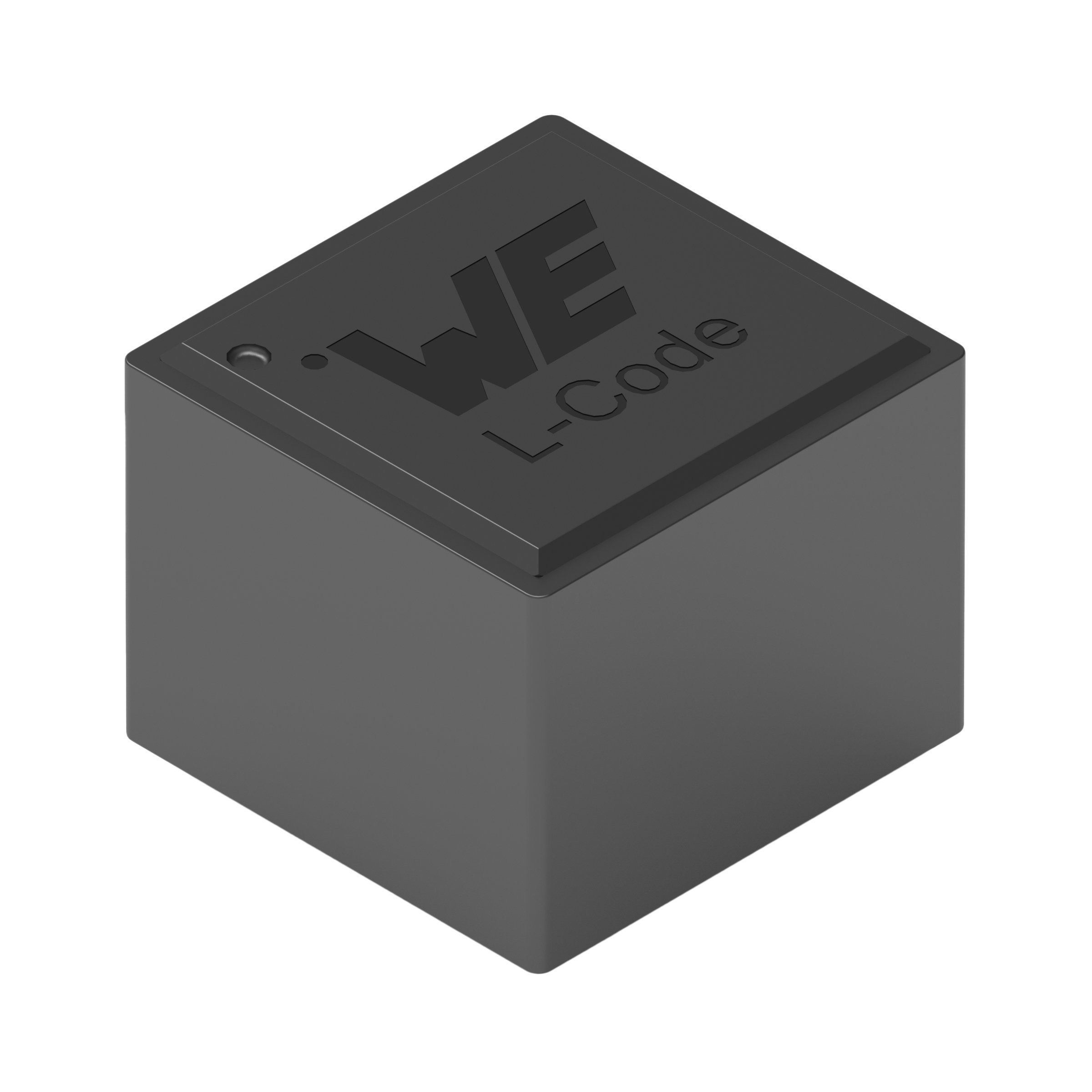

744393465018 Würth Elektronik
Виробник: Würth ElektronikDescription: FIXED IND 1.8H 25.7A 4M
Packaging: Tape & Reel (TR)
Tolerance: ±20%
Package / Case: Nonstandard
Size / Dimension: 0.260" L x 0.252" W (6.60mm x 6.40mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Molded
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 4mOhm Max
Frequency - Self Resonant: 31MHz
Ratings: AEC-Q200
Current - Saturation (Isat): 21.5A
Material - Core: Iron
Inductance Frequency - Test: 100 kHz
Height - Seated (Max): 0.240" (6.10mm)
Inductance: 1.8 µH
Current Rating (Amps): 25.7 A
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 744393465018 Würth Elektronik
Description: FIXED IND 1.8H 25.7A 4M, Packaging: Tape & Reel (TR), Tolerance: ±20%, Package / Case: Nonstandard, Size / Dimension: 0.260" L x 0.252" W (6.60mm x 6.40mm), Mounting Type: Surface Mount, Shielding: Shielded, Type: Molded, Operating Temperature: -40°C ~ 125°C, DC Resistance (DCR): 4mOhm Max, Frequency - Self Resonant: 31MHz, Ratings: AEC-Q200, Current - Saturation (Isat): 21.5A, Material - Core: Iron, Inductance Frequency - Test: 100 kHz, Height - Seated (Max): 0.240" (6.10mm), Inductance: 1.8 µH, Current Rating (Amps): 25.7 A.
Інші пропозиції 744393465018
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
|
|
744393465018 | Виробник : Würth Elektronik |
Description: FIXED IND 1.8H 25.7A 4M Packaging: Cut Tape (CT) Tolerance: ±20% Package / Case: Nonstandard Size / Dimension: 0.260" L x 0.252" W (6.60mm x 6.40mm) Mounting Type: Surface Mount Shielding: Shielded Type: Molded Operating Temperature: -40°C ~ 125°C DC Resistance (DCR): 4mOhm Max Frequency - Self Resonant: 31MHz Ratings: AEC-Q200 Current - Saturation (Isat): 21.5A Material - Core: Iron Inductance Frequency - Test: 100 kHz Height - Seated (Max): 0.240" (6.10mm) Inductance: 1.8 µH Current Rating (Amps): 25.7 A |
товару немає в наявності |
|
 |
744393465018 | Виробник : Wurth Elektronik |
Power Inductors - SMD WE-XHMI 6060 1.8uH 25.7A 4mOhms |
товару немає в наявності |
