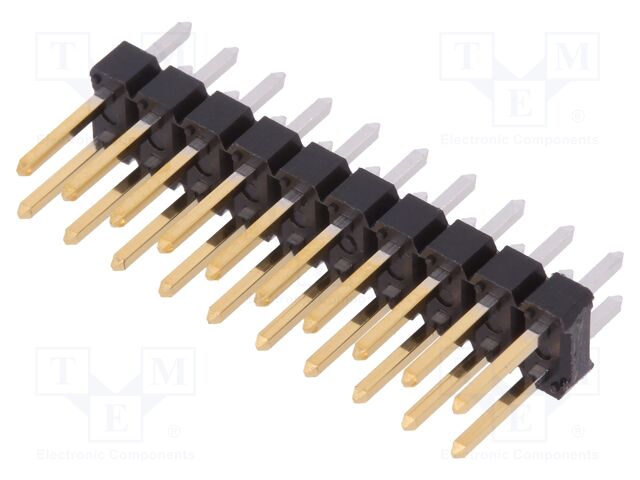

77313-818-20LF

77313-818-20LF AMPHENOL COMMUNICATIONS SOLUTIONS


pVersion=0046&contRep=ZT&docId=005056AB752F1ED8868EE0BA2DEF0A18&compId=77313-818-XXLF.pdf?ci_sign=72db3cf9da2613803a4c0904e6263e46321d233c Виробник: AMPHENOL COMMUNICATIONS SOLUTIONS
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 20; BERGSTIK; THT
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 20
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 2x10
Contact plating: gold-plated
Kind of package: bulk
Manufacturer series: BERGSTIK
Plating thickness: 0.38µm
Family: FCI
Height: 11.43mm
на замовлення 992 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
7+66.87 грн
10+53.69 грн
22+42.21 грн
60+39.93 грн
200+39.70 грн
600+38.44 грн
Мінімальне замовлення: 7
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис 77313-818-20LF AMPHENOL COMMUNICATIONS SOLUTIONS

Description: CONN HEADER VERT 20POS 2.54MM, Packaging: Bulk, Connector Type: Header, Breakaway, Current Rating (Amps): 3A per Contact, Mounting Type: Through Hole, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 130°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold or Gold, GXT™, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.120" (3.05mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.450" (11.43mm), Insulation Material: Thermoplastic, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.230" (5.84mm).

Інші пропозиції 77313-818-20LF за ціною від 35.97 грн до 85.50 грн

Фото Назва Виробник Інформація Доступність
Ціна
77313-818-20LF 77313-818-20LF Виробник : Amphenol ICC (FCI) bwb_bergstik.pdf Description: CONN HEADER VERT 20POS 2.54MM
Packaging: Bulk
Connector Type: Header, Breakaway
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 130°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold or Gold, GXT™
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.120" (3.05mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.450" (11.43mm)
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.230" (5.84mm)
на замовлення 1944 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
5+73.47 грн
10+57.70 грн
200+44.21 грн
600+37.64 грн
1000+35.97 грн
Мінімальне замовлення: 5
В кошику  од. на суму  грн.
77313-818-20LF 77313-818-20LF Виробник : AMPHENOL COMMUNICATIONS SOLUTIONS pVersion=0046&contRep=ZT&docId=005056AB752F1ED8868EE0BA2DEF0A18&compId=77313-818-XXLF.pdf?ci_sign=72db3cf9da2613803a4c0904e6263e46321d233c Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 20; BERGSTIK; THT
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 20
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 2x10
Contact plating: gold-plated
Kind of package: bulk
Manufacturer series: BERGSTIK
Plating thickness: 0.38µm
Family: FCI
Height: 11.43mm
кількість в упаковці: 1 шт
на замовлення 992 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
4+80.25 грн
10+66.90 грн
22+50.65 грн
60+47.92 грн
200+47.63 грн
600+46.13 грн
Мінімальне замовлення: 4
В кошику  од. на суму  грн.
77313-818-20LF 77313-818-20LF Виробник : Amphenol FCI bwb_bergstik.pdf Headers & Wire Housings 20P STR DR TMT HDR .38 AU .45IN LENGTH
на замовлення 477 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
5+85.13 грн
10+68.12 грн
100+48.07 грн
600+46.86 грн
1000+38.33 грн
2600+37.20 грн
Мінімальне замовлення: 5
В кошику  од. на суму  грн.
77313-818-20LF 77313-818-20LF Виробник : AMPHENOL COMMUNICATIONS SOLUTIONS 2562207.pdf Description: AMPHENOL COMMUNICATIONS SOLUTIONS - 77313-818-20LF - Stiftleiste, Board-to-Board, 2.54 mm, 2 Reihe(n), 20 Kontakt(e), Durchsteckmontage, gerade
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 20Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board
Steckverbindertyp: Stiftleiste
Produktpalette: FCI BergStik 77313 Series
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
SVHC: No SVHC (12-Jan-2017)
на замовлення 769 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
10+85.50 грн
13+69.67 грн
100+52.31 грн
500+47.08 грн
Мінімальне замовлення: 10
В кошику  од. на суму  грн.
77313-818-20LF 77313-818-20LF Виробник : FCI 77313.pdf Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Top Entry Thru-Hole BergStik® Bulk
товару немає в наявності
В кошику  од. на суму  грн.
