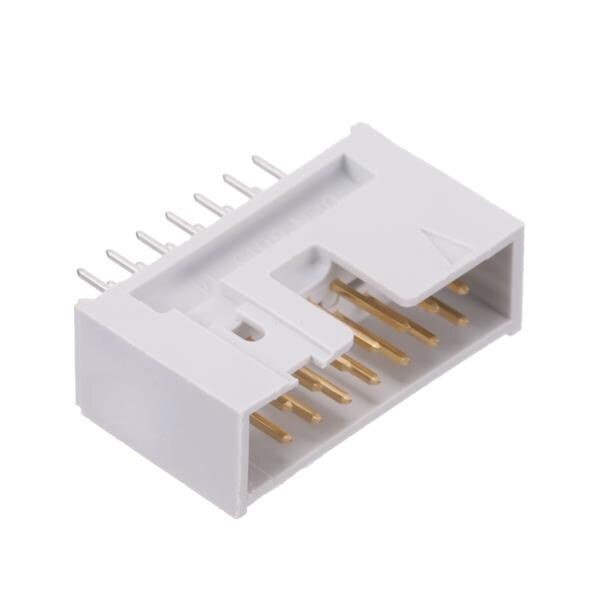

86130141014365E1LF Amphenol FCI

Description: QKE CONN SOCKET IDC, Features: Keying Slot, Packaging: Tray, Connector Type: Header, Mounting Type: Through Hole, Number of Positions: 14, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Gray, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold or Gold-Palladium, Contact Finish - Post: Tin, Contact Shape: Circular, Contact Length - Post: 0.171" (4.35mm), Insulation Height: 0.557" (14.15mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polybutylene Terephthalate (PBT), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.240" (6.10mm).
