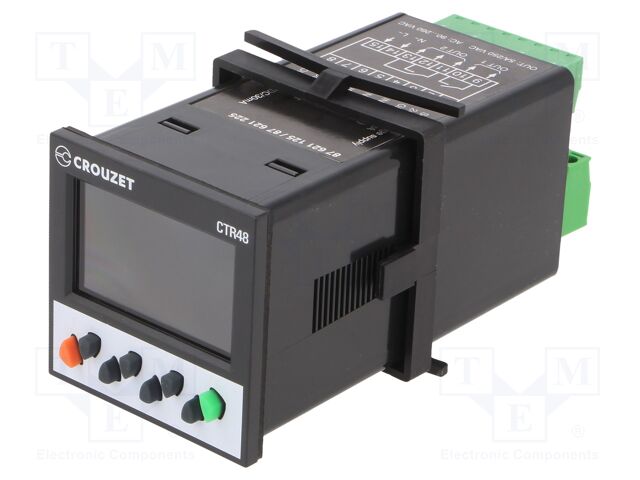

87621225 CROUZET

Category: Impulse Counters, Description: Counter: electronical; LCD; pulses/speed; -999999÷999999; SSR, Manufacturer series: CTR48, Resetting method: electrical; manual, Type of counter: electronical, Power supply: external, The additional control inputs: gate; RESET, Kind of display used: LCD, Kind of input 2: NPN; PNP, Kind of input 1: NPN; PNP, Mounting: on panel, Kind of counter: progressive/reversing, Type of counted signal: pulses/speed, Electrical connection: screw terminals, Kind of output 2: SPDT, Kind of output 1: SSR, Operating temperature: -20...65°C, Electrical input 1 parameters: 0...2V; 8...30V, Electrical input 2 parameters: 0...2V; 8...30V, Display 2 height: 7mm, Display height 1: 9mm, Mounting hole diameter: 45x45mm, Body dimensions: 48x48x112.8mm, Supply voltage: 85...265V AC, Max IN1 counting frequency: 40kHz, IN2 max counting frequency: 40kHz, Counting range: -999999...999999.
