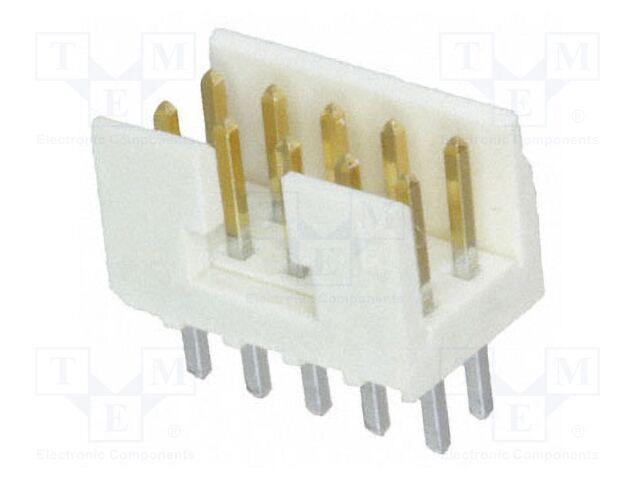

90309-110LF Amphenol ICC (FCI)

Description: CONN HEADER VERT 10POS 2MM, Features: Keying Slot, Packaging: Bulk, Connector Type: Header, Voltage Rating: 200V (AC/DC), Current Rating (Amps): 2A (AC/DC), Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 2, Style: Board to Board, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Cream, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, GXT™, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.122" (3.10mm), Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 2 Wall, Insulation Material: Thermoplastic, Row Spacing - Mating: 0.079" (2.00mm), Contact Length - Mating: 0.157" (4.00mm).
