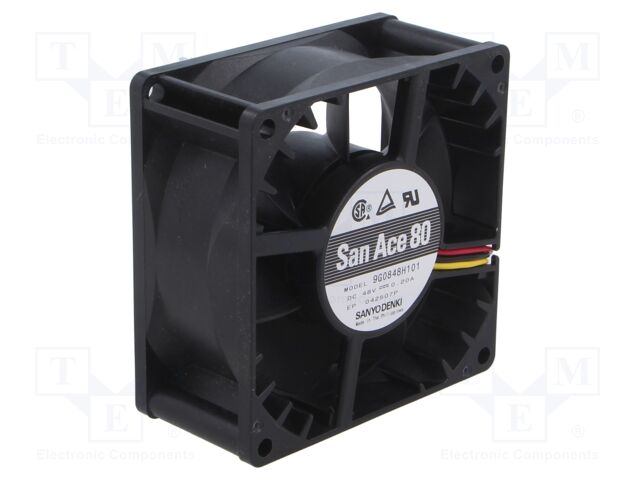

9G0848H101 Sanyo Denki America Inc.
Виробник: Sanyo Denki America Inc.
Description: FAN AXIAL 80X38MM 48VDC WIRE
Features: Locked Rotor Protection, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 48VDC
Size / Dimension: Square - 80mm L x 80mm H
Bearing Type: Ball
RPM: 5700 RPM
Air Flow: 80.0 CFM (2.24m³/min)
Width: 38.00mm
Weight: 0.375 lb (170.1 g)
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Termination: 3 Wire Leads
Approval Agency: CSA, TUV, UL
Fan Type: Tubeaxial
Noise: 49.0dB(A)
Static Pressure: 0.687 in H2O (171.1 Pa)
Power (Watts): 9.6 W
| Кількість | Ціна |
|---|---|
| 1+ | 1887.96 грн |
| 10+ | 1660.67 грн |
| 27+ | 1597.65 грн |
| 54+ | 1400.70 грн |
| 108+ | 1292.20 грн |
Відгуки про товар
Написати відгук
Технічний опис 9G0848H101 Sanyo Denki America Inc.
Category: DC48V Fans, Description: Fan: DC; axial; 48VDC; 80x80x38mm; 136.8m3/h; 49dBA; ball; 5700rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 48V DC, Fan dimensions: 80x80x38mm, Power consumption: 9.6W, Current rating: 0.2A, Fan efficiency: 136.8m3/h, Noise level: 49dBA, Kind of Bearing: ball, Rotational rate/speed: 5700rpm, Min. insulation resistance: 10MΩ, Impeller material: plastic, Enclosure material: plastic, Leads: leads x3, Lead length: 0.3m, Operating temperature: -20...70°C, Flammability rating: UL94V-0, Additional functions: lock sensor; reverse polarity protection, Kind of material: flame retardant, Operating voltage: 40.8...55.2V DC.
Інші пропозиції 9G0848H101 за ціною від 1529.47 грн до 2210.33 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9G0848H101 | SANYO DENKI |
Category: DC48V Fans Description: Fan: DC; axial; 48VDC; 80x80x38mm; 136.8m3/h; 49dBA; ball; 5700rpm Type of fan: DC Kind of fan: axial Supply voltage: 48V DC Fan dimensions: 80x80x38mm Power consumption: 9.6W Current rating: 0.2A Fan efficiency: 136.8m3/h Noise level: 49dBA Kind of Bearing: ball Rotational rate/speed: 5700rpm Min. insulation resistance: 10MΩ Impeller material: plastic Enclosure material: plastic Leads: leads x3 Lead length: 0.3m Operating temperature: -20...70°C Flammability rating: UL94V-0 Additional functions: lock sensor; reverse polarity protection Kind of material: flame retardant Operating voltage: 40.8...55.2V DC |
на замовлення 42 шт: термін постачання 14-30 дні (днів) |
|
||||||
 |
9G0848H101 | Sanyo Denki |
DC Fans DC Axial Fan, 80x80x38mm, 48VDC, High Performance, Tachometer |
на замовлення 64 шт: термін постачання 21-30 дні (днів) |
|
| 9G0848H101 |
|
Виробник: SANYO DENKI
Category: DC48V Fans
Description: Fan: DC; axial; 48VDC; 80x80x38mm; 136.8m3/h; 49dBA; ball; 5700rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 48V DC
Fan dimensions: 80x80x38mm
Power consumption: 9.6W
Current rating: 0.2A
Fan efficiency: 136.8m3/h
Noise level: 49dBA
Kind of Bearing: ball
Rotational rate/speed: 5700rpm
Min. insulation resistance: 10MΩ
Impeller material: plastic
Enclosure material: plastic
Leads: leads x3
Lead length: 0.3m
Operating temperature: -20...70°C
Flammability rating: UL94V-0
Additional functions: lock sensor; reverse polarity protection
Kind of material: flame retardant
Operating voltage: 40.8...55.2V DC
Category: DC48V Fans
Description: Fan: DC; axial; 48VDC; 80x80x38mm; 136.8m3/h; 49dBA; ball; 5700rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 48V DC
Fan dimensions: 80x80x38mm
Power consumption: 9.6W
Current rating: 0.2A
Fan efficiency: 136.8m3/h
Noise level: 49dBA
Kind of Bearing: ball
Rotational rate/speed: 5700rpm
Min. insulation resistance: 10MΩ
Impeller material: plastic
Enclosure material: plastic
Leads: leads x3
Lead length: 0.3m
Operating temperature: -20...70°C
Flammability rating: UL94V-0
Additional functions: lock sensor; reverse polarity protection
Kind of material: flame retardant
Operating voltage: 40.8...55.2V DC
на замовлення 42 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 2083.15 грн |
| 10+ | 1656.93 грн |
| 27+ | 1582.27 грн |
| 9G0848H101 |
|
Виробник: Sanyo Denki
DC Fans DC Axial Fan, 80x80x38mm, 48VDC, High Performance, Tachometer
DC Fans DC Axial Fan, 80x80x38mm, 48VDC, High Performance, Tachometer
на замовлення 64 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 2210.33 грн |
| 10+ | 1878.04 грн |
| 27+ | 1529.47 грн |
