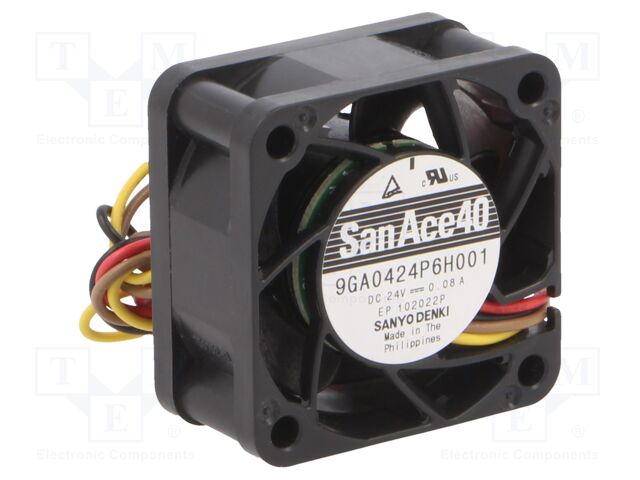

9GA0424P6H001 Sanyo Denki America Inc.
Виробник: Sanyo Denki America Inc.
Description: FAN AXIAL 40X20MM 24VDC WIRE
Features: PWM Control, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Ball
RPM: 12400 RPM
Air Flow: 11.7 CFM (0.328m³/min)
Width: 20.00mm
Weight: 0.077 lb (34.93 g)
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Termination: 4 Wire Leads
Approval Agency: CSA, TUV, UL
Fan Type: Tubeaxial
Noise: 40.0dB(A)
Static Pressure: 0.770 in H2O (191.8 Pa)
Part Status: Active
Power (Watts): 1.92 W
| Кількість | Ціна |
|---|---|
| 1+ | 1171.95 грн |
| 10+ | 926.66 грн |
| 25+ | 850.00 грн |
| 70+ | 722.43 грн |
Відгуки про товар
Написати відгук
Технічний опис 9GA0424P6H001 Sanyo Denki America Inc.
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 40x40x20mm; 19.8m3/h; 40dBA; ball; 12400rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 20.4...27.6V DC, Fan dimensions: 40x40x20mm, Power consumption: 1.92W, Current rating: 80mA, Fan efficiency: 19.8m3/h, Noise level: 40dBA, Kind of Bearing: ball, Rotational rate/speed: 12400rpm, Impeller material: plastic, Enclosure material: plastic, Leads: leads x4, Operating temperature: -20...70°C, Flammability rating: UL94V-0, Additional functions: lock sensor; PWM; reverse polarity protection, Min. insulation resistance: 10MΩ, Kind of material: flame retardant, Lead length: 0.32m.
Інші пропозиції 9GA0424P6H001
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
|---|---|---|---|---|---|
 |
9GA0424P6H001 | Sanyo Denki |
DC Fans DC Axial Fan, 40x40x20mm, 24VDC, High Performance, Low Power, Tachometer, PWM |
товару немає в наявності |
В кошику од. на суму грн. |
 |
9GA0424P6H001 | SANYO DENKI |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 40x40x20mm; 19.8m3/h; 40dBA; ball; 12400rpm Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 20.4...27.6V DC Fan dimensions: 40x40x20mm Power consumption: 1.92W Current rating: 80mA Fan efficiency: 19.8m3/h Noise level: 40dBA Kind of Bearing: ball Rotational rate/speed: 12400rpm Impeller material: plastic Enclosure material: plastic Leads: leads x4 Operating temperature: -20...70°C Flammability rating: UL94V-0 Additional functions: lock sensor; PWM; reverse polarity protection Min. insulation resistance: 10MΩ Kind of material: flame retardant Lead length: 0.32m |
товару немає в наявності |
В кошику од. на суму грн. |
| 9GA0424P6H001 |
|
Виробник: Sanyo Denki
DC Fans DC Axial Fan, 40x40x20mm, 24VDC, High Performance, Low Power, Tachometer, PWM
DC Fans DC Axial Fan, 40x40x20mm, 24VDC, High Performance, Low Power, Tachometer, PWM
товару немає в наявності
В кошику
од. на суму грн.
| 9GA0424P6H001 |
|
Виробник: SANYO DENKI
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 40x40x20mm; 19.8m3/h; 40dBA; ball; 12400rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 20.4...27.6V DC
Fan dimensions: 40x40x20mm
Power consumption: 1.92W
Current rating: 80mA
Fan efficiency: 19.8m3/h
Noise level: 40dBA
Kind of Bearing: ball
Rotational rate/speed: 12400rpm
Impeller material: plastic
Enclosure material: plastic
Leads: leads x4
Operating temperature: -20...70°C
Flammability rating: UL94V-0
Additional functions: lock sensor; PWM; reverse polarity protection
Min. insulation resistance: 10MΩ
Kind of material: flame retardant
Lead length: 0.32m
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 40x40x20mm; 19.8m3/h; 40dBA; ball; 12400rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 20.4...27.6V DC
Fan dimensions: 40x40x20mm
Power consumption: 1.92W
Current rating: 80mA
Fan efficiency: 19.8m3/h
Noise level: 40dBA
Kind of Bearing: ball
Rotational rate/speed: 12400rpm
Impeller material: plastic
Enclosure material: plastic
Leads: leads x4
Operating temperature: -20...70°C
Flammability rating: UL94V-0
Additional functions: lock sensor; PWM; reverse polarity protection
Min. insulation resistance: 10MΩ
Kind of material: flame retardant
Lead length: 0.32m
