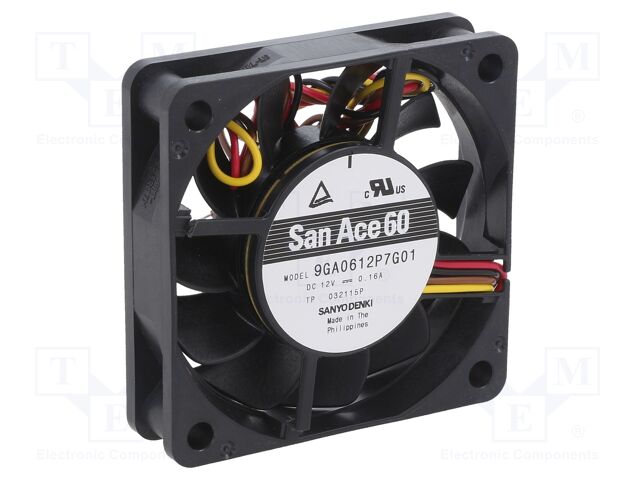

9GA0612P7G01 SANYO DENKI
Виробник: SANYO DENKI
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x15mm; 40.8m3/h; 38dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V
Fan dimensions: 60x60x15mm
Power consumption: 1.92W
Current rating: 0.16A
Fan efficiency: 40.8m3/h
Noise level: 38dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 5900rpm
Min. insulation resistance: 10MΩ
Impeller material: plastic
Enclosure material: plastic
Leads: lead x4
Operating temperature: -20...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: lock sensor; PWM; reverse polarity protection
Kind of material: flame retardant
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x15mm; 40.8m3/h; 38dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V
Fan dimensions: 60x60x15mm
Power consumption: 1.92W
Current rating: 0.16A
Fan efficiency: 40.8m3/h
Noise level: 38dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 5900rpm
Min. insulation resistance: 10MΩ
Impeller material: plastic
Enclosure material: plastic
Leads: lead x4
Operating temperature: -20...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: lock sensor; PWM; reverse polarity protection
Kind of material: flame retardant
на замовлення 490 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 768.4 грн |
10+ | 680.83 грн |
20+ | 664.83 грн |
Відгуки про товар
Написати відгук
Технічний опис 9GA0612P7G01 SANYO DENKI
Description: SANYO DENKI - 9GA0612P7G01 - DC-Axiallüfter, 12 V, Quadratisch, 60 mm, 15 mm, Kugellager, 24 cu.ft/min, tariffCode: 84145925, Versorgungsspannung: 12VDC, Stromanschluss: 4 Anschlussdrähte, rohsCompliant: Y-EX, hazardous: false, rohsPhthalatesCompliant: YES, Luftdurchsatz, imperial: 24cu.ft/min, Luftdurchsatz, metrisch: 0.68m³/min, Art des Lagers: Kugellager, Nennleistung: 1.92W, IP-Schutzart: -, usEccn: EAR99, Spannungstyp: DC, Luftstrom - m3/min: 0.68m³/min, Nennstrom: 160mA, Außentiefe: 15mm, Geräuschentwicklung: 38dBA, euEccn: NLR, Luftstrom - CFM: 24cu.ft/min, Lüfterrahmen: Quadratisch, Produktpalette: San Ace 60 GA, productTraceability: No, Rahmengröße: 60mm, Versorgungsspannung, V DC: 12V, Nenndrehzahl: 5900rpm, SVHC: Lead (17-Jan-2023).
Інші пропозиції 9GA0612P7G01 за ціною від 783.8 грн до 2264 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9GA0612P7G01 | Виробник : SANYO DENKI |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 60x60x15mm; 40.8m3/h; 38dBA; ball bearing Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 10.2...13.8V Fan dimensions: 60x60x15mm Power consumption: 1.92W Current rating: 0.16A Fan efficiency: 40.8m3/h Noise level: 38dBA Kind of Bearing: ball bearing Rotational rate/speed: 5900rpm Min. insulation resistance: 10MΩ Impeller material: plastic Enclosure material: plastic Leads: lead x4 Operating temperature: -20...70°C Cable length: 0.3m Flammability rating: UL94V-0 Additional functions: lock sensor; PWM; reverse polarity protection Kind of material: flame retardant кількість в упаковці: 1 шт |
на замовлення 490 шт: термін постачання 7-14 дні (днів) |
|
|||||||||||||||||
9GA0612P7G01 | Виробник : Sanyo Denki America Inc. |
Description: FAN AXIAL 60X15MM 12VDC WIRE Features: PWM Control, Speed Sensor (Tach) Packaging: Box Voltage - Rated: 12VDC Size / Dimension: Square - 60mm L x 60mm H Bearing Type: Ball RPM: 5900 RPM Air Flow: 24.0 CFM (0.672m³/min) Width: 15.00mm Weight: 0.111 lb (50.35 g) Operating Temperature: -4 ~ 158°F (-20 ~ 70°C) Termination: 4 Wire Leads Approval Agency: CSA, TUV, UL Fan Type: Tubeaxial Noise: 38.0dB(A) Static Pressure: 0.319 in H2O (79.5 Pa) Power (Watts): 1.92 W |
на замовлення 2530 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||
9GA0612P7G01 | Виробник : Sanyo Denki | DC Fans DC Axial Fan, 60x60x15mm, 12VDC, Low Power, Tachometer, PWM |
на замовлення 200 шт: термін постачання 233-242 дні (днів) |
|
|||||||||||||||||
9GA0612P7G01 | Виробник : SANYO DENKI |
Description: SANYO DENKI - 9GA0612P7G01 - DC-Axiallüfter, 12 V, Quadratisch, 60 mm, 15 mm, Kugellager, 24 cu.ft/min tariffCode: 84145925 Versorgungsspannung: 12VDC Stromanschluss: 4 Anschlussdrähte rohsCompliant: Y-EX hazardous: false rohsPhthalatesCompliant: YES Luftdurchsatz, imperial: 24cu.ft/min Luftdurchsatz, metrisch: 0.68m³/min Art des Lagers: Kugellager Nennleistung: 1.92W IP-Schutzart: - usEccn: EAR99 Spannungstyp: DC Luftstrom - m3/min: 0.68m³/min Nennstrom: 160mA Außentiefe: 15mm Geräuschentwicklung: 38dBA euEccn: NLR Luftstrom - CFM: 24cu.ft/min Lüfterrahmen: Quadratisch Produktpalette: San Ace 60 GA productTraceability: No Rahmengröße: 60mm Versorgungsspannung, V DC: 12V Nenndrehzahl: 5900rpm SVHC: Lead (17-Jan-2023) |
на замовлення 117 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||
9GA0612P7G01 | Виробник : Sanyo Denki | DC Fan Axial Ball Bearing 12V 10.2V to 13.8V 24CFM 38dB 60 X 60 X 15mm |
товар відсутній |
