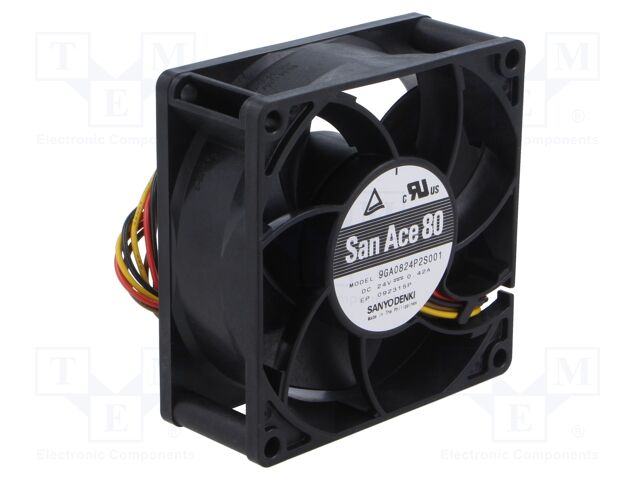

9GA0824P2S001 Sanyo Denki America Inc.
Виробник: Sanyo Denki America Inc.Description: FAN AXIAL 80X32MM 24VDC WIRE
Features: PWM Control, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 80mm L x 80mm H
Bearing Type: Ball
RPM: 9700 RPM
Air Flow: 86.5 CFM (2.42m³/min)
Width: 32.00mm
Weight: 0.287 lb (130.18 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 4 Wire Leads
Approval Agency: CSA, TUV, UL
Fan Type: Tubeaxial
Noise: 57.0dB(A)
Static Pressure: 1.450 in H2O (361.2 Pa)
Power (Watts): 10.1 W
на замовлення 116 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 2460.05 грн |
| 10+ | 2163.96 грн |
| 32+ | 2081.79 грн |
| 64+ | 1825.14 грн |
Відгуки про товар
Написати відгук
Технічний опис 9GA0824P2S001 Sanyo Denki America Inc.
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 80x80x32mm; 147m3/h; 57dBA; ball; 9700rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 20.4...27.6V DC, Fan dimensions: 80x80x32mm, Power consumption: 10.1W, Current rating: 420mA, Fan efficiency: 147m3/h, Noise level: 57dBA, Kind of Bearing: ball, Rotational rate/speed: 9700rpm, Min. insulation resistance: 10MΩ, Impeller material: plastic, Enclosure material: plastic, Leads: leads x4, Lead length: 0.3m, Operating temperature: -20...70°C, Flammability rating: UL94V-0, Additional functions: lock sensor; PWM; reverse polarity protection, Kind of material: flame retardant, кількість в упаковці: 1 шт.
Інші пропозиції 9GA0824P2S001 за ціною від 2266.65 грн до 4634.49 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9GA0824P2S001 | Виробник : Sanyo Denki |
DC Fans DC Axial Fan, 80x80x32mm, 24VDC, Low Power, Tachometer, PWM |
на замовлення 1 шт: термін постачання 21-30 дні (днів) |
|
||||||||||
 |
9GA0824P2S001 | Виробник : SANYO DENKI |
Description: SANYO DENKI - 9GA0824P2S001 - DC-Axiallüfter, 24 V, Quadratisch, 80 mm, 32 mm, Kugellager, 85.6 cu.ft/min tariffCode: 84145925 Stromanschluss: 4 Anschlussdrähte rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Art des Lagers: Kugellager Nennleistung: 10.1W IP-Schutzart: - usEccn: EAR99 Luftstrom - m3/min: 0.71m³/min Nennstrom: 420mA Außentiefe: 32mm Geräuschentwicklung: 57dBA euEccn: NLR Luftstrom - CFM: 85.6cu.ft/min Lüfterrahmen: Quadratisch Produktpalette: San Ace 80 GA productTraceability: No Rahmengröße: 80mm Versorgungsspannung, V DC: 24V Nenndrehzahl: 9700rpm SVHC: Lead (21-Jan-2025) |
на замовлення 39 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
9GA0824P2S001 | Виробник : SANYO DENKI |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 80x80x32mm; 147m3/h; 57dBA; ball; 9700rpm Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 20.4...27.6V DC Fan dimensions: 80x80x32mm Power consumption: 10.1W Current rating: 420mA Fan efficiency: 147m3/h Noise level: 57dBA Kind of Bearing: ball Rotational rate/speed: 9700rpm Min. insulation resistance: 10MΩ Impeller material: plastic Enclosure material: plastic Leads: leads x4 Lead length: 0.3m Operating temperature: -20...70°C Flammability rating: UL94V-0 Additional functions: lock sensor; PWM; reverse polarity protection Kind of material: flame retardant кількість в упаковці: 1 шт |
товару немає в наявності |
|||||||||||
|
|
9GA0824P2S001 | Виробник : SANYO DENKI |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 80x80x32mm; 147m3/h; 57dBA; ball; 9700rpm Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 20.4...27.6V DC Fan dimensions: 80x80x32mm Power consumption: 10.1W Current rating: 420mA Fan efficiency: 147m3/h Noise level: 57dBA Kind of Bearing: ball Rotational rate/speed: 9700rpm Min. insulation resistance: 10MΩ Impeller material: plastic Enclosure material: plastic Leads: leads x4 Lead length: 0.3m Operating temperature: -20...70°C Flammability rating: UL94V-0 Additional functions: lock sensor; PWM; reverse polarity protection Kind of material: flame retardant |
товару немає в наявності |
