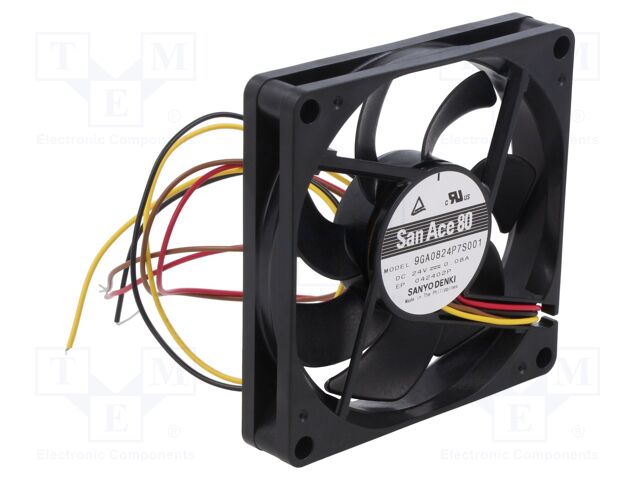

9GA0824P7S001 SANYO DENKI
Виробник: SANYO DENKI
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x15mm; 70.8m3/h; 37dBA; ball; 5000rpm
Supply voltage: 24V DC
Current rating: 80mA
Enclosure material: plastic
Kind of Bearing: ball
Leads: leads x4
Fan dimensions: 80x80x15mm
Min. insulation resistance: 10MΩ
Kind of material: flame retardant
Power consumption: 1.92W
Impeller material: plastic
Type of fan: DC
Noise level: 37dBA
Additional functions: lock sensor; PWM; reverse polarity protection
Lead length: 0.3m
Operating voltage: 20.4...27.6V DC
Kind of fan: axial
Flammability rating: UL94V-0
Fan efficiency: 70.8m3/h
Operating temperature: -20...70°C
Rotational rate/speed: 5000rpm
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1532.95 грн |
| 10+ | 1299.27 грн |
Відгуки про товар
Написати відгук
Технічний опис 9GA0824P7S001 SANYO DENKI
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 80x80x15mm; 70.8m3/h; 37dBA; ball; 5000rpm, Supply voltage: 24V DC, Current rating: 80mA, Enclosure material: plastic, Kind of Bearing: ball, Leads: leads x4, Fan dimensions: 80x80x15mm, Min. insulation resistance: 10MΩ, Kind of material: flame retardant, Power consumption: 1.92W, Impeller material: plastic, Type of fan: DC, Noise level: 37dBA, Additional functions: lock sensor; PWM; reverse polarity protection, Lead length: 0.3m, Operating voltage: 20.4...27.6V DC, Kind of fan: axial, Flammability rating: UL94V-0, Fan efficiency: 70.8m3/h, Operating temperature: -20...70°C, Rotational rate/speed: 5000rpm.
Інші пропозиції 9GA0824P7S001 за ціною від 1382.24 грн до 1753.83 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
9GA0824P7S001 | Sanyo Denki America Inc. |
Description: FAN AXIAL 80X15MM 24VDC WIRE Features: PWM Control, Speed Sensor (Tach) Packaging: Box Voltage - Rated: 24VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Ball RPM: 5000 RPM Air Flow: 41.7 CFM (1.17m³/min) Width: 15.00mm Weight: 0.143 lb (64.86 g) Operating Temperature: -4 ~ 158°F (-20 ~ 70°C) Termination: 4 Wire Leads Approval Agency: CSA, TUV, UL Fan Type: Tubeaxial Noise: 37.0dB(A) Static Pressure: 0.226 in H2O (56.4 Pa) Power (Watts): 1.92 W |
на замовлення 32 шт: термін постачання 21-31 дні (днів) |
|
||||
 |
9GA0824P7S001 | Sanyo Denki |
DC Fans DC Axial Fan, 80x80x15mm, 24VDC, High Performance, Low Power, Tachometer, PWM |
на замовлення 47 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| 9GA0824P7S001 |
|
Виробник: Sanyo Denki America Inc.
Description: FAN AXIAL 80X15MM 24VDC WIRE
Features: PWM Control, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 80mm L x 80mm H
Bearing Type: Ball
RPM: 5000 RPM
Air Flow: 41.7 CFM (1.17m³/min)
Width: 15.00mm
Weight: 0.143 lb (64.86 g)
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Termination: 4 Wire Leads
Approval Agency: CSA, TUV, UL
Fan Type: Tubeaxial
Noise: 37.0dB(A)
Static Pressure: 0.226 in H2O (56.4 Pa)
Power (Watts): 1.92 W
Description: FAN AXIAL 80X15MM 24VDC WIRE
Features: PWM Control, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 80mm L x 80mm H
Bearing Type: Ball
RPM: 5000 RPM
Air Flow: 41.7 CFM (1.17m³/min)
Width: 15.00mm
Weight: 0.143 lb (64.86 g)
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Termination: 4 Wire Leads
Approval Agency: CSA, TUV, UL
Fan Type: Tubeaxial
Noise: 37.0dB(A)
Static Pressure: 0.226 in H2O (56.4 Pa)
Power (Watts): 1.92 W
на замовлення 32 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1753.83 грн |
| 10+ | 1382.24 грн |
| 9GA0824P7S001 |
|
Виробник: Sanyo Denki
DC Fans DC Axial Fan, 80x80x15mm, 24VDC, High Performance, Low Power, Tachometer, PWM
DC Fans DC Axial Fan, 80x80x15mm, 24VDC, High Performance, Low Power, Tachometer, PWM
на замовлення 47 шт:
термін постачання 21-30 дні (днів)
