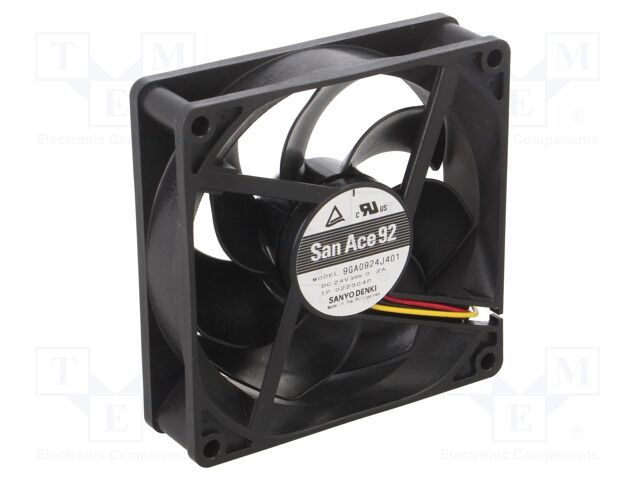

9GA0924J401 SANYO DENKI
Виробник: SANYO DENKI
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 92x92x25mm; 132m3/h; 43dBA; ball; 5000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 20.4...27.6V DC
Fan dimensions: 92x92x25mm
Power consumption: 4.8W
Current rating: 0.2A
Fan efficiency: 132m3/h
Noise level: 43dBA
Kind of Bearing: ball
Rotational rate/speed: 5000rpm
Min. insulation resistance: 10MΩ
Impeller material: plastic
Enclosure material: plastic
Leads: leads x3
Lead length: 0.3m
Operating temperature: -20...70°C
Flammability rating: UL94V-0
Additional functions: reverse polarity protection
Kind of material: flame retardant
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1997.82 грн |
| 10+ | 1841.41 грн |
Відгуки про товар
Написати відгук
Технічний опис 9GA0924J401 SANYO DENKI
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 92x92x25mm; 132m3/h; 43dBA; ball; 5000rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 20.4...27.6V DC, Fan dimensions: 92x92x25mm, Power consumption: 4.8W, Current rating: 0.2A, Fan efficiency: 132m3/h, Noise level: 43dBA, Kind of Bearing: ball, Rotational rate/speed: 5000rpm, Min. insulation resistance: 10MΩ, Impeller material: plastic, Enclosure material: plastic, Leads: leads x3, Lead length: 0.3m, Operating temperature: -20...70°C, Flammability rating: UL94V-0, Additional functions: reverse polarity protection, Kind of material: flame retardant.
Інші пропозиції 9GA0924J401 за ціною від 1570.43 грн до 2117.24 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9GA0924J401 | Sanyo Denki America Inc. |
Description: FAN AXIAL 92X25.2MM 24VDC WIRE Power (Watts): 4.8 W Part Status: Active Static Pressure: 0.420 in H2O (104.6 Pa) Noise: 43.0dB(A) Fan Type: Tubeaxial Approval Agency: CSA, TUV, UL Termination: 3 Wire Leads Operating Temperature: -4 ~ 158°F (-20 ~ 70°C) Weight: 0.276 lb (125.19 g) Width: 25.20mm Air Flow: 77.7 CFM (2.18m³/min) RPM: 5000 RPM Bearing Type: Ball Size / Dimension: Square - 92mm L x 92mm H Voltage - Rated: 24VDC Features: Locked Rotor Protection, Speed Sensor (Tach) Packaging: Box |
на замовлення 50 шт: термін постачання 21-31 дні (днів) |
|
||||||||
 |
9GA0924J401 | Sanyo Denki |
DC Fans DC Axial Fan, 92x92x25mm, 24VDC, High Performance, Low Power, Tachometer |
на замовлення 72 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| 9GA0924J401 |
|
Виробник: Sanyo Denki America Inc.
Description: FAN AXIAL 92X25.2MM 24VDC WIRE
Power (Watts): 4.8 W
Part Status: Active
Static Pressure: 0.420 in H2O (104.6 Pa)
Noise: 43.0dB(A)
Fan Type: Tubeaxial
Approval Agency: CSA, TUV, UL
Termination: 3 Wire Leads
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Weight: 0.276 lb (125.19 g)
Width: 25.20mm
Air Flow: 77.7 CFM (2.18m³/min)
RPM: 5000 RPM
Bearing Type: Ball
Size / Dimension: Square - 92mm L x 92mm H
Voltage - Rated: 24VDC
Features: Locked Rotor Protection, Speed Sensor (Tach)
Packaging: Box
Description: FAN AXIAL 92X25.2MM 24VDC WIRE
Power (Watts): 4.8 W
Part Status: Active
Static Pressure: 0.420 in H2O (104.6 Pa)
Noise: 43.0dB(A)
Fan Type: Tubeaxial
Approval Agency: CSA, TUV, UL
Termination: 3 Wire Leads
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Weight: 0.276 lb (125.19 g)
Width: 25.20mm
Air Flow: 77.7 CFM (2.18m³/min)
RPM: 5000 RPM
Bearing Type: Ball
Size / Dimension: Square - 92mm L x 92mm H
Voltage - Rated: 24VDC
Features: Locked Rotor Protection, Speed Sensor (Tach)
Packaging: Box
на замовлення 50 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 2117.24 грн |
| 10+ | 1861.92 грн |
| 25+ | 1791.27 грн |
| 50+ | 1570.43 грн |
| 9GA0924J401 |
|
Виробник: Sanyo Denki
DC Fans DC Axial Fan, 92x92x25mm, 24VDC, High Performance, Low Power, Tachometer
DC Fans DC Axial Fan, 92x92x25mm, 24VDC, High Performance, Low Power, Tachometer
на замовлення 72 шт:
термін постачання 21-30 дні (днів)
