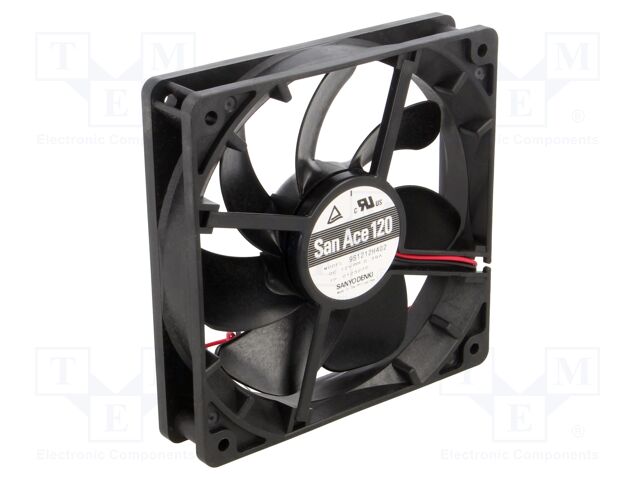

9S1212H402 SANYO DENKI
Виробник: SANYO DENKI
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 120x120x25mm; 147m3/h; 36dBA; ball; 2700rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 5...13.2V DC
Fan dimensions: 120x120x25mm
Power consumption: 4.68W
Fan efficiency: 147m3/h
Noise level: 36dBA
Kind of Bearing: ball
Rotational rate/speed: 2700rpm
Impeller material: plastic
Enclosure material: plastic
Leads: leads x2
Lead length: 0.3m
Additional functions: lock sensor; reverse polarity protection
Min. insulation resistance: 10MΩ
Kind of material: flame retardant
Flammability rating: UL94V-1
Operating temperature: -10...60°C
Current rating: 0.39A
| Кількість | Ціна |
|---|---|
| 1+ | 2385.26 грн |
| 10+ | 1510.00 грн |
| 30+ | 1454.87 грн |
Відгуки про товар
Написати відгук
Технічний опис 9S1212H402 SANYO DENKI
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 120x120x25mm; 147m3/h; 36dBA; ball; 2700rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 5...13.2V DC, Fan dimensions: 120x120x25mm, Power consumption: 4.68W, Fan efficiency: 147m3/h, Noise level: 36dBA, Kind of Bearing: ball, Rotational rate/speed: 2700rpm, Impeller material: plastic, Enclosure material: plastic, Leads: leads x2, Lead length: 0.3m, Additional functions: lock sensor; reverse polarity protection, Min. insulation resistance: 10MΩ, Kind of material: flame retardant, Flammability rating: UL94V-1, Operating temperature: -10...60°C, Current rating: 0.39A.
Інші пропозиції 9S1212H402
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
9S1212H402 | Виробник : Sanyo Denki America Inc. |
Description: FAN AXIAL 119X25MM 12VDC WIRE Packaging: Box Voltage - Rated: 12VDC Size / Dimension: Square - 119mm L x 119mm H Bearing Type: Ball RPM: 2700 RPM Air Flow: 86.5 CFM (2.42m³/min) Width: 25.00mm Weight: 0.309 lb (140.16 g) Operating Temperature: 14 ~ 140°F (-10 ~ 60°C) Termination: 2 Wire Leads Approval Agency: CSA, TUV, UL Fan Type: Tubeaxial Noise: 36.0dB(A) Static Pressure: 0.180 in H2O (44.8 Pa) Part Status: Active Power (Watts): 4.68 W |
товару немає в наявності |
|
 |
9S1212H402 | Виробник : Sanyo Denki |
DC Fans DC Axial Fan, 120x120x25mm, 12VDC, Silent Series |
товару немає в наявності |
