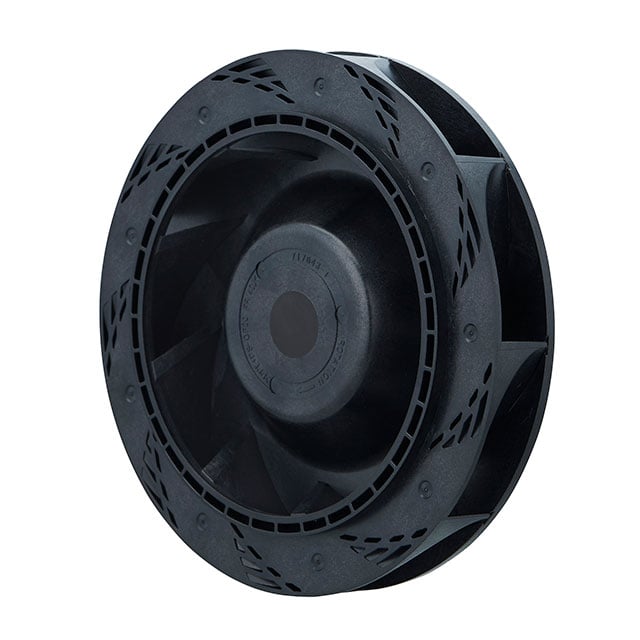

9W2TN24P1H001 Sanyo Denki America Inc.
Виробник: Sanyo Denki America Inc.Description: FAN IMP MTRZD 150X35MM 24VDC
Packaging: Box
Features: PWM Control, Speed Sensor (Tach)
Voltage - Rated: 24VDC
Size / Dimension: Round - 150mm Dia
Bearing Type: Ball
RPM: 3800 RPM
Air Flow: 135.0 CFM (3.78m³/min)
Width: 35.00mm
Weight: 0.86 lb (390.09 g)
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Termination: 4 Wire Leads
Approval Agency: cURus, TUV
Ingress Protection: IP68 - Dust Tight, Waterproof
Fan Type: Motorized Impellers
Noise: 59.0dB(A)
Static Pressure: 1.578 in H2O (393.1 Pa)
Part Status: Active
Power (Watts): 15.4 W
на замовлення 6 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 13112.21 грн |
Відгуки про товар
Написати відгук
Технічний опис 9W2TN24P1H001 Sanyo Denki America Inc.
Category: DC24V Fans, Description: Fan: DC; radial; 24VDC; Ø150x35mm; 229.8m3/h; 59dBA; ball; 3800rpm, Leads: leads x4, Additional functions: lock sensor; PWM; reverse polarity protection, Impeller material: plastic, Kind of fan: radial, Flammability rating: UL94V-0, Operating temperature: -20...70°C, Fan dimensions: Ø150x35mm, Lead length: 0.3m, Current rating: 640mA, Power consumption: 15.4W, Operating voltage: 20.4...27.6V DC, Supply voltage: 24V DC, Noise level: 59dBA, Fan efficiency: 229.8m3/h, Rotational rate/speed: 3800rpm, Min. insulation resistance: 10MΩ, Enclosure material: aluminium, Kind of Bearing: ball, Type of fan: DC, IP rating: IP68.
Інші пропозиції 9W2TN24P1H001 за ціною від 13081.43 грн до 14763.34 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9W2TN24P1H001 | Виробник : Sanyo Denki |
Blowers & Centrifugal Fans Fan, 150x35mm, 24VDC, Splashproof, Ribless, Tach/PWM, Need 109-1081 or 109-1081H |
на замовлення 1 шт: термін постачання 21-30 дні (днів) |
|
||||||
| 9W2TN24P1H001 | Виробник : SANYO DENKI |
Category: DC24V Fans Description: Fan: DC; radial; 24VDC; Ø150x35mm; 229.8m3/h; 59dBA; ball; 3800rpm Leads: leads x4 Additional functions: lock sensor; PWM; reverse polarity protection Impeller material: plastic Kind of fan: radial Flammability rating: UL94V-0 Operating temperature: -20...70°C Fan dimensions: Ø150x35mm Lead length: 0.3m Current rating: 640mA Power consumption: 15.4W Operating voltage: 20.4...27.6V DC Supply voltage: 24V DC Noise level: 59dBA Fan efficiency: 229.8m3/h Rotational rate/speed: 3800rpm Min. insulation resistance: 10MΩ Enclosure material: aluminium Kind of Bearing: ball Type of fan: DC IP rating: IP68 |
товару немає в наявності |
