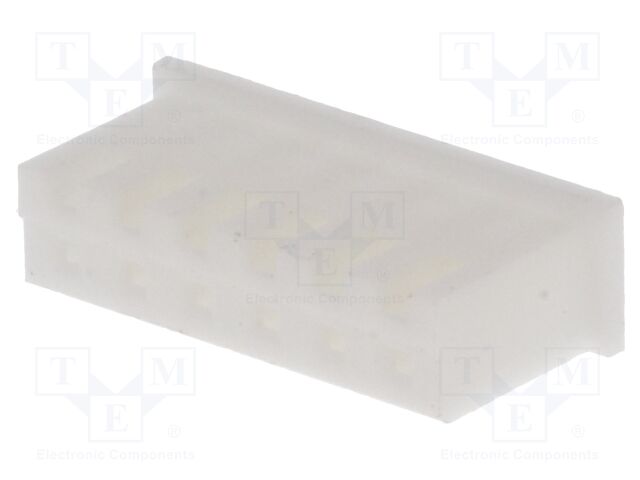

A2501H-6P JOINT TECH

pVersion=0046&contRep=ZT&docId=005056AB752F1EE383C65536B5796CAD&compId=A2501H-XP.pdf?ci_sign=be209e895c568df841f05f6767e837b2e8178e88

Виробник: JOINT TECH
Category: Raster signal connectors 2,50mm
Description: Connector: wire-board; plug; female; PIN: 6; A2501; 3A; 250V; UL94V-0
Type of connector: wire-board
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Current rating: 3A
Contacts pitch: 2.5mm
Max. contact resistance:: 10mΩ
Flammability rating: UL94V-0
Body material: polyamide
Connector variant: w/o contacts
Operating temperature: -25...85°C
Number of pins: 6
Manufacturer series: A2501
Rated voltage: 250V
Connector pinout layout: 1x6

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис A2501H-6P JOINT TECH

Category: Raster signal connectors 2,50mm, Description: Connector: wire-board; plug; female; PIN: 6; A2501; 3A; 250V; UL94V-0, Type of connector: wire-board, Connector: plug, Kind of connector: female, Mechanical mounting: for cable, Current rating: 3A, Contacts pitch: 2.5mm, Max. contact resistance:: 10mΩ, Flammability rating: UL94V-0, Body material: polyamide, Connector variant: w/o contacts, Operating temperature: -25...85°C, Number of pins: 6, Manufacturer series: A2501, Rated voltage: 250V, Connector pinout layout: 1x6.
