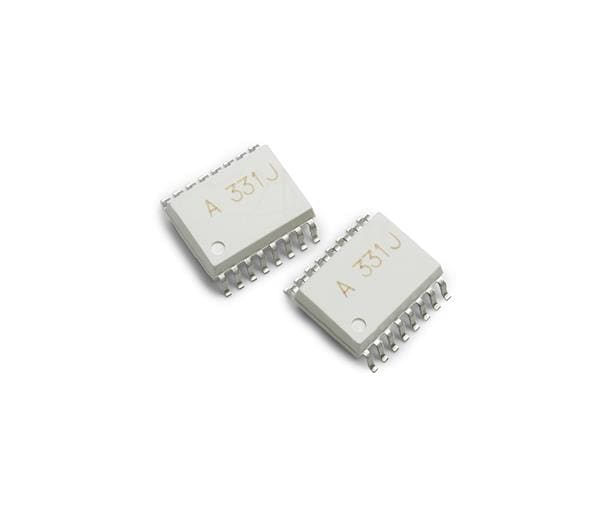

ACPL-331J-500E Broadcom Limited

Description: OPTOISO 5KV 1CH GATE DVR 16SO, Packaging: Tape & Reel (TR), Package / Case: 16-SOIC (0.295", 7.50mm Width), Mounting Type: Surface Mount, Operating Temperature: -40°C ~ 105°C, Voltage - Forward (Vf) (Typ): 1.6V, Current - Peak Output: 1.5A, Technology: Optical Coupling, Current - Output High, Low: 1A, 1A, Voltage - Isolation: 5000Vrms, Approval Agency: CSA, IEC/EN/DIN, UR, Supplier Device Package: 16-SO, Rise / Fall Time (Typ): 50ns, 50ns, Common Mode Transient Immunity (Min): 15kV/µs, Propagation Delay tpLH / tpHL (Max): 250ns, 250ns, Pulse Width Distortion (Max): 100ns, Number of Channels: 1, Current - DC Forward (If) (Max): 25 mA, Voltage - Output Supply: 15V ~ 30V.
