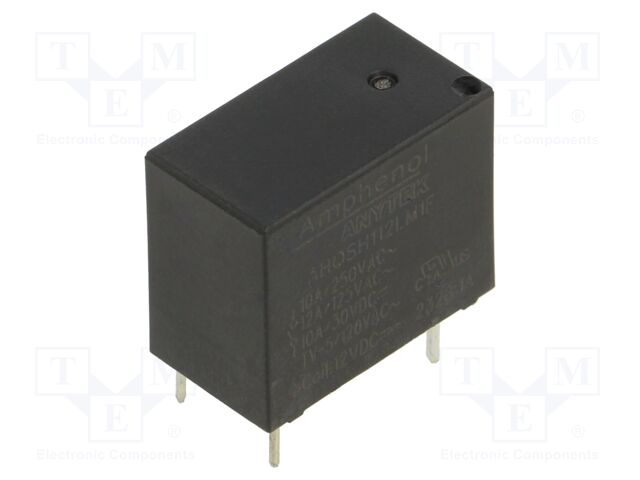

AHQSH112LM1F00G AMPHENOL ANYTEK
Виробник: AMPHENOL ANYTEK
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; Ucoil: 12VDC; SPST-NO; 10A; 10A/250VAC
Contacts configuration: SPST-NO
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 30V DC
Manufacturer series: AHQ
Operating temperature: -40...105°C
Coil power consumption: 200mW
Body dimensions: 10x18.2x14.9mm
Coil voltage: 12V DC
Type of relay: electromagnetic
Mounting: PCB
Coil resistance: 720Ω
Contact material: silver alloy
Contact current max.: 10A
| Кількість | Ціна без ПДВ |
|---|---|
| 9+ | 51.05 грн |
| 10+ | 43.51 грн |
| 25+ | 41.65 грн |
| 100+ | 39.53 грн |
| 250+ | 38.85 грн |
Відгуки про товар
Написати відгук
Технічний опис AHQSH112LM1F00G AMPHENOL ANYTEK
Description: RELAY GEN PURPOSE SPST 10A 12V, Packaging: Box, Mounting Type: Through Hole, Coil Voltage: 12VDC, Operating Temperature: -40°C ~ 105°C, Termination Style: PC Pin, Relay Type: General Purpose, Coil Current: 30 mA, Coil Type: Non Latching, Seal Rating: Sealed - Fully, Contact Material: Silver Alloy, Contact Form: SPST-NO (1 Form A), Contact Rating (Current): 10 A, Switching Voltage: 277VAC, 24VDC - Max, Must Release Voltage: 0.6 VDC, Must Operate Voltage: 9.6 VDC, Operate Time: 10 ms, Release Time: 5 ms, Part Status: Active, Coil Insulation: Class F, Load - Max Switching: 4432VA, 384W.
Інші пропозиції AHQSH112LM1F00G за ціною від 35.29 грн до 60.92 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AHQSH112LM1F00G | Amphenol Anytek |
Description: RELAY GEN PURPOSE SPST 10A 12V Packaging: Box Mounting Type: Through Hole Coil Voltage: 12VDC Operating Temperature: -40°C ~ 105°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 30 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Alloy Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 10 A Switching Voltage: 277VAC, 24VDC - Max Must Release Voltage: 0.6 VDC Must Operate Voltage: 9.6 VDC Operate Time: 10 ms Release Time: 5 ms Part Status: Active Coil Insulation: Class F Load - Max Switching: 4432VA, 384W |
на замовлення 7998 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
 |
AHQSH112LM1F00G | Amphenol Anytek |
General Purpose Relays Commercial RelayRated Carrying Current :10AType of Sealing : Sealed and Waterproof TypeNumber of pole : one poleCoil Voltage : 12VCoil Type : High DCContact Form : Form A Coil Insulation System : F- Class F (155C) |
на замовлення 276 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| AHQSH112LM1F00G |
|
Виробник: Amphenol Anytek
Description: RELAY GEN PURPOSE SPST 10A 12V
Packaging: Box
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 105°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 30 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Alloy
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 10 A
Switching Voltage: 277VAC, 24VDC - Max
Must Release Voltage: 0.6 VDC
Must Operate Voltage: 9.6 VDC
Operate Time: 10 ms
Release Time: 5 ms
Part Status: Active
Coil Insulation: Class F
Load - Max Switching: 4432VA, 384W
Description: RELAY GEN PURPOSE SPST 10A 12V
Packaging: Box
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 105°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 30 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Alloy
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 10 A
Switching Voltage: 277VAC, 24VDC - Max
Must Release Voltage: 0.6 VDC
Must Operate Voltage: 9.6 VDC
Operate Time: 10 ms
Release Time: 5 ms
Part Status: Active
Coil Insulation: Class F
Load - Max Switching: 4432VA, 384W
на замовлення 7998 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 6+ | 60.92 грн |
| 10+ | 52.26 грн |
| 25+ | 49.92 грн |
| 50+ | 45.24 грн |
| 100+ | 43.69 грн |
| 250+ | 41.72 грн |
| 500+ | 39.63 грн |
| 1000+ | 38.27 грн |
| 5000+ | 35.29 грн |
| AHQSH112LM1F00G |
|
Виробник: Amphenol Anytek
General Purpose Relays Commercial RelayRated Carrying Current :10AType of Sealing : Sealed and Waterproof TypeNumber of pole : one poleCoil Voltage : 12VCoil Type : High DCContact Form : Form A Coil Insulation System : F- Class F (155C)
General Purpose Relays Commercial RelayRated Carrying Current :10AType of Sealing : Sealed and Waterproof TypeNumber of pole : one poleCoil Voltage : 12VCoil Type : High DCContact Form : Form A Coil Insulation System : F- Class F (155C)
на замовлення 276 шт:
термін постачання 21-30 дні (днів)
