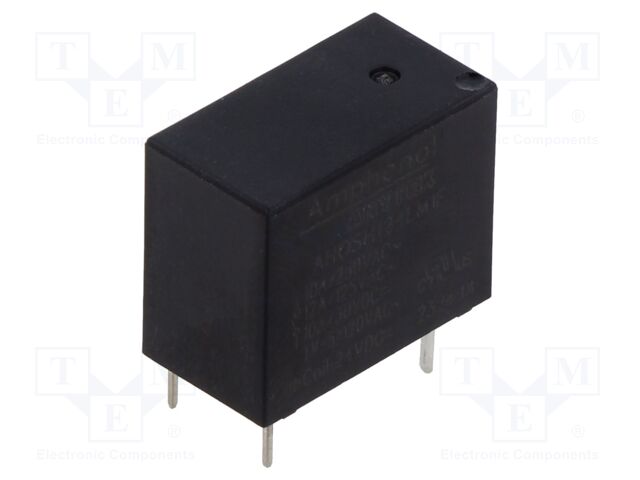

AHQSH124LM1F00G AMPHENOL ANYTEK
Виробник: AMPHENOL ANYTEK
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; Ucoil: 24VDC; SPST-NO; 10A; 10A/250VAC
Contact current max.: 10A
DC contacts rating @R: 10A / 30V DC
Coil power consumption: 200mW
AC contacts rating @R: 10A / 250V AC
Body dimensions: 10x18.2x14.9mm
Operating temperature: -40...105°C
Contacts configuration: SPST-NO
Coil voltage: 24V DC
Type of relay: electromagnetic
Mounting: PCB
Coil resistance: 2.88kΩ
Contact material: silver alloy
Manufacturer series: AHQ
| Кількість | Ціна без ПДВ |
|---|---|
| 8+ | 60.22 грн |
| 10+ | 51.93 грн |
| 22+ | 44.82 грн |
| 60+ | 42.36 грн |
| 500+ | 42.02 грн |
| 1000+ | 40.75 грн |
Товар під замовлення
Немає на нашому складі — привозимо зі складу постачальника після оформлення замовлення.
термін постачання:
14-30 дні (днів)
Мінімальна партія:
8 шт
Відгуки про товар
Написати відгук
Технічний опис AHQSH124LM1F00G AMPHENOL ANYTEK
Description: RELAY GEN PURPOSE SPST 16A 24V, Packaging: Box, Mounting Type: Through Hole, Coil Voltage: 24VDC, Operating Temperature: -40°C ~ 105°C, Termination Style: PC Pin, Relay Type: General Purpose, Coil Current: 8.3 mA, Coil Type: Non Latching, Seal Rating: Sealed - Fully, Contact Material: Silver Alloy, Contact Form: SPST-NO (1 Form A), Contact Rating (Current): 10 A, Switching Voltage: 277VAC, 24VDC - Max, Must Release Voltage: 1.2 VDC, Must Operate Voltage: 19.2 VDC, Operate Time: 10 ms, Release Time: 5 ms, Part Status: Active, Coil Insulation: Class F, Load - Max Switching: 4432VA, 384W.
Інші пропозиції AHQSH124LM1F00G за ціною від 41.29 грн до 66.30 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AHQSH124LM1F00G | Amphenol Anytek |
Description: RELAY GEN PURPOSE SPST 16A 24V Packaging: Box Mounting Type: Through Hole Coil Voltage: 24VDC Operating Temperature: -40°C ~ 105°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 8.3 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Alloy Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 10 A Switching Voltage: 277VAC, 24VDC - Max Must Release Voltage: 1.2 VDC Must Operate Voltage: 19.2 VDC Operate Time: 10 ms Release Time: 5 ms Part Status: Active Coil Insulation: Class F Load - Max Switching: 4432VA, 384W |
на замовлення 326 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
 |
AHQSH124LM1F00G | Amphenol Anytek |
General Purpose Relays Commercial RelayRated Carrying Current :10AType of Sealing : Sealed and Waterproof TypeNumber of pole : one poleCoil Voltage : 24VCoil Type : High DCContact Form : Form A Coil Insulation System : F- Class F (155C) |
на замовлення 1731 шт: термін постачання 31-40 дні (днів) |
|
| AHQSH124LM1F00G |
|
Виробник: Amphenol Anytek
Description: RELAY GEN PURPOSE SPST 16A 24V
Packaging: Box
Mounting Type: Through Hole
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 105°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 8.3 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Alloy
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 10 A
Switching Voltage: 277VAC, 24VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 19.2 VDC
Operate Time: 10 ms
Release Time: 5 ms
Part Status: Active
Coil Insulation: Class F
Load - Max Switching: 4432VA, 384W
Description: RELAY GEN PURPOSE SPST 16A 24V
Packaging: Box
Mounting Type: Through Hole
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 105°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 8.3 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Alloy
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 10 A
Switching Voltage: 277VAC, 24VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 19.2 VDC
Operate Time: 10 ms
Release Time: 5 ms
Part Status: Active
Coil Insulation: Class F
Load - Max Switching: 4432VA, 384W
на замовлення 326 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 5+ | 65.72 грн |
| 10+ | 56.88 грн |
| 25+ | 54.32 грн |
| 50+ | 49.24 грн |
| 100+ | 47.56 грн |
| 250+ | 45.42 грн |
| AHQSH124LM1F00G |
|
Виробник: Amphenol Anytek
General Purpose Relays Commercial RelayRated Carrying Current :10AType of Sealing : Sealed and Waterproof TypeNumber of pole : one poleCoil Voltage : 24VCoil Type : High DCContact Form : Form A Coil Insulation System : F- Class F (155C)
General Purpose Relays Commercial RelayRated Carrying Current :10AType of Sealing : Sealed and Waterproof TypeNumber of pole : one poleCoil Voltage : 24VCoil Type : High DCContact Form : Form A Coil Insulation System : F- Class F (155C)
на замовлення 1731 шт:
термін постачання 31-40 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 5+ | 66.30 грн |
| 10+ | 59.31 грн |
| 25+ | 49.25 грн |
| 50+ | 47.22 грн |
| 100+ | 44.74 грн |
| 250+ | 42.64 грн |
| 500+ | 41.29 грн |
