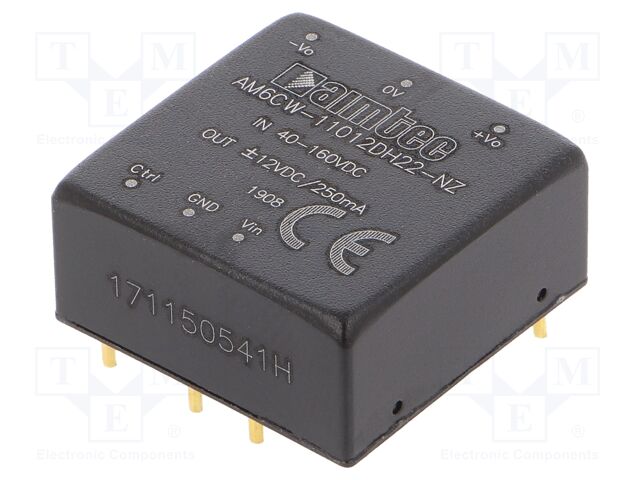

AM6CW-11012DH22-NZ AIMTEC
Виробник: AIMTEC
Category: DC/DC Converters
Description: Converter: DC/DC; 6W; Uin: 40÷160VDC; Uout: 12VDC; Uout2: -12VDC
Type of converter: DC/DC
Power: 6W
Input voltage: 40...160V DC
Output voltage: 12V DC
Output voltage 2: -12V DC
Output current: 0.25A
Manufacturer series: AM6CW-NZ
Body dimensions: 25.4x25.4x9.9mm
Efficiency: 87%
Operating temperature: -40...85°C
Protection: anti-overvoltage OVP; short circuit protection SCP; undervoltage UVP
Insulation voltage: 2.25kV DC
Number of outputs: 2
Dimensions: 1"x1"
Power consumption without load: <0.12W
Output current 2: 0.25A
Відгуки про товар
Написати відгук
Технічний опис AM6CW-11012DH22-NZ AIMTEC
Category: DC/DC Converters, Description: Converter: DC/DC; 6W; Uin: 40÷160VDC; Uout: 12VDC; Uout2: -12VDC, Type of converter: DC/DC, Power: 6W, Input voltage: 40...160V DC, Output voltage: 12V DC, Output voltage 2: -12V DC, Output current: 0.25A, Manufacturer series: AM6CW-NZ, Body dimensions: 25.4x25.4x9.9mm, Efficiency: 87%, Operating temperature: -40...85°C, Protection: anti-overvoltage OVP; short circuit protection SCP; undervoltage UVP, Insulation voltage: 2.25kV DC, Number of outputs: 2, Dimensions: 1"x1", Power consumption without load: .
Інші пропозиції AM6CW-11012DH22-NZ за ціною від 1509.06 грн до 1509.06 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||
|---|---|---|---|---|---|---|---|
 |
AM6CW-11012DH22-NZ | aimtec |
Description: DC DC CONVERTER +/-12V 6W Packaging: Tube Size / Dimension: 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C Applications: ITE (Commercial) Voltage - Input (Max): 160V Approval Agency: CE, cULus, cURus Efficiency: 84% Voltage - Input (Min): 40V Voltage - Output 1: -5 ~ 5V Voltage - Output 2: -12V Part Status: Active Power (Watts): 6 W Number of Outputs: 2 |
на замовлення 1 шт: термін постачання 21-31 дні (днів) |
|
| AM6CW-11012DH22-NZ |
|
Виробник: aimtec
Description: DC DC CONVERTER +/-12V 6W
Packaging: Tube
Size / Dimension: 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C
Applications: ITE (Commercial)
Voltage - Input (Max): 160V
Approval Agency: CE, cULus, cURus
Efficiency: 84%
Voltage - Input (Min): 40V
Voltage - Output 1: -5 ~ 5V
Voltage - Output 2: -12V
Part Status: Active
Power (Watts): 6 W
Number of Outputs: 2
Description: DC DC CONVERTER +/-12V 6W
Packaging: Tube
Size / Dimension: 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C
Applications: ITE (Commercial)
Voltage - Input (Max): 160V
Approval Agency: CE, cULus, cURus
Efficiency: 84%
Voltage - Input (Min): 40V
Voltage - Output 1: -5 ~ 5V
Voltage - Output 2: -12V
Part Status: Active
Power (Watts): 6 W
Number of Outputs: 2
на замовлення 1 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1509.06 грн |
