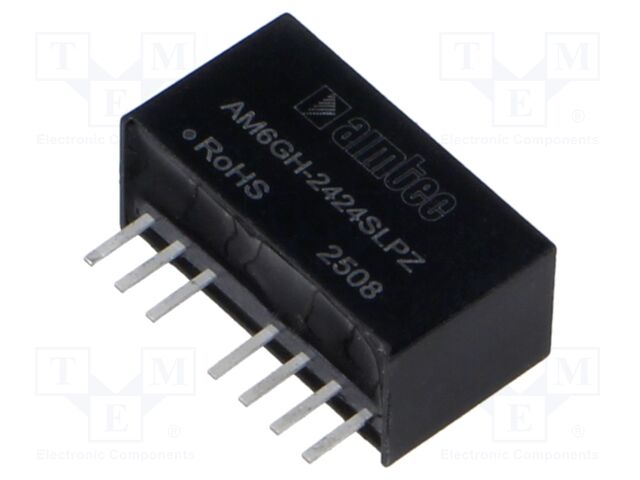

AM6GH-2424SLPZ AIMTEC
Виробник: AIMTEC
Category: DC/DC Converters
Description: Converter: DC/DC; 6W; Uin: 9÷36VDC; Uout: 24VDC; Iin: 305mA; SIP8; THT
Mounting: THT
Input voltage: 9...36V DC
Switching frequency: 400kHz
Output current: 0.25A
Type of converter: DC/DC
Protection: anti-overvoltage OVP; short circuit protection SCP; undervoltage UVP
Body dimensions: 22x9.5x12mm
Operating temperature: -40...85°C
Input current: 305mA
Efficiency: 85%
Application: industry; power grid; telecommunication
Insulation voltage: 1.5kV DC
Power: 6W
Output voltage: 24V DC
Case: SIP8
Number of outputs: 1
Відгуки про товар
Написати відгук
Технічний опис AM6GH-2424SLPZ AIMTEC
Description: 6W DCDC 4:1 SIP8, Features: Remote On/Off, Packaging: Tube, Package / Case: 8-SIP Module, 7 Leads, Size / Dimension: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C (With Derating), Applications: ITE (Commercial), Voltage - Input (Max): 36V, Approval Agency: CE, cURus, UL, Efficiency: 85%, Current - Output (Max): 250mA, Voltage - Input (Min): 9V, Voltage - Output 1: 24V, Control Features: Enable, Active High, Power (Watts): 6 W, Number of Outputs: 1, Voltage - Isolation: 1.5 kV, Standard Number: 62368-1.
Інші пропозиції AM6GH-2424SLPZ за ціною від 462.35 грн до 558.82 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AM6GH-2424SLPZ | aimtec |
Description: 6W DCDC 4:1 SIP8 Features: Remote On/Off Packaging: Tube Package / Case: 8-SIP Module, 7 Leads Size / Dimension: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 36V Approval Agency: CE, cURus, UL Efficiency: 85% Current - Output (Max): 250mA Voltage - Input (Min): 9V Voltage - Output 1: 24V Control Features: Enable, Active High Power (Watts): 6 W Number of Outputs: 1 Voltage - Isolation: 1.5 kV Standard Number: 62368-1 |
на замовлення 66 шт: термін постачання 21-31 дні (днів) |
|
| AM6GH-2424SLPZ |
|
Виробник: aimtec
Description: 6W DCDC 4:1 SIP8
Features: Remote On/Off
Packaging: Tube
Package / Case: 8-SIP Module, 7 Leads
Size / Dimension: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial)
Voltage - Input (Max): 36V
Approval Agency: CE, cURus, UL
Efficiency: 85%
Current - Output (Max): 250mA
Voltage - Input (Min): 9V
Voltage - Output 1: 24V
Control Features: Enable, Active High
Power (Watts): 6 W
Number of Outputs: 1
Voltage - Isolation: 1.5 kV
Standard Number: 62368-1
Description: 6W DCDC 4:1 SIP8
Features: Remote On/Off
Packaging: Tube
Package / Case: 8-SIP Module, 7 Leads
Size / Dimension: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial)
Voltage - Input (Max): 36V
Approval Agency: CE, cURus, UL
Efficiency: 85%
Current - Output (Max): 250mA
Voltage - Input (Min): 9V
Voltage - Output 1: 24V
Control Features: Enable, Active High
Power (Watts): 6 W
Number of Outputs: 1
Voltage - Isolation: 1.5 kV
Standard Number: 62368-1
на замовлення 66 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 558.82 грн |
| 5+ | 522.71 грн |
| 10+ | 507.44 грн |
| 15+ | 462.35 грн |
