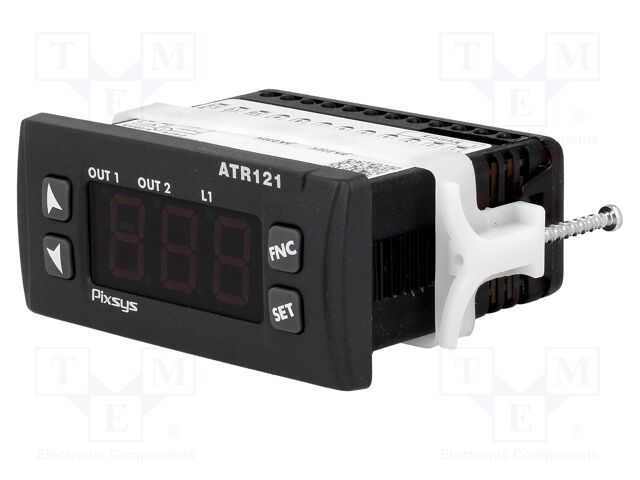

ATR121-B PIXSYS

Category: Temperature Regulators, Description: Automation module: regulator; temperature; -99.9÷999; SPDT; IP54, Type of automation module: regulator, Kind of temperature sensor: Ni100; NTC; Pt100; Pt500; Pt1000; PTC; thermocouple J; thermocouple K; thermocouple R; thermocouple S, Controlled parameter: temperature, Controlled parameter range: -99.9...999, Kind of output 1: SPDT, Kind of output 2: SPST-NO, Kind of output 3: SSR, Regulation for output 1: AUTOTUNING; ON-OFF; ON-OFF with hysteresis; PID, Mounting: on panel, Manufacturer series: ATR121, Output 1 electrical parameters: 250V AC / 8A, Output 2 electrical parameters: 250V AC / 5A, Output 3 electrical parameters: 8V DC / 20mA, Supply voltage: 230V AC, The programming method: foil keypad, Mounting hole diameter: 70.5x28.5mm, IP rating: IP54, Input 1 properties: analogue voltage; current analog; potentiometric; RTD; thermocouple, Kind of display used: LED, Display height 1: 14mm, Body dimensions: 77x35x53mm, Operating temperature: 0...40°C, Display parameters: 3 digit, Additional functions: one control input and one alarm input can be used simultaneously, Kind of input 1: 0...6kΩ; 0...10V DC; 0...20mA; 0...150kΩ; 4...20mA; universal.
