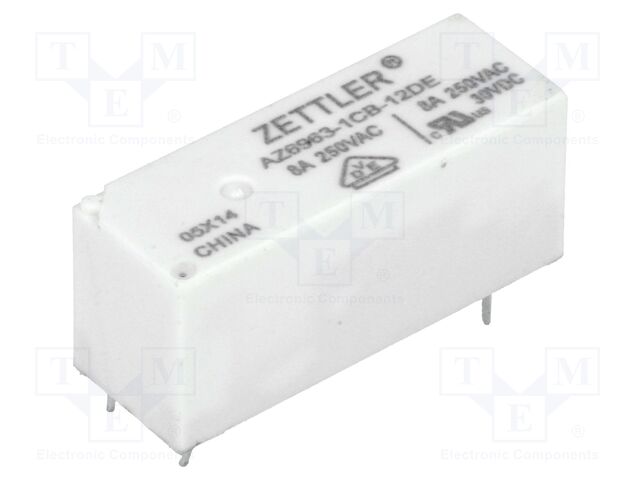

AZ6963-1CB-12DE ZETTLER
Виробник: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/30VDC
Body dimensions: 28.8x10.1x12.5mm
Coil resistance: 620Ω
Contacts configuration: SPDT
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 8A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: AZ6963
Rated coil voltage: 12V DC
Coil voltage min.: 8.4V DC
Coil voltage max.: 27.2V DC
Coil power consumption: 120mW
Operate time: 7ms
Release time: 3ms
Switched voltage: max. 240V DC; max. 440V AC
Contact current max.: 8A
Contact resistance: 100mΩ
Mounting: PCB
Terminal pitch: 3.2mm
Operating temperature: -40...85°C
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/30VDC
Body dimensions: 28.8x10.1x12.5mm
Coil resistance: 620Ω
Contacts configuration: SPDT
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 8A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: AZ6963
Rated coil voltage: 12V DC
Coil voltage min.: 8.4V DC
Coil voltage max.: 27.2V DC
Coil power consumption: 120mW
Operate time: 7ms
Release time: 3ms
Switched voltage: max. 240V DC; max. 440V AC
Contact current max.: 8A
Contact resistance: 100mΩ
Mounting: PCB
Terminal pitch: 3.2mm
Operating temperature: -40...85°C
на замовлення 1987 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
4+ | 110.59 грн |
5+ | 93.79 грн |
13+ | 62.98 грн |
35+ | 59.56 грн |
Відгуки про товар
Написати відгук
Технічний опис AZ6963-1CB-12DE ZETTLER
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/30VDC, Body dimensions: 28.8x10.1x12.5mm, Coil resistance: 620Ω, Contacts configuration: SPDT, AC contacts rating @R: 8A / 250V AC, DC contacts rating @R: 8A / 30V DC, Type of relay: electromagnetic, Relay variant: miniature, Relay series: AZ6963, Rated coil voltage: 12V DC, Coil voltage min.: 8.4V DC, Coil voltage max.: 27.2V DC, Coil power consumption: 120mW, Operate time: 7ms, Release time: 3ms, Switched voltage: max. 240V DC; max. 440V AC, Contact current max.: 8A, Contact resistance: 100mΩ, Mounting: PCB, Terminal pitch: 3.2mm, Operating temperature: -40...85°C, кількість в упаковці: 1 шт.
Інші пропозиції AZ6963-1CB-12DE за ціною від 71.47 грн до 132.7 грн
