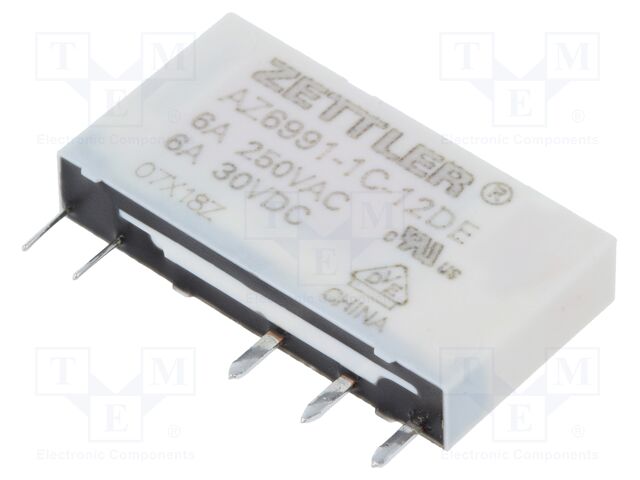

AZ6991-1C-12DE ZETTLER
Виробник: ZETTLERCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A; 6A/250VAC; 6A/30VDC
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 8A
Relay variant: interface
Manufacturer series: AZ6991
Coil resistance: 848Ω
Coil power consumption: 170mW
Contact material: AgNi
Operating temperature: -40...85°C
Body dimensions: 28x5x15mm
Mounting: PCB
AC contacts rating @R: 6A / 250V AC
DC contacts rating @R: 6A / 30V DC
Terminal pitch: 5.04mm
Operate time: 8ms
Release time: 4ms
Switched voltage: max. 125V DC; max. 400V AC
Contact resistance: 100mΩ
на замовлення 11422 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 4+ | 132.87 грн |
| 5+ | 118.02 грн |
| 11+ | 89.66 грн |
| 28+ | 85.06 грн |
| 100+ | 81.23 грн |
Відгуки про товар
Написати відгук
Технічний опис AZ6991-1C-12DE ZETTLER
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A; 6A/250VAC; 6A/30VDC, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 12V DC, Contact current max.: 8A, Relay variant: interface, Manufacturer series: AZ6991, Coil resistance: 848Ω, Coil power consumption: 170mW, Contact material: AgNi, Operating temperature: -40...85°C, Body dimensions: 28x5x15mm, Mounting: PCB, AC contacts rating @R: 6A / 250V AC, DC contacts rating @R: 6A / 30V DC, Terminal pitch: 5.04mm, Operate time: 8ms, Release time: 4ms, Switched voltage: max. 125V DC; max. 400V AC, Contact resistance: 100mΩ, кількість в упаковці: 1 шт.
Інші пропозиції AZ6991-1C-12DE за ціною від 97.48 грн до 177.65 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
AZ6991-1C-12DE | Виробник : ZETTLER |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A; 6A/250VAC; 6A/30VDC Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 8A Relay variant: interface Manufacturer series: AZ6991 Coil resistance: 848Ω Coil power consumption: 170mW Contact material: AgNi Operating temperature: -40...85°C Body dimensions: 28x5x15mm Mounting: PCB AC contacts rating @R: 6A / 250V AC DC contacts rating @R: 6A / 30V DC Terminal pitch: 5.04mm Operate time: 8ms Release time: 4ms Switched voltage: max. 125V DC; max. 400V AC Contact resistance: 100mΩ кількість в упаковці: 1 шт |
на замовлення 11422 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||
| AZ6991-1C-12DE | Виробник : Zettler Components Company |
Power Relay Over 2A |
на замовлення 12424 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||
|
AZ6991-1C-12DE Код товару: 172757
Додати до обраних
Обраний товар
|
Реле |
товару немає в наявності
|
|||||||||||||||
| AZ6991-1C-12DE | Виробник : American Zettler |
Description: RELAY GEN PURPOSE SPDT 8A 12V Packaging: Box Mounting Type: Through Hole Coil Voltage: 12VDC Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 14.2 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Nickel (AgNi) Contact Form: SPDT (1 Form C) Contact Rating (Current): 8 A Switching Voltage: 400VAC, 125VDC - Max Must Release Voltage: 0.6 VDC Must Operate Voltage: 9 VDC Operate Time: 8 ms Release Time: 4 ms Part Status: Active Approval Agency: cUR, UL, VDE Load - Max Switching: 2216VA, 180W |
товару немає в наявності |
