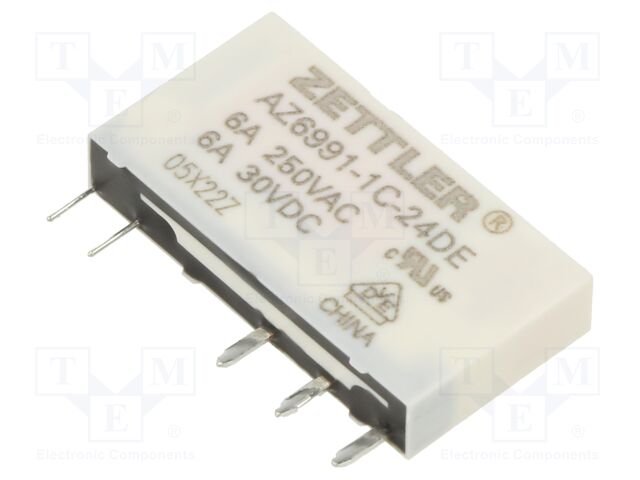

AZ6991-1C-24DE ZETTLER
Виробник: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A; 6A/277VAC; 6A/30VDC
Manufacturer series: AZ6991
Mounting: PCB
Contacts configuration: SPDT
Type of relay: electromagnetic
Operating temperature: -40...85°C
Relay variant: miniature
Release time: 4ms
Operate time: 8ms
Body dimensions: 28x5x15mm
Contact resistance: 100mΩ
Coil power consumption: 170mW
DC contacts rating @R: 6A / 30V DC
AC contacts rating @R: 6A / 277V AC
Contact current max.: 8A
Contact material: AgNi
Rated coil voltage: 24V DC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 3.39kΩ
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 159.86 грн |
| 5+ | 132.51 грн |
| 25+ | 122.44 грн |
| 100+ | 107.35 грн |
| 500+ | 101.48 грн |
Відгуки про товар
Написати відгук
Технічний опис AZ6991-1C-24DE ZETTLER
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A; 6A/277VAC; 6A/30VDC, Manufacturer series: AZ6991, Mounting: PCB, Contacts configuration: SPDT, Type of relay: electromagnetic, Operating temperature: -40...85°C, Relay variant: miniature, Release time: 4ms, Operate time: 8ms, Body dimensions: 28x5x15mm, Contact resistance: 100mΩ, Coil power consumption: 170mW, DC contacts rating @R: 6A / 30V DC, AC contacts rating @R: 6A / 277V AC, Contact current max.: 8A, Contact material: AgNi, Rated coil voltage: 24V DC, Switched voltage: max. 30V DC; max. 277V AC, Coil resistance: 3.39kΩ.
Інші пропозиції AZ6991-1C-24DE
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
| AZ6991-1C-24DE | American Zettler |
Description: RELAY GEN PURPOSE SPDT 8A 24V Packaging: Box Mounting Type: Through Hole Coil Voltage: 24VDC Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Approval Agency: cUR, UL, VDE Relay Type: General Purpose Coil Current: 7.1 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Nickel (AgNi) Contact Form: SPDT (1 Form C) Contact Rating (Current): 8 A Switching Voltage: 400VAC, 125VDC - Max Must Release Voltage: 1.2 VDC Must Operate Voltage: 18 VDC Operate Time: 8 ms Release Time: 4 ms Part Status: Active Load - Max Switching: 2216VA, 180W |
товару немає в наявності |
Мінімальне замовлення: 1000 шт В кошику од. на суму грн. |
| AZ6991-1C-24DE |
|
Виробник: American Zettler
Description: RELAY GEN PURPOSE SPDT 8A 24V
Packaging: Box
Mounting Type: Through Hole
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: cUR, UL, VDE
Relay Type: General Purpose
Coil Current: 7.1 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Nickel (AgNi)
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 8 A
Switching Voltage: 400VAC, 125VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 18 VDC
Operate Time: 8 ms
Release Time: 4 ms
Part Status: Active
Load - Max Switching: 2216VA, 180W
Description: RELAY GEN PURPOSE SPDT 8A 24V
Packaging: Box
Mounting Type: Through Hole
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: cUR, UL, VDE
Relay Type: General Purpose
Coil Current: 7.1 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Nickel (AgNi)
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 8 A
Switching Voltage: 400VAC, 125VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 18 VDC
Operate Time: 8 ms
Release Time: 4 ms
Part Status: Active
Load - Max Switching: 2216VA, 180W
товару немає в наявності
Мінімальне замовлення: 1000 шт
