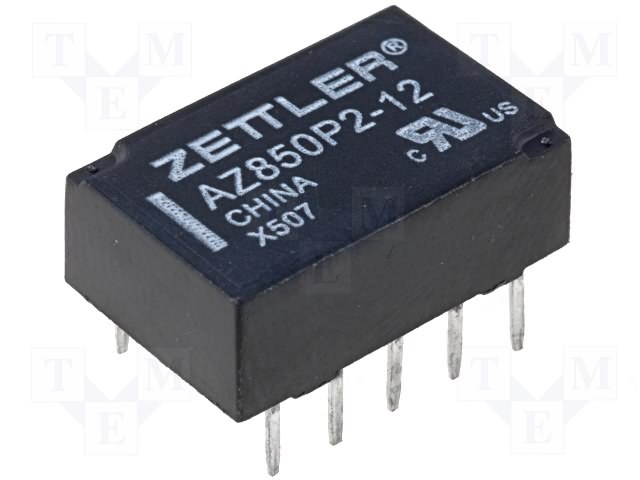

AZ850P2-12 ZETTLER

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A; 0.5A/125VAC; AZ850, Case: DIP10, Mounting: PCB, Manufacturer series: AZ850, Body dimensions: 14x9x5mm, Operating temperature: -55...90°C, Coil resistance: 720Ω, Coil voltage min.: 9V DC, Contact current max.: 1A, Relay variant: bistable; subminiature, Mechanical durability: 100000000 cycles, DC contacts rating @R: 1A / 30V DC, Design: two coils, Coil power consumption: 169mW, AC contacts rating @R: 0.5A / 125V AC, Test voltage: 1.5kV, Contacts configuration: DPDT, Switching capacity: 30W; 50VA, Operate time: 2ms, Soldering temperature: 250°C, Switched voltage: max. 220V DC; max. 250V AC, Coil voltage max.: 24V DC, Release time: 2ms, Rated coil voltage: 12V DC, Contact resistance: 70mΩ, Type of relay: electromagnetic, Terminal pitch: 2.54mm.
