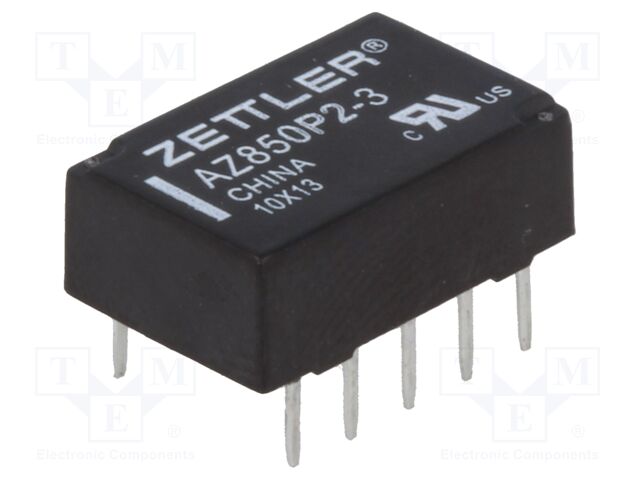

AZ850P2-3 ZETTLER
Виробник: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 1A; 0.5A/125VAC; PCB
Case: DIP10
Mounting: PCB
Operating temperature: -55...90°C
Coil power consumption: 169mW
Operate time: 2ms
Release time: 2ms
Switched voltage: max. 220V DC; max. 250V AC
Contact current max.: 1A
Switching capacity: 30W; 50VA
Contact resistance: 70mΩ
Design: two coils
Mechanical durability: 100000000 cycles
Test voltage: 1.5kV
Terminal pitch: 2.54mm
Soldering temperature: 250°C
Body dimensions: 14x9x5mm
Coil resistance: 45Ω
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Type of relay: electromagnetic
Relay variant: bistable; subminiature
Relay series: AZ850
Rated coil voltage: 3V DC
Coil voltage min.: 2.25V DC
Coil voltage max.: 6V DC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 1A; 0.5A/125VAC; PCB
Case: DIP10
Mounting: PCB
Operating temperature: -55...90°C
Coil power consumption: 169mW
Operate time: 2ms
Release time: 2ms
Switched voltage: max. 220V DC; max. 250V AC
Contact current max.: 1A
Switching capacity: 30W; 50VA
Contact resistance: 70mΩ
Design: two coils
Mechanical durability: 100000000 cycles
Test voltage: 1.5kV
Terminal pitch: 2.54mm
Soldering temperature: 250°C
Body dimensions: 14x9x5mm
Coil resistance: 45Ω
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Type of relay: electromagnetic
Relay variant: bistable; subminiature
Relay series: AZ850
Rated coil voltage: 3V DC
Coil voltage min.: 2.25V DC
Coil voltage max.: 6V DC
на замовлення 975 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
3+ | 140.05 грн |
5+ | 118.92 грн |
10+ | 86.23 грн |
26+ | 81.37 грн |
500+ | 80.67 грн |
Відгуки про товар
Написати відгук
Технічний опис AZ850P2-3 ZETTLER
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 1A; 0.5A/125VAC; PCB, Case: DIP10, Mounting: PCB, Operating temperature: -55...90°C, Coil power consumption: 169mW, Operate time: 2ms, Release time: 2ms, Switched voltage: max. 220V DC; max. 250V AC, Contact current max.: 1A, Switching capacity: 30W; 50VA, Contact resistance: 70mΩ, Design: two coils, Mechanical durability: 100000000 cycles, Test voltage: 1.5kV, Terminal pitch: 2.54mm, Soldering temperature: 250°C, Body dimensions: 14x9x5mm, Coil resistance: 45Ω, Contacts configuration: DPDT, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 1A / 30V DC, Type of relay: electromagnetic, Relay variant: bistable; subminiature, Relay series: AZ850, Rated coil voltage: 3V DC, Coil voltage min.: 2.25V DC, Coil voltage max.: 6V DC, кількість в упаковці: 1 шт.
Інші пропозиції AZ850P2-3 за ціною від 96.8 грн до 187.46 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AZ850P2-3 | Виробник : ZETTLER |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 1A; 0.5A/125VAC; PCB Case: DIP10 Mounting: PCB Operating temperature: -55...90°C Coil power consumption: 169mW Operate time: 2ms Release time: 2ms Switched voltage: max. 220V DC; max. 250V AC Contact current max.: 1A Switching capacity: 30W; 50VA Contact resistance: 70mΩ Design: two coils Mechanical durability: 100000000 cycles Test voltage: 1.5kV Terminal pitch: 2.54mm Soldering temperature: 250°C Body dimensions: 14x9x5mm Coil resistance: 45Ω Contacts configuration: DPDT AC contacts rating @R: 0.5A / 125V AC DC contacts rating @R: 1A / 30V DC Type of relay: electromagnetic Relay variant: bistable; subminiature Relay series: AZ850 Rated coil voltage: 3V DC Coil voltage min.: 2.25V DC Coil voltage max.: 6V DC кількість в упаковці: 1 шт |
на замовлення 975 шт: термін постачання 7-14 дні (днів) |
|
|||||||||||||||
AZ850P2-3 | Виробник : Zettler Components Company | Signal Relay 3VDC 1A DPDT(14x9x5)mm THT |
на замовлення 1131 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||
AZ850P2-3 | Виробник : American Zettler |
Description: RELAY GENERAL PURPOSE DPDT 1A 3V Packaging: Box Mounting Type: Through Hole Coil Voltage: 3VDC Operating Temperature: -40°C ~ 70°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 66.7 mA Coil Type: Latching, Dual Coil Seal Rating: Sealed - Fully Contact Material: Silver Palladium (AgPd), Gold (Au) Contact Form: DPDT (2 Form C) Contact Rating (Current): 1 A Switching Voltage: 250VAC, 220VDC - Max Must Release Voltage: 0.3 VDC Must Operate Voltage: 2.3 VDC Operate Time: 2 ms Release Time: 1 ms Part Status: Active |
товар відсутній |
