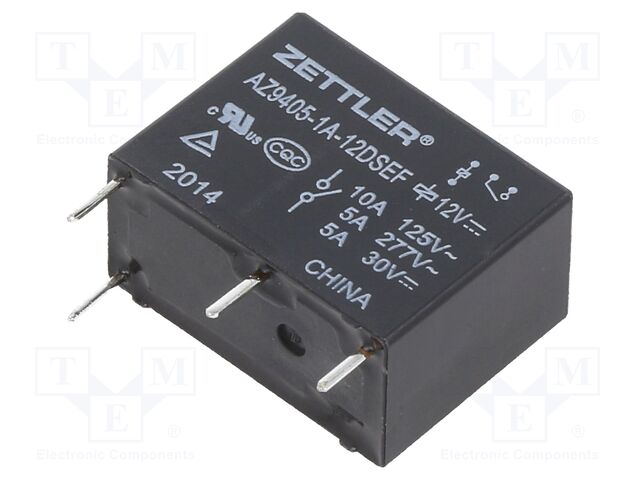

AZ9405-1A-12DSEF ZETTLER
Виробник: ZETTLERCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 5A/277VAC; PCB
Terminal pitch: 7.62mm
Operating temperature: -40...85°C
Body dimensions: 20x10x15.2mm
Coil resistance: 720Ω
Contacts configuration: SPST-NO
AC contacts rating @R: 5A / 277V AC
DC contacts rating @R: 5A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 12V DC
Coil power consumption: 200mW
Switched voltage: max. 30V DC; max. 277V AC
Contact current max.: 10A
Contact resistance: 100mΩ
Manufacturer series: AZ9405
Mounting: PCB
на замовлення 111 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 5+ | 80.47 грн |
| 14+ | 65.14 грн |
| 39+ | 62.07 грн |
Відгуки про товар
Написати відгук
Технічний опис AZ9405-1A-12DSEF ZETTLER
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 5A/277VAC; PCB, Terminal pitch: 7.62mm, Operating temperature: -40...85°C, Body dimensions: 20x10x15.2mm, Coil resistance: 720Ω, Contacts configuration: SPST-NO, AC contacts rating @R: 5A / 277V AC, DC contacts rating @R: 5A / 30V DC, Type of relay: electromagnetic, Relay variant: miniature, Rated coil voltage: 12V DC, Coil power consumption: 200mW, Switched voltage: max. 30V DC; max. 277V AC, Contact current max.: 10A, Contact resistance: 100mΩ, Manufacturer series: AZ9405, Mounting: PCB, кількість в упаковці: 1 шт.
Інші пропозиції AZ9405-1A-12DSEF за ціною від 74.49 грн до 121.81 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
AZ9405-1A-12DSEF | Виробник : ZETTLER |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 5A/277VAC; PCB Terminal pitch: 7.62mm Operating temperature: -40...85°C Body dimensions: 20x10x15.2mm Coil resistance: 720Ω Contacts configuration: SPST-NO AC contacts rating @R: 5A / 277V AC DC contacts rating @R: 5A / 30V DC Type of relay: electromagnetic Relay variant: miniature Rated coil voltage: 12V DC Coil power consumption: 200mW Switched voltage: max. 30V DC; max. 277V AC Contact current max.: 10A Contact resistance: 100mΩ Manufacturer series: AZ9405 Mounting: PCB кількість в упаковці: 1 шт |
на замовлення 111 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
| AZ9405-1A-12DSEF | Виробник : Zettler Components Company | AZ9405-1A-12DSEF |
на замовлення 362 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
| AZ9405-1A-12DSEF | Виробник : American Zettler |
Description: RELAY GEN PURPOSE SPST 10A 12V Packaging: Box Mounting Type: Through Hole Coil Voltage: 12VDC Operating Temperature: -40°C ~ 105°C Termination Style: PC Pin Approval Agency: CSA, UL Relay Type: General Purpose Coil Current: 16.7 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Tin Oxide (AgSnO) Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 10 A Switching Voltage: 277VAC, 30VDC - Max Must Release Voltage: 1.2 VDC Must Operate Voltage: 9 VDC Operate Time: 15 ms Release Time: 5 ms Coil Insulation: Class F Load - Max Switching: 1400VA, 150W |
товару немає в наявності |
