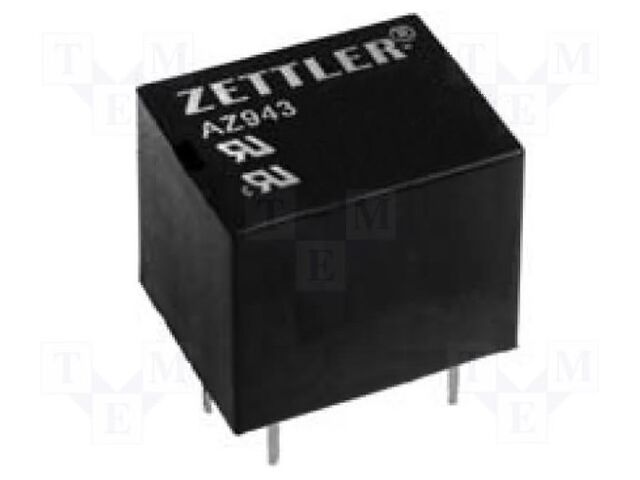

AZ943-1CH-12DE ZETTLER
Виробник: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; Ucoil: 12VDC; SPDT; 15A; 10A/277VAC; AZ943
Type of relay: electromagnetic
Coil voltage: 12V DC
Contacts configuration: SPDT
Contact current max.: 15A
AC contacts rating @R: 10A / 277V AC
DC contacts rating @R: 7A / 30V DC
Manufacturer series: AZ943
Switched voltage: max. 30V DC; max. 300V AC
Relay variant: miniature
Mounting: PCB
Operate time: 10ms
Body dimensions: 19x15.3x15.7mm
Release time: 5ms
Coil power consumption: 203mW
IP rating: IP64
Contact resistance: 100mΩ
Contact material: AgSnO2
Terminal pitch: 2mm
Operating temperature: -40...90°C
| Кількість | Ціна без ПДВ |
|---|---|
| 10+ | 46.49 грн |
| 20+ | 39.28 грн |
| 40+ | 36.99 грн |
| 60+ | 36.23 грн |
| 100+ | 33.86 грн |
| 260+ | 33.10 грн |
Відгуки про товар
Написати відгук
Технічний опис AZ943-1CH-12DE ZETTLER
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; Ucoil: 12VDC; SPDT; 15A; 10A/277VAC; AZ943, Type of relay: electromagnetic, Coil voltage: 12V DC, Contacts configuration: SPDT, Contact current max.: 15A, AC contacts rating @R: 10A / 277V AC, DC contacts rating @R: 7A / 30V DC, Manufacturer series: AZ943, Switched voltage: max. 30V DC; max. 300V AC, Relay variant: miniature, Mounting: PCB, Operate time: 10ms, Body dimensions: 19x15.3x15.7mm, Release time: 5ms, Coil power consumption: 203mW, IP rating: IP64, Contact resistance: 100mΩ, Contact material: AgSnO2, Terminal pitch: 2mm, Operating temperature: -40...90°C.
Інші пропозиції AZ943-1CH-12DE за ціною від 59.93 грн до 252.02 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AZ943-1CH-12DE | Zettler Components Company |
Power Relay 12VDC 10A SPDT(19x15.3x15.7)mm THT |
на замовлення 13590 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
 |
AZ943-1CH-12DE | American Zettler |
Description: RELAY GEN PURPOSE SPDT 10A 12V Packaging: Tube Mounting Type: Through Hole Coil Voltage: 12VDC Operating Temperature: -40°C ~ 90°C Termination Style: PC Pin Approval Agency: CUR, TUV, UL, VDE Relay Type: General Purpose Coil Current: 30 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Tin Oxide (AgSnO) Contact Form: SPDT (1 Form C) Contact Rating (Current): 10 A Switching Voltage: 277VAC, 30VDC - Max Must Release Voltage: 1.2 VDC Must Operate Voltage: 9 VDC Operate Time: 10 ms Release Time: 5 ms Coil Insulation: Class B Load - Max Switching: 2770VA, 300W |
на замовлення 52299 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
|
AZ943-1CH-12DE | American Zettler |
Power Relay 12VDC 10A SPDT(19.25x15.49x15.95)mm THT |
на замовлення 25085 шт: термін постачання 21-31 дні (днів) |
|
| AZ943-1CH-12DE |
|
Виробник: Zettler Components Company
Power Relay 12VDC 10A SPDT(19x15.3x15.7)mm THT
Power Relay 12VDC 10A SPDT(19x15.3x15.7)mm THT
на замовлення 13590 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 230+ | 61.38 грн |
| 260+ | 59.93 грн |
| AZ943-1CH-12DE |
|
Виробник: American Zettler
Description: RELAY GEN PURPOSE SPDT 10A 12V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 90°C
Termination Style: PC Pin
Approval Agency: CUR, TUV, UL, VDE
Relay Type: General Purpose
Coil Current: 30 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Tin Oxide (AgSnO)
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 10 A
Switching Voltage: 277VAC, 30VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 9 VDC
Operate Time: 10 ms
Release Time: 5 ms
Coil Insulation: Class B
Load - Max Switching: 2770VA, 300W
Description: RELAY GEN PURPOSE SPDT 10A 12V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 90°C
Termination Style: PC Pin
Approval Agency: CUR, TUV, UL, VDE
Relay Type: General Purpose
Coil Current: 30 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Tin Oxide (AgSnO)
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 10 A
Switching Voltage: 277VAC, 30VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 9 VDC
Operate Time: 10 ms
Release Time: 5 ms
Coil Insulation: Class B
Load - Max Switching: 2770VA, 300W
на замовлення 52299 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 134.50 грн |
| 20+ | 111.99 грн |
| 40+ | 108.15 грн |
| 60+ | 99.44 грн |
| 100+ | 96.92 грн |
| 260+ | 92.37 грн |
| 500+ | 87.92 грн |
| 1000+ | 84.90 грн |
| 5000+ | 78.28 грн |
| AZ943-1CH-12DE |
|
Виробник: American Zettler
Power Relay 12VDC 10A SPDT(19.25x15.49x15.95)mm THT
Power Relay 12VDC 10A SPDT(19.25x15.49x15.95)mm THT
на замовлення 25085 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 56+ | 252.02 грн |
| 250+ | 175.17 грн |
| 500+ | 160.79 грн |
| 1000+ | 147.06 грн |
| 3000+ | 131.76 грн |
