Продукція > ZETTLER > AZ943-1CH-5DE

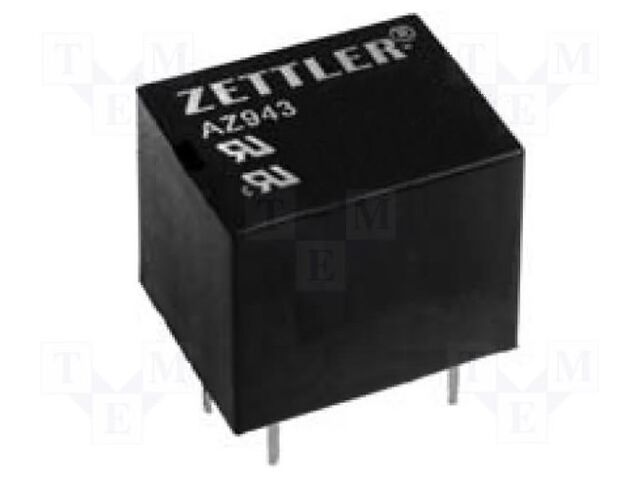

AZ943-1CH-5DE

AZ943-1CH-5DE ZETTLER


pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC6EA6BC03BC0D6&compId=AZ943.pdf?ci_sign=547a9ade670b74ade61f1b2e54659c080c78b9f5 Виробник: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 15A; 10A/277VAC; AZ943
Body dimensions: 19x15.3x15.7mm
IP rating: IP64
Contact material: AgSnO2
Contacts configuration: SPDT
AC contacts rating @R: 10A / 277V AC
DC contacts rating @R: 7A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 5V DC
Coil power consumption: 203mW
Operate time: 10ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 300V AC
Contact current max.: 15A
Contact resistance: 100mΩ
Manufacturer series: AZ943
Mounting: PCB
Terminal pitch: 2mm
Operating temperature: -40...90°C
на замовлення 8571 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
8+60.25 грн
10+50.43 грн
20+46.09 грн
30+31.44 грн
81+29.71 грн
Мінімальне замовлення: 8
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис AZ943-1CH-5DE ZETTLER

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 15A; 10A/277VAC; AZ943, Body dimensions: 19x15.3x15.7mm, IP rating: IP64, Contact material: AgSnO2, Contacts configuration: SPDT, AC contacts rating @R: 10A / 277V AC, DC contacts rating @R: 7A / 30V DC, Type of relay: electromagnetic, Relay variant: miniature, Rated coil voltage: 5V DC, Coil power consumption: 203mW, Operate time: 10ms, Release time: 5ms, Switched voltage: max. 30V DC; max. 300V AC, Contact current max.: 15A, Contact resistance: 100mΩ, Manufacturer series: AZ943, Mounting: PCB, Terminal pitch: 2mm, Operating temperature: -40...90°C, кількість в упаковці: 1 шт.

Інші пропозиції AZ943-1CH-5DE за ціною від 35.65 грн до 90.67 грн

Фото Назва Виробник Інформація Доступність
Ціна
AZ943-1CH-5DE AZ943-1CH-5DE Виробник : American Zettler az943.pdf Description: RELAY GEN PURPOSE SPDT 10A 5V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 5VDC
Operating Temperature: -40°C ~ 90°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 71.4 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Tin Oxide (AgSnO)
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 10 A
Switching Voltage: 277VAC, 30VDC - Max
Must Release Voltage: 0.5 VDC
Must Operate Voltage: 3.8 VDC
Operate Time: 10 ms
Release Time: 5 ms
Coil Insulation: Class B
Approval Agency: CUR, TUV, UL, VDE
Load - Max Switching: 2770VA, 300W
на замовлення 10265 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
5+72.01 грн
20+59.13 грн
40+57.13 грн
60+52.53 грн
100+51.19 грн
260+48.79 грн
500+46.44 грн
1000+44.85 грн
5000+41.35 грн
Мінімальне замовлення: 5
В кошику  од. на суму  грн.
AZ943-1CH-5DE AZ943-1CH-5DE Виробник : ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC6EA6BC03BC0D6&compId=AZ943.pdf?ci_sign=547a9ade670b74ade61f1b2e54659c080c78b9f5 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 15A; 10A/277VAC; AZ943
Body dimensions: 19x15.3x15.7mm
IP rating: IP64
Contact material: AgSnO2
Contacts configuration: SPDT
AC contacts rating @R: 10A / 277V AC
DC contacts rating @R: 7A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 5V DC
Coil power consumption: 203mW
Operate time: 10ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 300V AC
Contact current max.: 15A
Contact resistance: 100mΩ
Manufacturer series: AZ943
Mounting: PCB
Terminal pitch: 2mm
Operating temperature: -40...90°C
кількість в упаковці: 1 шт
на замовлення 8571 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
5+72.30 грн
10+62.84 грн
20+55.31 грн
30+37.73 грн
81+35.65 грн
Мінімальне замовлення: 5
В кошику  од. на суму  грн.
AZ943-1CH-5DE AZ943-1CH-5DE Виробник : American Zettler az943.pdf Power Relay 5VDC 10A SPDT(19.25x15.49x15.95)mm THT
на замовлення 39200 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
160+76.89 грн
Мінімальне замовлення: 160
В кошику  од. на суму  грн.
AZ943-1CH-5DE AZ943-1CH-5DE Виробник : American Zettler az943.pdf Power Relay 5VDC 10A SPDT(19.25x15.49x15.95)mm THT
на замовлення 10515 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
136+90.67 грн
260+63.28 грн
1000+58.46 грн
2500+56.30 грн
5000+47.49 грн
Мінімальне замовлення: 136
В кошику  од. на суму  грн.
AZ943-1CH-5DE Виробник : Zettler Components Company az943.pdf Power Relay 5VDC 10A SPDT(19x15.3x15.7)mm THT
на замовлення 7315 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
208+59.04 грн
246+49.89 грн
Мінімальне замовлення: 208
В кошику  од. на суму  грн.
