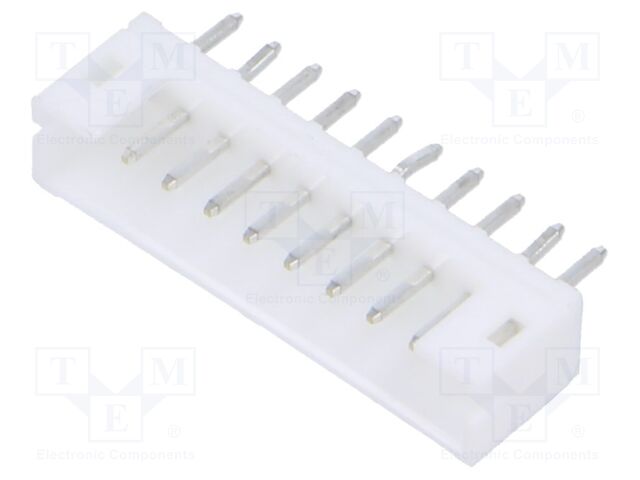

B10B-PH-K-S JST
Виробник: JST
Category: Raster signal connectors 2,00mm
Description: Connector: wire-board; socket; male; PIN: 10; PH; 2A; 100V; straight
Type of connector: wire-board
Connector: socket
Kind of connector: male
Electrical mounting: THT
Current rating: 2A
Contacts pitch: 2mm
Spatial orientation: straight
Rated voltage: 100V
Manufacturer series: PH
Number of pins: 10
Operating temperature: -25...85°C
Mechanical mounting: on PCBs
| Кількість | Ціна без ПДВ |
|---|---|
| 45+ | 10.09 грн |
| 50+ | 8.54 грн |
| 200+ | 7.70 грн |
Відгуки про товар
Написати відгук
Технічний опис B10B-PH-K-S JST
Description: CONN HEADER VERT 10POS 2MM, Packaging: Bulk, Connector Type: Header, Voltage Rating: 100V, Current Rating (Amps): 2A, Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -25°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Detent Lock, Number of Positions Loaded: All, Termination: Press-Fit, Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Natural, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.134" (3.40mm), Insulation Height: 0.236" (6.00mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.333" (8.45mm), Insulation Material: Polyamide (PA66), Nylon 6/6, Contact Length - Mating: 0.130" (3.30mm).
Інші пропозиції B10B-PH-K-S за ціною від 13.33 грн до 28.94 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B10B-PH-K-S | JST Sales America Inc. |
Description: CONN HEADER VERT 10POS 2MM Packaging: Bulk Connector Type: Header Voltage Rating: 100V Current Rating (Amps): 2A Mounting Type: Through Hole Number of Positions: 10 Number of Rows: 1 Style: Board to Cable/Wire Operating Temperature: -25°C ~ 85°C Contact Type: Male Pin Fastening Type: Detent Lock Number of Positions Loaded: All Termination: Press-Fit, Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass Insulation Color: Natural Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Tin Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.134" (3.40mm) Insulation Height: 0.236" (6.00mm) Shrouding: Shrouded - 4 Wall Overall Contact Length: 0.333" (8.45mm) Insulation Material: Polyamide (PA66), Nylon 6/6 Contact Length - Mating: 0.130" (3.30mm) |
на замовлення 26850 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
| B10B-PH-K-S | JST Corporation |
B10B-PH-K-S |
на замовлення 660 шт: термін постачання 21-31 дні (днів) |
Мінімальне замовлення: 468 шт В кошику од. на суму грн. |
| B10B-PH-K-S |
|
Виробник: JST Sales America Inc.
Description: CONN HEADER VERT 10POS 2MM
Packaging: Bulk
Connector Type: Header
Voltage Rating: 100V
Current Rating (Amps): 2A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -25°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Detent Lock
Number of Positions Loaded: All
Termination: Press-Fit, Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Natural
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.134" (3.40mm)
Insulation Height: 0.236" (6.00mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.333" (8.45mm)
Insulation Material: Polyamide (PA66), Nylon 6/6
Contact Length - Mating: 0.130" (3.30mm)
Description: CONN HEADER VERT 10POS 2MM
Packaging: Bulk
Connector Type: Header
Voltage Rating: 100V
Current Rating (Amps): 2A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -25°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Detent Lock
Number of Positions Loaded: All
Termination: Press-Fit, Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Natural
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.134" (3.40mm)
Insulation Height: 0.236" (6.00mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.333" (8.45mm)
Insulation Material: Polyamide (PA66), Nylon 6/6
Contact Length - Mating: 0.130" (3.30mm)
на замовлення 26850 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 11+ | 28.94 грн |
| 13+ | 23.50 грн |
| 100+ | 19.99 грн |
| 500+ | 16.74 грн |
| 1000+ | 15.94 грн |
| 5000+ | 14.23 грн |
| 10000+ | 13.33 грн |
| B10B-PH-K-S |
|
Виробник: JST Corporation
B10B-PH-K-S
B10B-PH-K-S
на замовлення 660 шт:
термін постачання 21-31 дні (днів)
