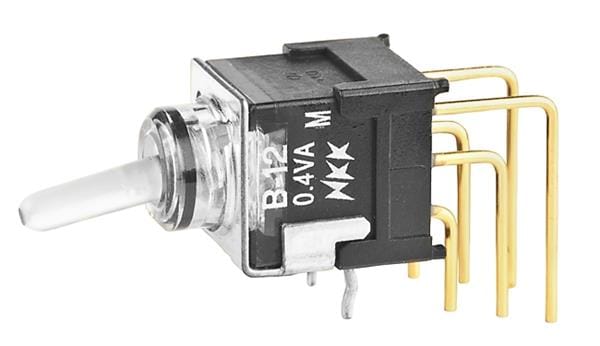

B12JJVF NKK Switches
Виробник: NKK SwitchesDescription: SWITCH TOGGLE SPDT 0.4VA 28V
Packaging: Bulk
Features: Epoxy Sealed Terminals
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Through Hole, Right Angle, Vertical
Circuit: SPDT
Switch Function: On-On
Operating Temperature: -25°C ~ 55°C
Termination Style: PC Pin
Illumination Type, Color: LED, Green
Illumination Voltage (Nominal): 3.3 VDC
Illumination: Illuminated
Bushing Thread: Unthreaded
Actuator Length: 6.30mm
Actuator Type: Standard Round
Part Status: Active
Voltage Rating - AC: 28 V
Voltage Rating - DC: 28 V
на замовлення 431 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 748.30 грн |
| 10+ | 648.90 грн |
| 25+ | 621.71 грн |
| 50+ | 554.77 грн |
| 100+ | 532.45 грн |
| 250+ | 500.57 грн |
Відгуки про товар
Написати відгук
Технічний опис B12JJVF NKK Switches
Category: Toggle Switches, Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 0.1A/28VAC; 0.1A/28VDC; B; THT, Mounting: THT, Terminal pitch: 2.54mm, Leads: angled; for soldering, Number of terminals: 6, Electrical life: 50000 cycles, Body material: polyamide, Poles number: 1, Contact material: brass, Type of switch: toggle, Contacts configuration: SPDT, AC contacts rating @R: 0.1A / 28V AC, DC contacts rating @R: 0.1A / 28V DC, Switching method: ON-ON, Stable positions number: 2, Actuator material: polyamide, Operating Force: 1.18N, Illumination: LED, Kind of toggle: round, Backlight colour: green, Lever length: 6.3mm, Manufacturer series: B, Number of positions: 2, Kind of material: fiber glass reinforced, Contact plating: gold-plated, Mechanical durability: 100000 cycles, Max. contact resistance:: 50mΩ, Min. insulation resistance: 500MΩ, Operating temperature: -25...55°C, Body dimensions: 8.8x13.88x8.8mm, кількість в упаковці: 1 шт.
Інші пропозиції B12JJVF
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| B12JJVF | Виробник : NKK SWITCHES |
Category: Toggle Switches Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 0.1A/28VAC; 0.1A/28VDC; B; THT Mounting: THT Terminal pitch: 2.54mm Leads: angled; for soldering Number of terminals: 6 Electrical life: 50000 cycles Body material: polyamide Poles number: 1 Contact material: brass Type of switch: toggle Contacts configuration: SPDT AC contacts rating @R: 0.1A / 28V AC DC contacts rating @R: 0.1A / 28V DC Switching method: ON-ON Stable positions number: 2 Actuator material: polyamide Operating Force: 1.18N Illumination: LED Kind of toggle: round Backlight colour: green Lever length: 6.3mm Manufacturer series: B Number of positions: 2 Kind of material: fiber glass reinforced Contact plating: gold-plated Mechanical durability: 100000 cycles Max. contact resistance:: 50mΩ Min. insulation resistance: 500MΩ Operating temperature: -25...55°C Body dimensions: 8.8x13.88x8.8mm кількість в упаковці: 1 шт |
товару немає в наявності |
||
 |
B12JJVF | Виробник : NKK Switches |
Toggle Switches SPDT ON-ON 0.4VA GRN VERTICAL PC |
товару немає в наявності |
|
| B12JJVF | Виробник : NKK SWITCHES |
Category: Toggle Switches Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 0.1A/28VAC; 0.1A/28VDC; B; THT Mounting: THT Terminal pitch: 2.54mm Leads: angled; for soldering Number of terminals: 6 Electrical life: 50000 cycles Body material: polyamide Poles number: 1 Contact material: brass Type of switch: toggle Contacts configuration: SPDT AC contacts rating @R: 0.1A / 28V AC DC contacts rating @R: 0.1A / 28V DC Switching method: ON-ON Stable positions number: 2 Actuator material: polyamide Operating Force: 1.18N Illumination: LED Kind of toggle: round Backlight colour: green Lever length: 6.3mm Manufacturer series: B Number of positions: 2 Kind of material: fiber glass reinforced Contact plating: gold-plated Mechanical durability: 100000 cycles Max. contact resistance:: 50mΩ Min. insulation resistance: 500MΩ Operating temperature: -25...55°C Body dimensions: 8.8x13.88x8.8mm |
товару немає в наявності |
