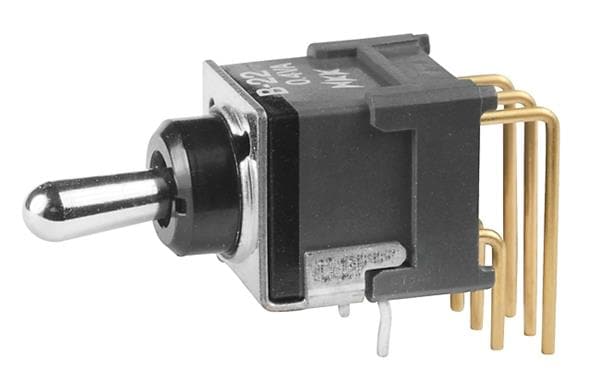

B22JH NKK SWITCHES
Виробник: NKK SWITCHES
Category: Toggle Switches
Description: Switch: toggle; Pos: 2; DPDT; ON-ON; 0.1A/28VAC; 0.1A/28VDC; B; THT
Actuator material: brass
Contact plating: gold-plated
Terminal pitch: 2.54mm
Mounting: THT
Contact material: copper
Manufacturer series: B
Poles number: 2
Type of switch: toggle
Mechanical durability: 100000 cycles
DC contacts rating @R: 0.1A / 28V DC
AC contacts rating @R: 0.1A / 28V AC
Operating temperature: -30...85°C
Lever length: 6.3mm
Contacts configuration: DPDT
Stable positions number: 2
Number of terminals: 6
Leads: angled; for soldering
Operating Force: 1.84N
Body material: polyamide
Body dimensions: 8.8x13.88x8.8mm
Kind of toggle: round
Switching method: ON-ON
Min. insulation resistance: 500MΩ
Kind of material: fiber glass reinforced
Max. contact resistance:: 50mΩ
Electrical life: 50000 cycles
Illumination: none
Number of positions: 2
Відгуки про товар
Написати відгук
Технічний опис B22JH NKK SWITCHES
Category: Toggle Switches, Description: Switch: toggle; Pos: 2; DPDT; ON-ON; 0.1A/28VAC; 0.1A/28VDC; B; THT, Actuator material: brass, Contact plating: gold-plated, Terminal pitch: 2.54mm, Mounting: THT, Contact material: copper, Manufacturer series: B, Poles number: 2, Type of switch: toggle, Mechanical durability: 100000 cycles, DC contacts rating @R: 0.1A / 28V DC, AC contacts rating @R: 0.1A / 28V AC, Operating temperature: -30...85°C, Lever length: 6.3mm, Contacts configuration: DPDT, Stable positions number: 2, Number of terminals: 6, Leads: angled; for soldering, Operating Force: 1.84N, Body material: polyamide, Body dimensions: 8.8x13.88x8.8mm, Kind of toggle: round, Switching method: ON-ON, Min. insulation resistance: 500MΩ, Kind of material: fiber glass reinforced, Max. contact resistance:: 50mΩ, Electrical life: 50000 cycles, Illumination: none, Number of positions: 2.
Інші пропозиції B22JH за ціною від 420.00 грн до 662.20 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B22JH | NKK Switches |
Switch Toggle ON None ON DPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket |
на замовлення 435 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
B22JH | NKK Switches |
Description: SWITCH TOGGLE DPDT 0.4VA 28V Voltage Rating - DC: 28 V Voltage Rating - AC: 28 V Part Status: Active Actuator Type: Standard Round Actuator Length: 6.30mm Bushing Thread: Unthreaded Illumination: Non-Illuminated Termination Style: PC Pin Operating Temperature: -30°C ~ 85°C Switch Function: On-On Circuit: DPDT Mounting Type: Through Hole, Right Angle Current Rating (Amps): 0.4VA (AC/DC) Features: Epoxy Sealed Terminals Packaging: Bulk |
на замовлення 454 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
B22JH | NKK Switches |
Toggle Switches DPDT ON-ON .248 BAT RIGHT ANGL PC .4VA |
на замовлення 208 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| B22JH |
|
Виробник: NKK Switches
Switch Toggle ON None ON DPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
Switch Toggle ON None ON DPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
на замовлення 435 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 23+ | 621.37 грн |
| B22JH |
|
Виробник: NKK Switches
Description: SWITCH TOGGLE DPDT 0.4VA 28V
Voltage Rating - DC: 28 V
Voltage Rating - AC: 28 V
Part Status: Active
Actuator Type: Standard Round
Actuator Length: 6.30mm
Bushing Thread: Unthreaded
Illumination: Non-Illuminated
Termination Style: PC Pin
Operating Temperature: -30°C ~ 85°C
Switch Function: On-On
Circuit: DPDT
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 0.4VA (AC/DC)
Features: Epoxy Sealed Terminals
Packaging: Bulk
Description: SWITCH TOGGLE DPDT 0.4VA 28V
Voltage Rating - DC: 28 V
Voltage Rating - AC: 28 V
Part Status: Active
Actuator Type: Standard Round
Actuator Length: 6.30mm
Bushing Thread: Unthreaded
Illumination: Non-Illuminated
Termination Style: PC Pin
Operating Temperature: -30°C ~ 85°C
Switch Function: On-On
Circuit: DPDT
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 0.4VA (AC/DC)
Features: Epoxy Sealed Terminals
Packaging: Bulk
на замовлення 454 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 662.20 грн |
| 10+ | 550.37 грн |
| 25+ | 519.01 грн |
| 50+ | 465.86 грн |
| 100+ | 445.56 грн |
| 250+ | 420.00 грн |
| B22JH |
|
Виробник: NKK Switches
Toggle Switches DPDT ON-ON .248 BAT RIGHT ANGL PC .4VA
Toggle Switches DPDT ON-ON .248 BAT RIGHT ANGL PC .4VA
на замовлення 208 шт:
термін постачання 21-30 дні (днів)
