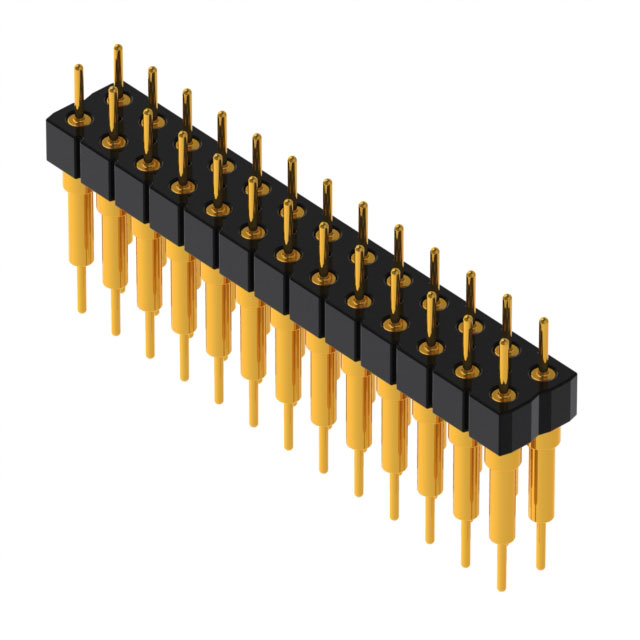

BBD-113-G-B Samtec

Description: CONN HEADER VERT 26POS 2.54MM, Packaging: Tube, Connector Type: Header, Mounting Type: Through Hole, Number of Positions: 26, Number of Rows: 2, Style: Board to Board, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 20.0µin (0.51µm), Contact Finish - Post: Nickel, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.125" (3.18mm), Insulation Height: 0.335" (8.51mm), Shrouding: Unshrouded, Overall Contact Length: 0.585" (14.86mm), Insulation Material: Polyester, Glass Filled, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.125" (3.18mm).
