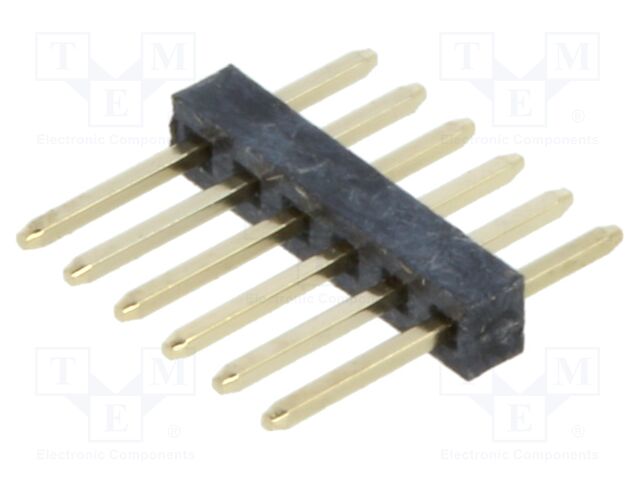

BC020-06-A-0200-0300-L-G GCT
Виробник: GCT
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 6; THT; straight; 1mm
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 6
Electrical mounting: THT
Spatial orientation: straight
Contacts pitch: 1mm
Connector pinout layout: 1x6
Contact plating: gold flash
Overall length: 6mm
Length of metal part: 2mm
Lead length: 3mm
| Кількість | Ціна без ПДВ |
|---|---|
| 7+ | 66.70 грн |
| 10+ | 55.57 грн |
| 25+ | 51.84 грн |
| 50+ | 48.87 грн |
| 100+ | 46.24 грн |
| 200+ | 43.86 грн |
| 300+ | 42.50 грн |
| 500+ | 40.89 грн |
| 1000+ | 39.79 грн |
Відгуки про товар
Написати відгук
Технічний опис BC020-06-A-0200-0300-L-G GCT
Description: 6POS 1.0MM PITCH PIN HEADER, SIL, Packaging: Box, Connector Type: Header, Voltage Rating: 250VAC/DC, Current Rating (Amps): 1A per Contact, Mounting Type: Through Hole, Number of Positions: 6, Number of Rows: 1, Style: Board to Board, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.039" (1.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.039" (1.00mm), Shrouding: Unshrouded, Overall Contact Length: 0.236" (6.00mm), Insulation Material: Liquid Crystal Polymer (LCP), Contact Length - Mating: 0.079" (2.00mm).
Інші пропозиції BC020-06-A-0200-0300-L-G за ціною від 40.65 грн до 86.99 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BC020-06-A-0200-0300-L-G | GCT |
Description: 6POS 1.0MM PITCH PIN HEADER, SIL Packaging: Box Connector Type: Header Voltage Rating: 250VAC/DC Current Rating (Amps): 1A per Contact Mounting Type: Through Hole Number of Positions: 6 Number of Rows: 1 Style: Board to Board Operating Temperature: -40°C ~ 105°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.039" (1.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: FLASH Contact Finish - Post: Gold Part Status: Active Contact Shape: Square Contact Length - Post: 0.118" (3.00mm) Insulation Height: 0.039" (1.00mm) Shrouding: Unshrouded Overall Contact Length: 0.236" (6.00mm) Insulation Material: Liquid Crystal Polymer (LCP) Contact Length - Mating: 0.079" (2.00mm) |
на замовлення 3838 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
BC020-06-A-0200-0300-L-G | GCT |
Board to Board & Mezzanine Connectors 6w, 1.0mm Pitch Pin Hdr, SIL, TH, Vert, GF, Box |
на замовлення 2255 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. | ||||||||||||
 |
BC020-06-A-0200-0300-L-G | GCT |
Description: GCT - BC020-06-A-0200-0300-L-G - Stiftleiste, Board-to-Board, 1 mm, 1 Reihe(n), 6 Kontakt(e), Durchsteckmontage, gerade, BC020 tariffCode: 85366930 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Kupferlegierung isCanonical: Y Steckverbinderkragen: Ohne Kragen Anzahl der Kontakte: 6Kontakt(e) SVHC: No SVHC (27-Jun-2024) Steckverbindersysteme: Board-to-Board Steckverbinder: Stiftleiste Produktpalette: BC020 productTraceability: No Kontaktanschluss: Durchsteckmontage, gerade usEccn: EAR99 Anzahl der Reihen: 1Reihe(n) Rastermaß: 1mm |
на замовлення 1622 шт: термін постачання 21-31 дні (днів) |
В кошику од. на суму грн. | ||||||||||||
| BC020-06-A-0200-0300-L-G | Global Connector Technology |
Conn Unshrouded Header HDR 6 POS 1mm Solder ST Thru-Hole Box |
на замовлення 2534 шт: термін постачання 21-31 дні (днів) |
|
| BC020-06-A-0200-0300-L-G |
|
Виробник: GCT
Description: 6POS 1.0MM PITCH PIN HEADER, SIL
Packaging: Box
Connector Type: Header
Voltage Rating: 250VAC/DC
Current Rating (Amps): 1A per Contact
Mounting Type: Through Hole
Number of Positions: 6
Number of Rows: 1
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.039" (1.00mm)
Shrouding: Unshrouded
Overall Contact Length: 0.236" (6.00mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.079" (2.00mm)
Description: 6POS 1.0MM PITCH PIN HEADER, SIL
Packaging: Box
Connector Type: Header
Voltage Rating: 250VAC/DC
Current Rating (Amps): 1A per Contact
Mounting Type: Through Hole
Number of Positions: 6
Number of Rows: 1
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.039" (1.00mm)
Shrouding: Unshrouded
Overall Contact Length: 0.236" (6.00mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.079" (2.00mm)
на замовлення 3838 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 5+ | 73.74 грн |
| 10+ | 59.94 грн |
| 100+ | 50.97 грн |
| 500+ | 42.69 грн |
| 1000+ | 40.65 грн |
| BC020-06-A-0200-0300-L-G |
|
Виробник: GCT
Board to Board & Mezzanine Connectors 6w, 1.0mm Pitch Pin Hdr, SIL, TH, Vert, GF, Box
Board to Board & Mezzanine Connectors 6w, 1.0mm Pitch Pin Hdr, SIL, TH, Vert, GF, Box
на замовлення 2255 шт:
термін постачання 21-30 дні (днів)
| BC020-06-A-0200-0300-L-G |
|
Виробник: GCT
Description: GCT - BC020-06-A-0200-0300-L-G - Stiftleiste, Board-to-Board, 1 mm, 1 Reihe(n), 6 Kontakt(e), Durchsteckmontage, gerade, BC020
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
isCanonical: Y
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 6Kontakt(e)
SVHC: No SVHC (27-Jun-2024)
Steckverbindersysteme: Board-to-Board
Steckverbinder: Stiftleiste
Produktpalette: BC020
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
usEccn: EAR99
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 1mm
Description: GCT - BC020-06-A-0200-0300-L-G - Stiftleiste, Board-to-Board, 1 mm, 1 Reihe(n), 6 Kontakt(e), Durchsteckmontage, gerade, BC020
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
isCanonical: Y
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 6Kontakt(e)
SVHC: No SVHC (27-Jun-2024)
Steckverbindersysteme: Board-to-Board
Steckverbinder: Stiftleiste
Produktpalette: BC020
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
usEccn: EAR99
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 1mm
на замовлення 1622 шт:
термін постачання 21-31 дні (днів)
| BC020-06-A-0200-0300-L-G |
|
Виробник: Global Connector Technology
Conn Unshrouded Header HDR 6 POS 1mm Solder ST Thru-Hole Box
Conn Unshrouded Header HDR 6 POS 1mm Solder ST Thru-Hole Box
на замовлення 2534 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 163+ | 86.99 грн |
| 172+ | 82.24 грн |
| 200+ | 78.02 грн |
| 300+ | 72.81 грн |
| 500+ | 64.94 грн |
| 1000+ | 60.65 грн |
