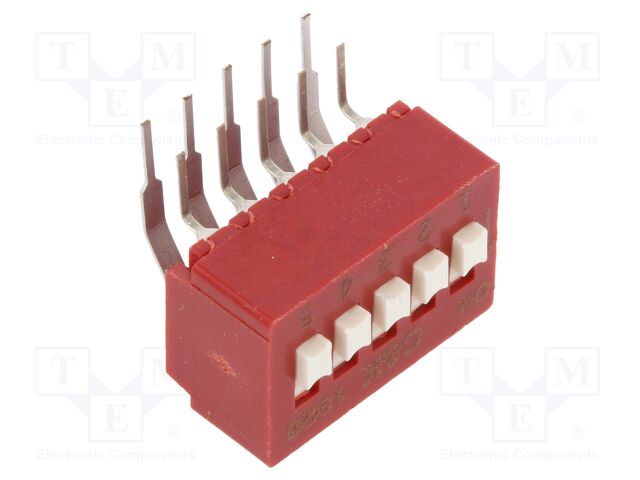

BD05AV C&K
Виробник: C&K
Category: Dip-Switches
Description: Switch: DIP-SWITCH; Poles number: 5; 0.1A/50VDC; Pos: 2; -40÷85°C
Type of switch: DIP-SWITCH
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPST
DC contacts rating @R: 0.1A / 50V DC
Mounting: SMT; vertical
Leads: for PCB
Body dimensions: 9.65x6.73x14.73mm
Min. insulation resistance: 1GΩ
Electrical life: 10000 cycles
Terminal pitch: 2.54mm
Kind of package: tube
Operating temperature: -40...85°C
Poles number: 5
Quantity in set/package: 35pcs.
Mechanical durability: 10000 cycles
Manufacturer series: BD
| Кількість | Ціна |
|---|---|
| 3+ | 189.62 грн |
| 35+ | 170.15 грн |
| 105+ | 160.84 грн |
| 735+ | 159.99 грн |
Відгуки про товар
Написати відгук
Технічний опис BD05AV C&K
Category: Dip-Switches, Description: Switch: DIP-SWITCH; Poles number: 5; 0.1A/50VDC; Pos: 2; -40÷85°C, Type of switch: DIP-SWITCH, Number of positions: 2, Stable positions number: 2, Contacts configuration: SPST, DC contacts rating @R: 0.1A / 50V DC, Mounting: SMT; vertical, Leads: for PCB, Body dimensions: 9.65x6.73x14.73mm, Min. insulation resistance: 1GΩ, Electrical life: 10000 cycles, Terminal pitch: 2.54mm, Kind of package: tube, Operating temperature: -40...85°C, Poles number: 5, Quantity in set/package: 35pcs., Mechanical durability: 10000 cycles, Manufacturer series: BD.
Інші пропозиції BD05AV за ціною від 156.73 грн до 278.14 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BD05AV | C&K |
Description: SWITCH SLIDE DIP SPST 0.1A 5V Packaging: Tube Contact Finish: Gold Voltage Rating: 5VDC Current Rating (Amps): 100mA Mounting Type: Through Hole, Right Angle Pitch: 0.100" (2.54mm), Full Circuit: SPST Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Actuator Type: Slide (Standard) Height Above Board: 0.380" (9.64mm) Actuator Level: Raised Washable: Yes Contact Material: Phosphor Bronze Part Status: Active Number of Positions: 5 |
на замовлення 510 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
BD05AV | C&K |
DIP Switches/SIP Switches R/A STD PROF 5 POS |
на замовлення 1301 шт: термін постачання 21-30 дні (днів) |
|
| BD05AV |
|
Виробник: C&K
Description: SWITCH SLIDE DIP SPST 0.1A 5V
Packaging: Tube
Contact Finish: Gold
Voltage Rating: 5VDC
Current Rating (Amps): 100mA
Mounting Type: Through Hole, Right Angle
Pitch: 0.100" (2.54mm), Full
Circuit: SPST
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Actuator Type: Slide (Standard)
Height Above Board: 0.380" (9.64mm)
Actuator Level: Raised
Washable: Yes
Contact Material: Phosphor Bronze
Part Status: Active
Number of Positions: 5
Description: SWITCH SLIDE DIP SPST 0.1A 5V
Packaging: Tube
Contact Finish: Gold
Voltage Rating: 5VDC
Current Rating (Amps): 100mA
Mounting Type: Through Hole, Right Angle
Pitch: 0.100" (2.54mm), Full
Circuit: SPST
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Actuator Type: Slide (Standard)
Height Above Board: 0.380" (9.64mm)
Actuator Level: Raised
Washable: Yes
Contact Material: Phosphor Bronze
Part Status: Active
Number of Positions: 5
на замовлення 510 шт:
термін постачання 21-31 дні (днів)| Кількість | Ціна |
|---|---|
| 2+ | 272.16 грн |
| 10+ | 219.49 грн |
| 35+ | 197.76 грн |
| 105+ | 169.46 грн |
| 280+ | 156.73 грн |
