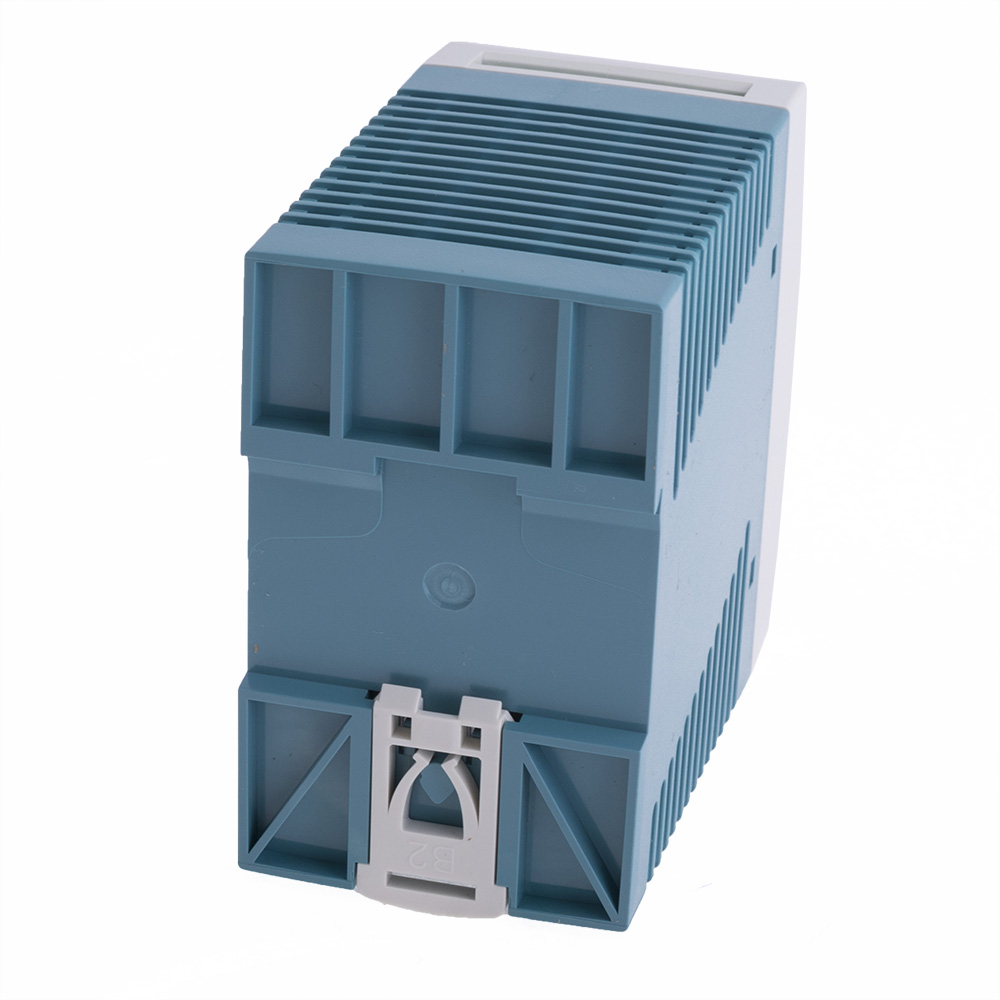

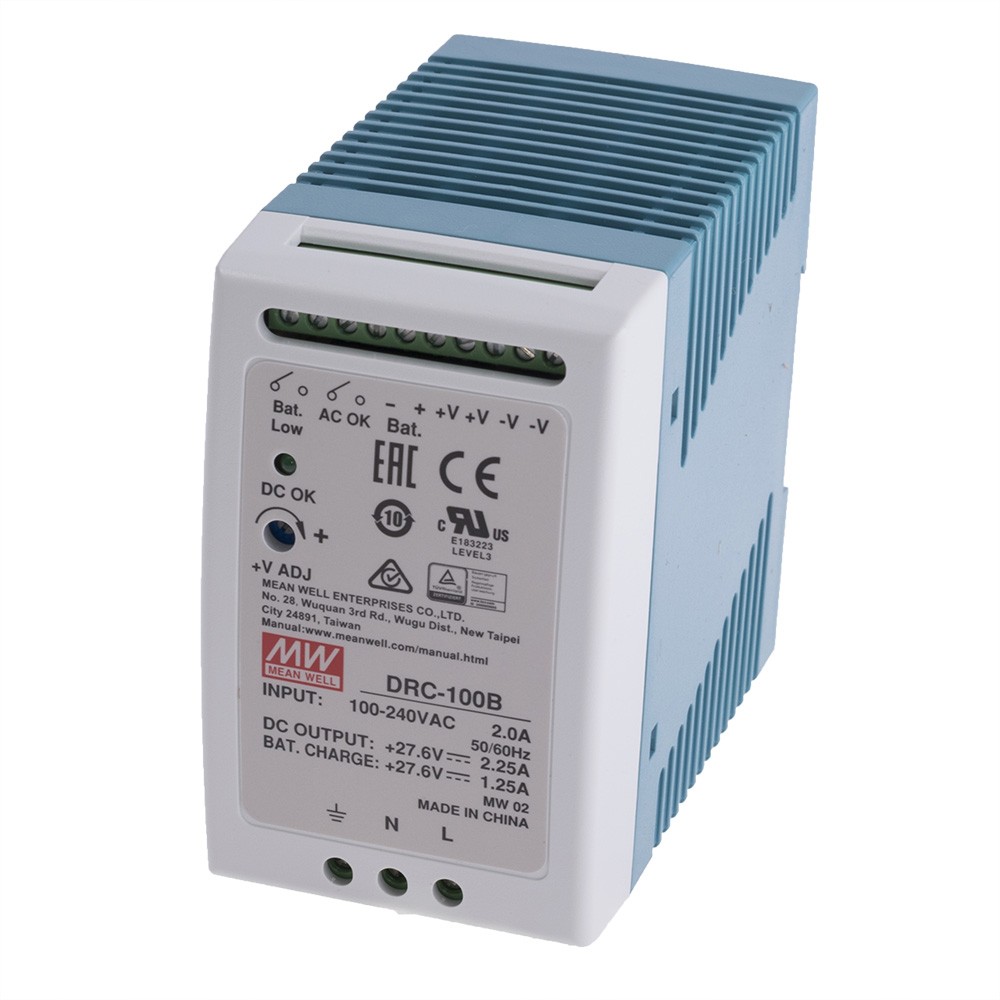

Блок живлення на DIN-рейку 100W 27,6V/27,6V з функцією ДБЖ UPS DRC-100B MeanWell

Виробник: MEAN WELL
Category: Din Rail Mounting Power Supplies
Description: Power supply: switching; buffer,for DIN rail; 96.6W; 27.6VDC
Mounting: for DIN rail mounting
Protection: anti-overload OPP; anti-overvoltage OVP; battery polarity; discharge below; overheating OTP; short circuit protection SCP
Body dimensions: 55x90x100mm
Operating temperature: -30...70°C
Kind of power supply: buffer; for DIN rail
Type of power supply: switching
Efficiency: 89%
Power: 96.6W
Output voltage: 27.6V DC
Caution!: rated parameters obtained at full load
Number of outputs: 2
Additional functions: LED status indicator; UPS
Output voltage 2: 27.6V DC
Supply voltage: 90...264V AC; 127...370V DC
Manufacturer series: DRC-100
Output current 2: 1.25A
Electrical connection: terminal block
Output current: 2.25A

Виробник: MEAN WELL USA Inc.
Description: AC/DC DIN RAIL SUP 2X27.6V 97W
Power (Watts): 97W
Features: Adjustable Output, Universal Input
Packaging: Box
Size / Dimension: 3.94" L x 2.17" W x 3.54" H (100.0mm x 55.0mm x 90.0mm)
Operating Temperature: -30°C ~ 70°C (With Derating)
Applications: ITE (Commercial)
Input Type: AC or DC
Approval Agency: CB, CE, cURus, TUV
Efficiency: 89%
Current - Output (Max): 2.25A, 1.25A
Voltage - Output 1: 27.6V
Voltage - Output 2: 27.6V
Part Status: Active
Number of Outputs: 2
Voltage - Isolation: 3 kV
AC Voltage - Input: 90 ~ 264 VAC
DC Voltage - Input (Min): 127V
DC Voltage - Input (Max): 370V

Виробник: MEAN WELL
Single output industrial; DIN rail; power supply; 96,6W; 27.6V; 2.25A; dimensions: 55x90x100mm; weight 0.370 kg DRC-100B Mean Well Power supply ZA DRC-100B
кількість в упаковці: 2 шт

Виробник: Mean-Well USA, Inc.
AC/DC Power Supply Dual-OUT 27.6V/27.6V 2.25A/1.25A 96.6W 13-Pin

Виробник: Mean-Well USA, Inc.
AC/DC Power Supply Dual-OUT 27.6V/27.6V 2.25A/1.25A 96.6W 13-Pin

Виробник: MEAN WELL
Power Supplies - DIN Rail Mount 96.6W CH1 27.6V2.25A CH2 27.6V 1.25A
