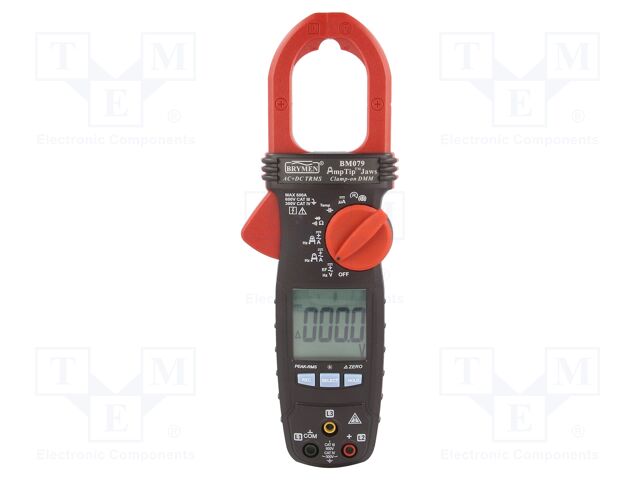

BM079

Виробник: BRYMEN
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,AC/DC pincers type; Øcable: 35mm
Capacitance measuring range: 200µF
Capacitance measuring accuracy: ±(2%+ 4 digit)
Measuring instrument features: contactless voltage detector; HOLD function; logging of MAX, MIN, AVG; low-pass filter for measuring drive parameters
Power supply: battery LR03 AAA 1,5V x2
DC voltage measuring accuracy: ±(1% + 5 digit)
Standard equipment: case; crocodile clips; K-type temperature probe; test leads
Kind of meter: AC/DC pincers type; digital
DC current measuring accuracy: ±(2% + 5 digit)
Kind of display used: LCD
Temperature measuring range: -40...400°C
Continuity test: acoustic indication
True effective value measurement: True RMS AC; True RMS AC+DC
DC current measuring range: 0.2mA; 2mA; 60A; 600A
DC voltage measuring range: 600V
AC current measuring accuracy: ±(1.8% + 5 digit)
Max. diameter of measured cable: 35mm
Diode test: 0.3mA @2V
Dimensions: 223x76x37mm
AC voltage measuring range: 600V
Resistance measuring range: 600Ω; 6kΩ; 60kΩ
Temperature measurement accuracy: ±(1% + 1°C)
Resistance measuring accuracy: ±(1%+5 digit)
AC voltage measuring accuracy: ±(1% + 5 digit)
Type of meter: multifunction
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; phase sequence; resistance; temperature
Display parameters: (6000)
AC current measuring range: 60A; 600A
