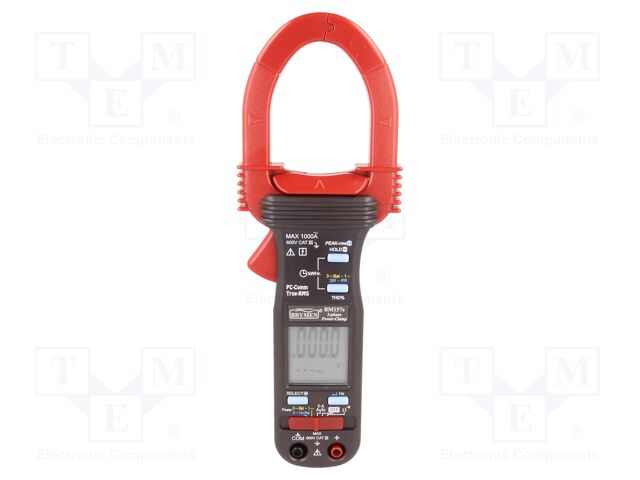

BM157S BRYMEN

Category: Meters and AC Clamp Probes
Description: Meter: power; pincers type; LCD; True RMS AC; VAC: 100mV÷600V; 224g
Illumination: yes
Power supply: battery LR03 AAA 1,5V x2
Kind of display used: LCD
Dimensions: 224x78x40mm
Standard equipment: case; test leads
Measuring instrument features: A-lags-V - indicates nature of measured circuit (inductive or capacitive); automatically selects AAC, VAC, VDC measurement on the basis of measured signal; automatic power-off; autoranging; HOLD function; kWh - measures and records energy consumption in 1- and 3-phase systems with blanced load; PEAK HOLD function for AC measurements; PF - measures total power factor as active to apparent power quotient; THD%-F immediately evaluates harmonic content in measured voltage and current signals
Type of meter: power
Weight with battery: 224g
Optional equipment: KITBRUA-13X software; KITRS232E software
Continuity test: acoustic indication; 50Ω...250Ω
Sampling: 1x/s (Hz); 2x/s
Pollution degree: 2
Harmonic content measurement: 0...99,99%
Harmonic content measuring accuracy: ±(1% + 6 digits)
Max. diameter of measured cable: 45mm
True effective value measurement: True RMS AC
Measurement: AC current; active power; AC voltage; apparent power; DC voltage; energy; frequency; power factor; reactive power; resistance
Reactive power measurement: 0...600kVAR
Apparent power measurement: 0...600kVA
Kind of meter: pincers type
Bandwidth for AC voltage measurements: 40...500Hz
AC current measuring range: 10mA...40A; 400A; 1kA
Resistance measuring range: 100mΩ...999.9Ω
Bandwidth for AC current measurements: 40...500Hz
DC voltage measuring range: 100mV...600V
AC voltage measuring range: 100mV...600V
Frequency measuring range: 10mHz...5Hz; 500Hz
Power factor measurement: 0.01...0.99
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Frequency measuring accuracy: ±(0.5%+4 digit)
AC current measuring accuracy: ±(1% + 5 digit)
DC voltage measuring accuracy: ±(0.5% + 5 digit)
AC voltage measuring accuracy: ±(0.5% + 5 digit)
Resistance measuring accuracy: ±(1%+6 digit)
Active power measuring accuracy: ±(4.5% + 6 digit)
Reactive power measuring accuracy: ±(4.5% + 6 digit)
Apparent power measuring accuracy: ±(3.5% + 6 digit)
Interface: RS232 (option); USB
Conform to the norm: CAT III 600V; EN 61010
на замовлення 2 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна |
---|---|
1+ | 12911.57 грн |
