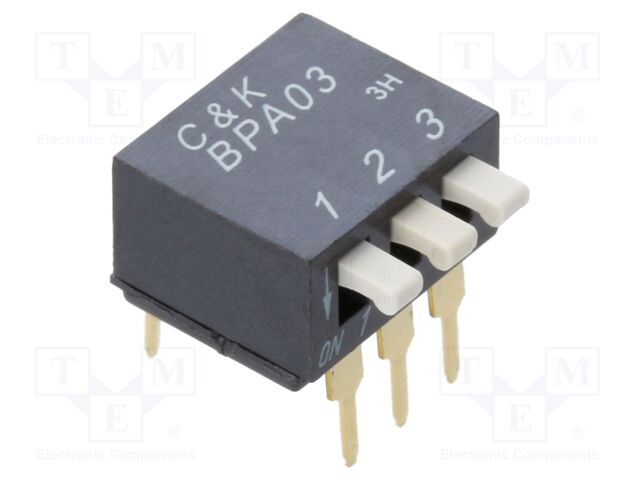

BPA03B C&K
Виробник: C&K
Description: SWITCH PIANO DIP SPST 0.1A 5V
Operating Temperature: -20°C ~ 85°C
Circuit: SPST
Pitch: 0.100" (2.54mm), Full
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 100mA
Voltage Rating: 5VDC
Contact Finish: Gold
Packaging: Tube
Number of Positions: 3
Part Status: Active
Contact Material: Beryllium Copper
Washable: Yes
Actuator Level: Raised
Height Above Board: 0.287" (7.30mm)
Actuator Type: Piano
Termination Style: PC Pin
| Кількість | Ціна |
|---|---|
| 2+ | 193.04 грн |
| 10+ | 155.72 грн |
| 45+ | 137.41 грн |
| 135+ | 117.71 грн |
| 270+ | 111.31 грн |
| 540+ | 105.49 грн |
Відгуки про товар
Написати відгук
Технічний опис BPA03B C&K
Category: Dip-Switches, Description: Switch: DIP-SWITCH; Poles number: 3; ON-OFF; 0.025A/24VDC; Pos: 2, Mounting: THT, Manufacturer series: BPA, Operating temperature: -20...85°C, Leads: for PCB, Contact plating: gold-plated; nickel plated, Switching method: ON-OFF, Kind of package: tube, Contacts configuration: SPST, Terminal pitch: 2.54mm, Body dimensions: 6x8.15x9.6mm, DC contacts rating @R: 25mA / 24V DC, Max. contact resistance:: 50mΩ, Number of positions: 2, Stable positions number: 2, Poles number: 3, Quantity in set/package: 45pcs., Mechanical durability: 1000 cycles, Electrical life: 1000 cycles, Min. insulation resistance: 0.1GΩ, Contact material: brass, Type of switch: DIP-SWITCH.
