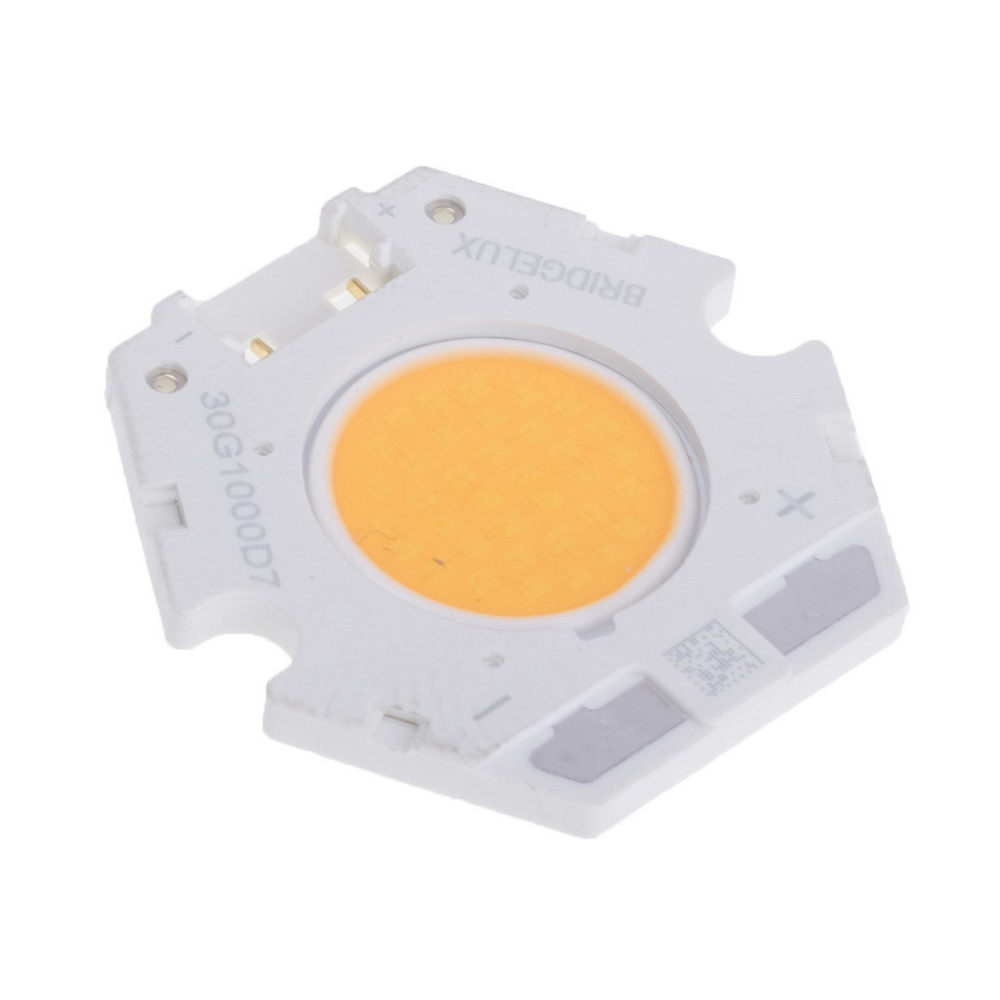

BXRC-30G1000-D-73 BRIDGELUX
Виробник: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 8.9W; 3000K; 1054lm; 120°; Front: flat; CRImin: 90
Colour temperature: 3000K
Power: 8.9W
Luminosity: 1054lm
Viewing angle: 120°
LED current: 350mA
Light source efficiency: 119lm/W
Operating voltage: 25.3V DC
LED version: COB
Number of pins: 4
Manufacturer series: VERO® 10
Min. colour rendering index: 90
Type of diode: power LED
Storage temperature: -40...105°C
Binning: 3-STEP
Thermal resistance: 0.49K/W
Front: flat
Components: Pico-EZMate
| Кількість | Ціна |
|---|---|
| 2+ | 347.33 грн |
| 5+ | 286.12 грн |
Відгуки про товар
Написати відгук
Технічний опис BXRC-30G1000-D-73 BRIDGELUX
Description: LED COB VERO WHT STARBRD 3000K, Features: With Connector, Packaging: Tray, Color: White, Warm, Size / Dimension: 20.00mm Dia, Type: Chip On Board (COB), Configuration: Starboard, Voltage - Forward (Vf) (Typ): 26V, Height: 1.90mm, Current - Test: 350mA, Viewing Angle: 120°, Lens Type: Flat, Current - Max: 700mA, Lumens/Watt @ Current - Test: 129 lm/W, CCT (K): 3000K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 90, Light Emitting Surface (LES): 9.90mm Dia, Temperature - Test: 25°C, Luminous Flux @ Current/Temperature: 1172lm (Typ).
Інші пропозиції BXRC-30G1000-D-73 за ціною від 194.25 грн до 226.27 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BXRC-30G1000-D-73 | Bridgelux |
Description: LED COB VERO WHT STARBRD 3000K Features: With Connector Packaging: Tray Color: White, Warm Size / Dimension: 20.00mm Dia Type: Chip On Board (COB) Configuration: Starboard Voltage - Forward (Vf) (Typ): 26V Height: 1.90mm Current - Test: 350mA Viewing Angle: 120° Lens Type: Flat Current - Max: 700mA Lumens/Watt @ Current - Test: 129 lm/W CCT (K): 3000K 3-Step MacAdam Ellipse CRI (Color Rendering Index): 90 Light Emitting Surface (LES): 9.90mm Dia Temperature - Test: 25°C Luminous Flux @ Current/Temperature: 1172lm (Typ) |
на замовлення 735 шт: термін постачання 21-31 дні (днів) |
|
| BXRC-30G1000-D-73 |
|
Виробник: Bridgelux
Description: LED COB VERO WHT STARBRD 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 26V
Height: 1.90mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 129 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1172lm (Typ)
Description: LED COB VERO WHT STARBRD 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 26V
Height: 1.90mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 129 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1172lm (Typ)
на замовлення 735 шт:
термін постачання 21-31 дні (днів)| Кількість | Ціна |
|---|---|
| 2+ | 226.27 грн |
| 50+ | 209.79 грн |
| 100+ | 194.25 грн |
