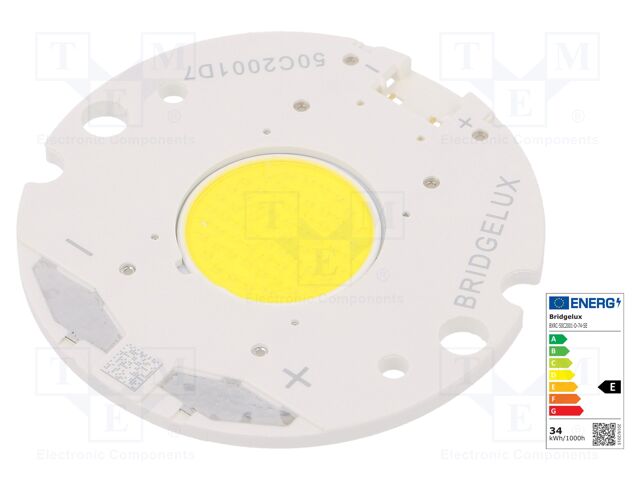

BXRC-50C2001-D-74 BRIDGELUX
Виробник: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 15.5W; 5000K; 2609lm; 120°; Front: flat; Ø36.2mm
Type of diode: power LED
Operating voltage: 30.9V DC
Dimensions: Ø36.2mm
Viewing angle: 120°
LED current: 500mA
Power: 15.5W
Shape: round
Manufacturer series: VERO® 13
Storage temperature: -40...105°C
Thermal resistance: 0.34K/W
Min. colour rendering index: 70
Light source efficiency: 169lm/W
Luminosity: 2609lm
Colour temperature: 5000K
Binning: 4-STEP
LED version: COB
Front: flat
| Кількість | Ціна |
|---|---|
| 2+ | 377.41 грн |
| 5+ | 314.06 грн |
| 15+ | 285.27 грн |
Відгуки про товар
Написати відгук
Технічний опис BXRC-50C2001-D-74 BRIDGELUX
Description: LED COB VERO 13 WHT RND 5000K, Packaging: Tray, Features: With Connector, Color: White, Cool, Size / Dimension: 36.20mm Dia, Type: Chip On Board (COB), Configuration: Round, Voltage - Forward (Vf) (Typ): 30.9V, Height: 1.90mm, Current - Test: 500mA, Lens Type: Flat, Current - Max: 1A, Lumens/Watt @ Current - Test: 164 lm/W, CCT (K): 5000K 4-Step MacAdam Ellipse, CRI (Color Rendering Index): 70, Light Emitting Surface (LES): 13.20mm Dia, Temperature - Test: 85°C, Luminous Flux @ Current/Temperature: 2528lm (Typ), Part Status: Active.
Інші пропозиції BXRC-50C2001-D-74 за ціною від 322.59 грн до 375.01 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BXRC-50C2001-D-74 | Bridgelux |
Description: LED COB VERO 13 WHT RND 5000K Packaging: Tray Features: With Connector Color: White, Cool Size / Dimension: 36.20mm Dia Type: Chip On Board (COB) Configuration: Round Voltage - Forward (Vf) (Typ): 30.9V Height: 1.90mm Current - Test: 500mA Lens Type: Flat Current - Max: 1A Lumens/Watt @ Current - Test: 164 lm/W CCT (K): 5000K 4-Step MacAdam Ellipse CRI (Color Rendering Index): 70 Light Emitting Surface (LES): 13.20mm Dia Temperature - Test: 85°C Luminous Flux @ Current/Temperature: 2528lm (Typ) Part Status: Active |
на замовлення 175 шт: термін постачання 21-31 дні (днів) |
|
| BXRC-50C2001-D-74 |
|
Виробник: Bridgelux
Description: LED COB VERO 13 WHT RND 5000K
Packaging: Tray
Features: With Connector
Color: White, Cool
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 30.9V
Height: 1.90mm
Current - Test: 500mA
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 164 lm/W
CCT (K): 5000K 4-Step MacAdam Ellipse
CRI (Color Rendering Index): 70
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2528lm (Typ)
Part Status: Active
Description: LED COB VERO 13 WHT RND 5000K
Packaging: Tray
Features: With Connector
Color: White, Cool
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 30.9V
Height: 1.90mm
Current - Test: 500mA
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 164 lm/W
CCT (K): 5000K 4-Step MacAdam Ellipse
CRI (Color Rendering Index): 70
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2528lm (Typ)
Part Status: Active
на замовлення 175 шт:
термін постачання 21-31 дні (днів)| Кількість | Ціна |
|---|---|
| 1+ | 375.01 грн |
| 50+ | 348.38 грн |
| 100+ | 322.59 грн |
