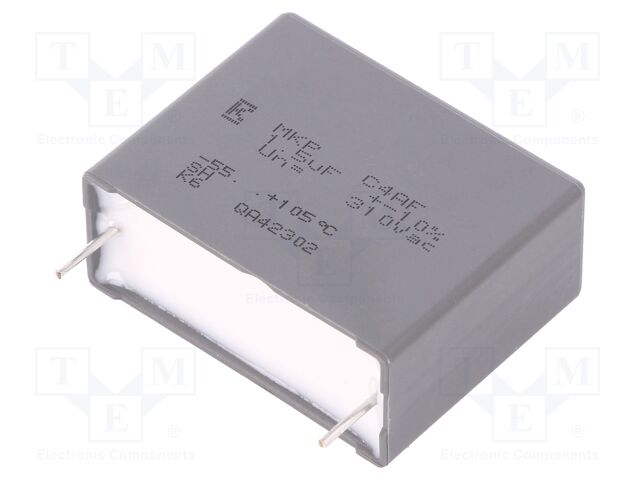

C4AF9BU4150A1XK KEMET
Виробник: KEMET
Description: CAP FILM 1.5UF 10% 310VAC RADIAL
Tolerance: ±10%
Packaging: Bulk
Package / Case: Radial
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 105°C
Applications: Automotive
Lead Spacing: 1.083" (27.50mm)
Termination: PC Pins
Ratings: AEC-Q200
Dielectric Material: Polypropylene (PP), Metallized
Voltage Rating - AC: 310V
Height - Seated (Max): 0.992" (25.20mm)
Capacitance: 1.5 µF
ESR (Equivalent Series Resistance): 9.5 mOhms
Size / Dimension: 1.240" L x 0.512" W (31.50mm x 13.00mm)
Відгуки про товар
Написати відгук
Технічний опис C4AF9BU4150A1XK KEMET
Category: THT Film Capacitors, Description: Capacitor: polypropylene; 1.5uF; Uoper: 630VDC; Uoper max: 310VDC, Type of capacitor: polypropylene, Capacitance: 1.5µF, Operating voltage: 630V DC, Mounting: THT, Tolerance: ±10%, Operating temperature: -55...105°C, Manufacturer series: C4AF, Terminal pitch: 27.5mm, Part status: Not recommended for new designs, ESR value: 9.5mΩ, Body dimensions: 31.5x25x13mm, Max. operating current: 5.4A, Pulse resistance: 45V/μs, Max. forward impulse current: 68A, Max. operating voltage: 310V DC, Climate class: 55/105/56; IEC 60068-1, Conform to the norm: AEC-Q200, Capacitor application: filtering.
Інші пропозиції C4AF9BU4150A1XK
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
|---|---|---|---|---|---|
 |
C4AF9BU4150A1XK | KEMET |
Category: THT Film Capacitors Description: Capacitor: polypropylene; 1.5uF; Uoper: 630VDC; Uoper max: 310VDC Type of capacitor: polypropylene Capacitance: 1.5µF Operating voltage: 630V DC Mounting: THT Tolerance: ±10% Operating temperature: -55...105°C Manufacturer series: C4AF Terminal pitch: 27.5mm Part status: Not recommended for new designs ESR value: 9.5mΩ Body dimensions: 31.5x25x13mm Max. operating current: 5.4A Pulse resistance: 45V/μs Max. forward impulse current: 68A Max. operating voltage: 310V DC Climate class: 55/105/56; IEC 60068-1 Conform to the norm: AEC-Q200 Capacitor application: filtering |
товару немає в наявності |
В кошику од. на суму грн. |
| C4AF9BU4150A1XK |
|
Виробник: KEMET
Category: THT Film Capacitors
Description: Capacitor: polypropylene; 1.5uF; Uoper: 630VDC; Uoper max: 310VDC
Type of capacitor: polypropylene
Capacitance: 1.5µF
Operating voltage: 630V DC
Mounting: THT
Tolerance: ±10%
Operating temperature: -55...105°C
Manufacturer series: C4AF
Terminal pitch: 27.5mm
Part status: Not recommended for new designs
ESR value: 9.5mΩ
Body dimensions: 31.5x25x13mm
Max. operating current: 5.4A
Pulse resistance: 45V/μs
Max. forward impulse current: 68A
Max. operating voltage: 310V DC
Climate class: 55/105/56; IEC 60068-1
Conform to the norm: AEC-Q200
Capacitor application: filtering
Category: THT Film Capacitors
Description: Capacitor: polypropylene; 1.5uF; Uoper: 630VDC; Uoper max: 310VDC
Type of capacitor: polypropylene
Capacitance: 1.5µF
Operating voltage: 630V DC
Mounting: THT
Tolerance: ±10%
Operating temperature: -55...105°C
Manufacturer series: C4AF
Terminal pitch: 27.5mm
Part status: Not recommended for new designs
ESR value: 9.5mΩ
Body dimensions: 31.5x25x13mm
Max. operating current: 5.4A
Pulse resistance: 45V/μs
Max. forward impulse current: 68A
Max. operating voltage: 310V DC
Climate class: 55/105/56; IEC 60068-1
Conform to the norm: AEC-Q200
Capacitor application: filtering
