CEDM7004 BK PBFREE Central Semiconductor Corp

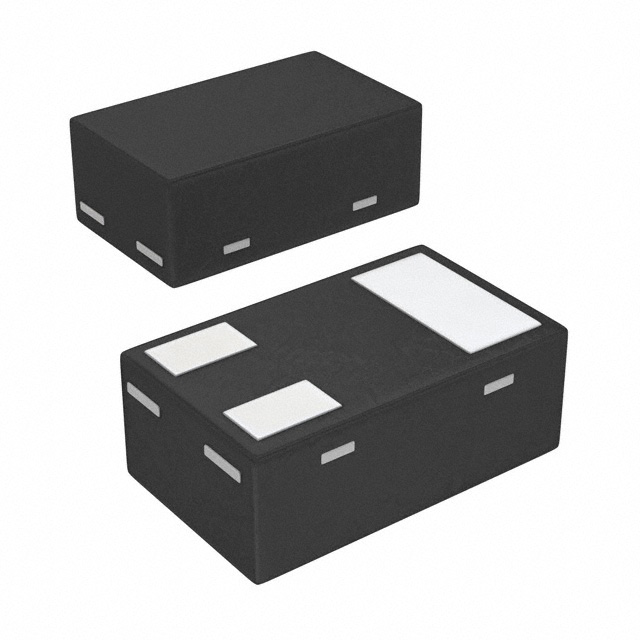

Description: MOSFET N-CH 30V 1.78A SOT-883, Input Capacitance (Ciss) (Max) @ Vds: 43 pF @ 25 V, Gate Charge (Qg) (Max) @ Vgs: 0.79 nC @ 4.5 V, Drain to Source Voltage (Vdss): 30 V, Vgs (Max): 8V, Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V, Supplier Device Package: SOT-883, Vgs(th) (Max) @ Id: 1V @ 250µA, Power Dissipation (Max): 100mW (Ta), Rds On (Max) @ Id, Vgs: 460mOhm @ 200mA, 4.5V, Current - Continuous Drain (Id) @ 25°C: 1.78A (Ta), FET Type: N-Channel, Technology: MOSFET (Metal Oxide), Operating Temperature: -65°C ~ 150°C (TJ), Mounting Type: Surface Mount, Package / Case: SC-101, SOT-883, Packaging: Box.
