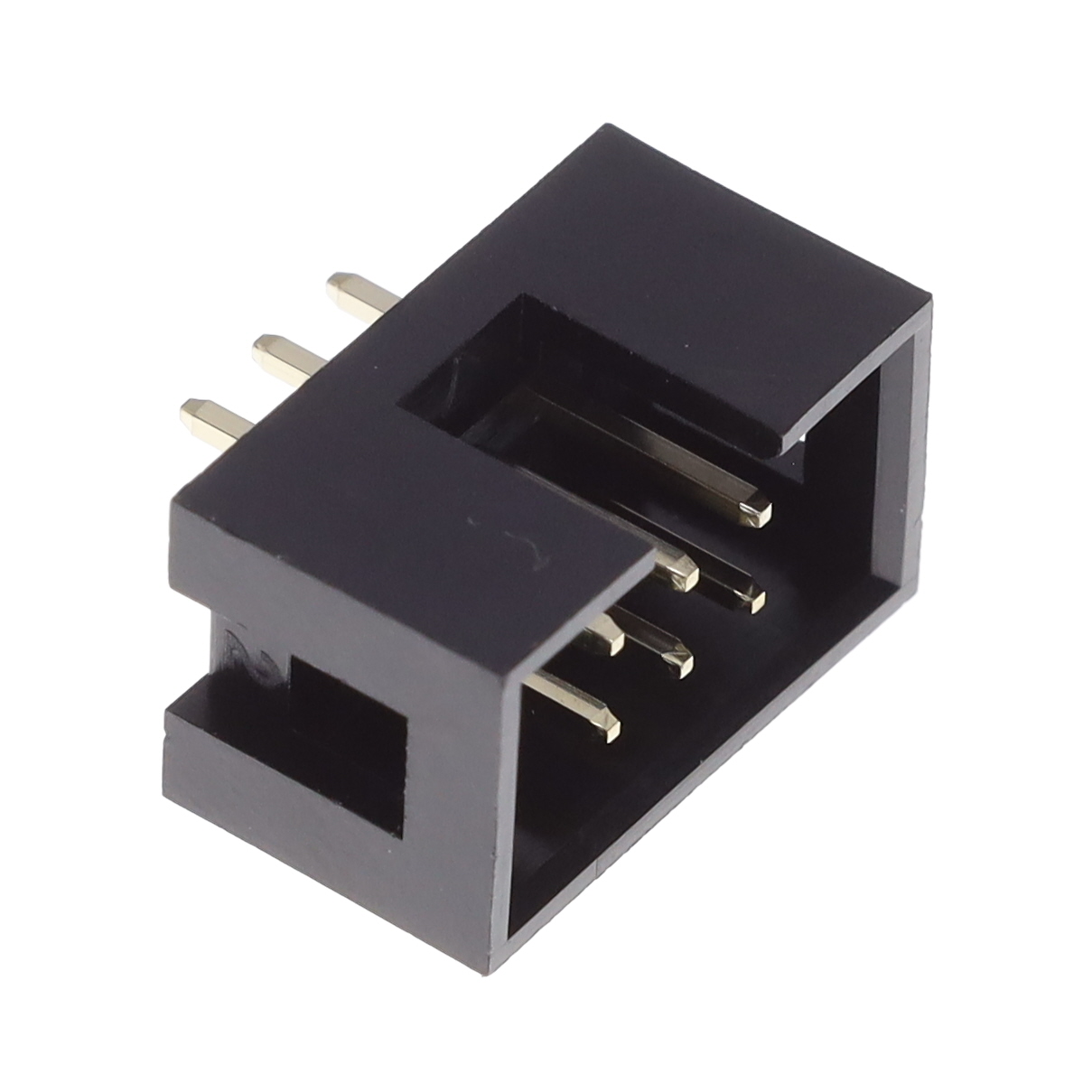

CH87062V200 Cvilux USA

Description: 2.54MM(.100) DUAL ROW BOARD STRA, Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.358" (9.10mm), Contact Length - Post: 0.122" (3.10mm), Contact Shape: Square, Contact Finish - Post: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Detent Lock, Contact Type: Male Pin, Operating Temperature: -40°C ~ 105°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 6, Mounting Type: Through Hole, Current Rating (Amps): 3A, Voltage Rating: 250VAC, Connector Type: Header, Packaging: Tray.
