| Кількість | Ціна |
|---|---|
| 3+ | 157.86 грн |
| 50+ | 134.17 грн |
| 86+ | 79.39 грн |
| 516+ | 78.70 грн |
| 1032+ | 73.87 грн |
Відгуки про товар
Написати відгук

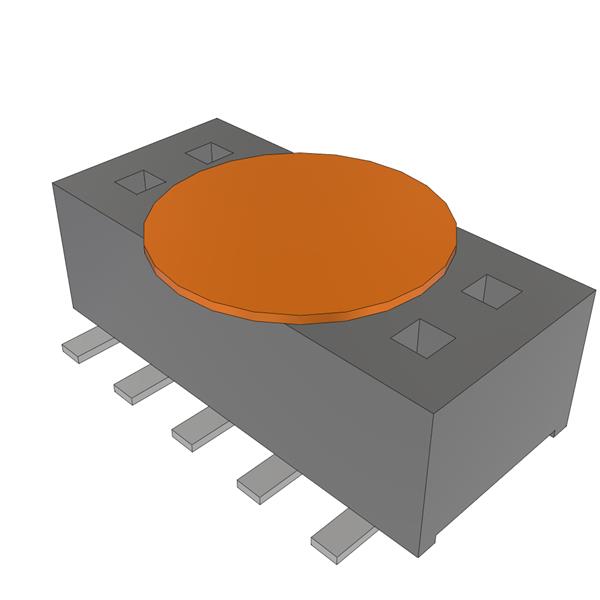

Технічний опис CLP-105-02-L-D-K Samtec
Description: CONN RCPT 10POS 0.05 GOLD SMD, Number of Rows: 2, Row Spacing - Mating: 0.050" (1.27mm), Insulation Height: 0.084" (2.14mm), Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Female Socket, Operating Temperature: -55°C ~ 125°C, Style: Board to Board, Number of Positions: 10, Mounting Type: Surface Mount, Current Rating (Amps): 3.3A per Contact, Voltage Rating: 240VAC, 330VDC, Connector Type: Receptacle, Features: Pick and Place, Packaging: Tube.
Інші пропозиції CLP-105-02-L-D-K за ціною від 118.48 грн до 226.00 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CLP-105-02-L-D-K | Samtec Inc. |
 Description: CONN RCPT 10POS 0.05 GOLD SMDNumber of Rows: 2 Row Spacing - Mating: 0.050" (1.27mm) Insulation Height: 0.084" (2.14mm) Contact Finish - Post: Tin Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Mating: Gold Pitch - Mating: 0.050" (1.27mm) Insulation Color: Black Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Female Socket Operating Temperature: -55°C ~ 125°C Style: Board to Board Number of Positions: 10 Mounting Type: Surface Mount Current Rating (Amps): 3.3A per Contact Voltage Rating: 240VAC, 330VDC Connector Type: Receptacle Features: Pick and Place Packaging: Tube |
на замовлення 1117 шт: термін постачання 21-31 дні (днів) |
|
| CLP-105-02-L-D-K |
|
Виробник: Samtec Inc.
Description: CONN RCPT 10POS 0.05 GOLD SMD
Number of Rows: 2
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Height: 0.084" (2.14mm)
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Female Socket
Operating Temperature: -55°C ~ 125°C
Style: Board to Board
Number of Positions: 10
Mounting Type: Surface Mount
Current Rating (Amps): 3.3A per Contact
Voltage Rating: 240VAC, 330VDC
Connector Type: Receptacle
Features: Pick and Place
Packaging: Tube
Description: CONN RCPT 10POS 0.05 GOLD SMD
Number of Rows: 2
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Height: 0.084" (2.14mm)
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Female Socket
Operating Temperature: -55°C ~ 125°C
Style: Board to Board
Number of Positions: 10
Mounting Type: Surface Mount
Current Rating (Amps): 3.3A per Contact
Voltage Rating: 240VAC, 330VDC
Connector Type: Receptacle
Features: Pick and Place
Packaging: Tube
на замовлення 1117 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 226.00 грн |
| 10+ | 197.66 грн |
| 100+ | 174.13 грн |
| 500+ | 138.90 грн |
| 1000+ | 118.48 грн |
