| Кількість | Ціна |
|---|---|
| 3+ | 134.56 грн |
| 82+ | 118.89 грн |
| 533+ | 79.47 грн |
| 1025+ | 72.44 грн |
Відгуки про товар
Написати відгук

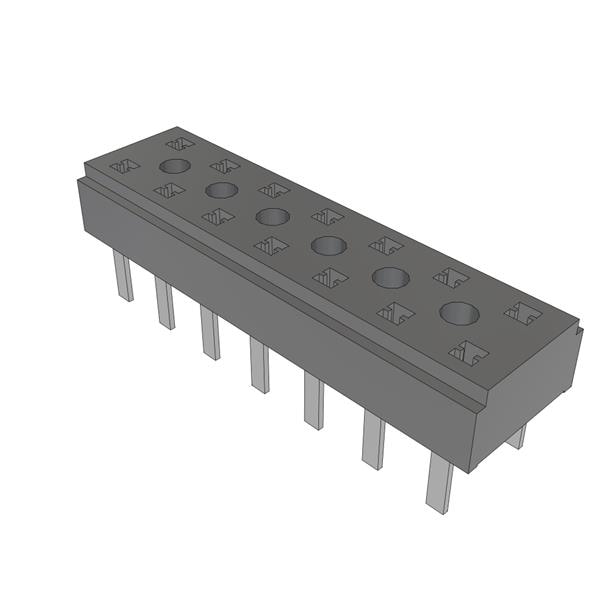

Технічний опис CLT-107-01-F-D Samtec
Description: CONN RCPT 14POS 0.079 GOLD PCB, Number of Rows: 2, Row Spacing - Mating: 0.079" (2.00mm), Insulation Height: 0.083" (2.10mm), Contact Length - Post: 0.085" (2.16mm), Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.079" (2.00mm), Insulation Color: Black, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Female Socket, Operating Temperature: -55°C ~ 125°C, Style: Board to Board, Number of Positions: 14, Mounting Type: Through Hole, Current Rating (Amps): 4.1A per Contact, Connector Type: Receptacle, Packaging: Tube.
Інші пропозиції CLT-107-01-F-D за ціною від 85.87 грн до 138.45 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CLT-107-01-F-D | Samtec Inc. |
 Description: CONN RCPT 14POS 0.079 GOLD PCBNumber of Rows: 2 Row Spacing - Mating: 0.079" (2.00mm) Insulation Height: 0.083" (2.10mm) Contact Length - Post: 0.085" (2.16mm) Contact Finish - Post: Tin Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Mating: Gold Pitch - Mating: 0.079" (2.00mm) Insulation Color: Black Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Female Socket Operating Temperature: -55°C ~ 125°C Style: Board to Board Number of Positions: 14 Mounting Type: Through Hole Current Rating (Amps): 4.1A per Contact Connector Type: Receptacle Packaging: Tube |
на замовлення 511 шт: термін постачання 21-31 дні (днів) |
|
| CLT-107-01-F-D |
|
Виробник: Samtec Inc.
Description: CONN RCPT 14POS 0.079 GOLD PCB
Number of Rows: 2
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Height: 0.083" (2.10mm)
Contact Length - Post: 0.085" (2.16mm)
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Female Socket
Operating Temperature: -55°C ~ 125°C
Style: Board to Board
Number of Positions: 14
Mounting Type: Through Hole
Current Rating (Amps): 4.1A per Contact
Connector Type: Receptacle
Packaging: Tube
Description: CONN RCPT 14POS 0.079 GOLD PCB
Number of Rows: 2
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Height: 0.083" (2.10mm)
Contact Length - Post: 0.085" (2.16mm)
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Female Socket
Operating Temperature: -55°C ~ 125°C
Style: Board to Board
Number of Positions: 14
Mounting Type: Through Hole
Current Rating (Amps): 4.1A per Contact
Connector Type: Receptacle
Packaging: Tube
на замовлення 511 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 138.45 грн |
| 50+ | 119.73 грн |
| 100+ | 101.63 грн |
| 500+ | 85.87 грн |
