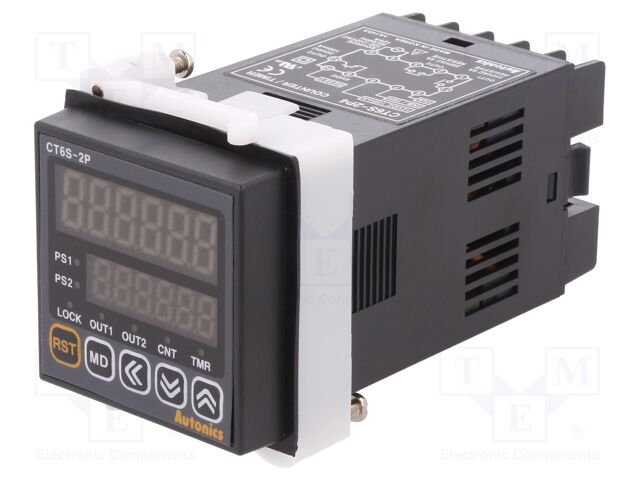

CT6S-2P4

CT6S-2P4 AUTONICS

CT-series.pdf CT-series-INS1.pdf CT-series-INS2.pdf
Виробник: AUTONICS
Category: Impulse Counters
Description: Counter: electronical; LED x2; time/pulses; SPST; IN 1: NPN,PNP
Kind of display used: LED x2
Power supply: external
Operating temperature: -10...55°C
The additional control inputs: RESET
Electrical connection: screw terminals
Counter operation modes: delayed switching off; delayed switching on; ON and OFF delay; pulse after a specified time
Display height 1: 10mm
Number of operation modes: 15
Counting range: 0,001s...99999,9h / 999999
IN2 max counting frequency: 10kHz
Output 2 electrical parameters: 30V AC / 5A; 250V AC / 5A
Display 2 height: 7mm
Body dimensions: 48x48x100mm
Kind of input 1: NPN; PNP
Kind of counter: progressive/reversing
Type of counter: electronical
Type of counted signal: time/pulses
Max IN1 counting frequency: 10kHz
Kind of input 2: NPN; PNP
Output 1 electrical parameters: 30V DC / 5A; 250V AC / 5A
Kind of output 2: SPST
Mounting: on panel
Supply voltage: 100...240V AC
Kind of output 1: SPST
Mounting hole diameter: 45x45mm
Resetting method: electrical; locking possibility; manual
Manufacturer series: CT
на замовлення 20 шт:
термін постачання 14-30 дні (днів)
КількістьЦіна без ПДВ
1+5389.53 грн
5+4599.12 грн
10+4192.86 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис CT6S-2P4 AUTONICS

Category: Impulse Counters, Description: Counter: electronical; LED x2; time/pulses; SPST; IN 1: NPN,PNP, Kind of display used: LED x2, Power supply: external, Operating temperature: -10...55°C, The additional control inputs: RESET, Electrical connection: screw terminals, Counter operation modes: delayed switching off; delayed switching on; ON and OFF delay; pulse after a specified time, Display height 1: 10mm, Number of operation modes: 15, Counting range: 0,001s...99999,9h / 999999, IN2 max counting frequency: 10kHz, Output 2 electrical parameters: 30V AC / 5A; 250V AC / 5A, Display 2 height: 7mm, Body dimensions: 48x48x100mm, Kind of input 1: NPN; PNP, Kind of counter: progressive/reversing, Type of counter: electronical, Type of counted signal: time/pulses, Max IN1 counting frequency: 10kHz, Kind of input 2: NPN; PNP, Output 1 electrical parameters: 30V DC / 5A; 250V AC / 5A, Kind of output 2: SPST, Mounting: on panel, Supply voltage: 100...240V AC, Kind of output 1: SPST, Mounting hole diameter: 45x45mm, Resetting method: electrical; locking possibility; manual, Manufacturer series: CT.

Інші пропозиції CT6S-2P4 за ціною від 12243.54 грн до 12243.54 грн

Фото Назва Виробник Інформація Доступність Ціна без ПДВ
CT6S-2P4 CT6S-2P4 Autonics CT.pdf Description: COUNTER TIMER 100-240VAC
Packaging: Box
Display Type: LED - Green, Red Characters
Output Type: Relay (2), Solid State (2)
Mounting Type: Panel Mount
Type: Batch, Preset, Tachometer, Timer, Totalizer
Reset: External, Front Panel
Termination Style: Screw Terminal
Voltage - Supply: 100 ~ 240VAC
Time Format: Multiple
Input Type: No Voltage, Voltage
Operating Mode: Up, Down
Count Rate: Multiple
Ingress Protection: IP65 - Dust Tight, Water Resistant
Panel Cutout Dimensions: Square - 45.00mm x 45.00mm
Display Characters - Height: 0.394" (10.00mm), 0.275" (7.00mm)
Number of Characters Per Row: 6, 6
Part Status: Active
на замовлення 450 шт:
термін постачання 21-31 дні (днів)
1+12243.54 грн
В кошику  од. на суму  грн.
CT6S-2P4 CT6S-2P4 AUTONICS CT.pdf Description: AUTONICS - CT6S-2P4 - COUNTER/TIMER, PROG, 6 DIGIT, 100-240VAC
tariffCode: 91070000
euEccn: NLR
rohsCompliant: YES
RoHS Compliant: Yes
hazardous: false
rohsPhthalatesCompliant: YES
Höhe des Frontplattenausschnitts: 45mm
isCanonical: Y
Betriebstemperatur, min.: -10°C
Versorgungsspannung, min.: 100VAC
Breite des Frontplattenausschnitts: 45mm
Ziffernhöhe: 11mm
Produktpalette: -
productTraceability: No
usEccn: 3A992.a
Versorgungsspannung, max.: 240VAC
Betriebstemperatur, max.: 55°C
Anzahl der Ziffern / Zeichen: 6
directShipCharge: 25
на замовлення 11 шт:
термін постачання 21-31 дні (днів)
В кошику  од. на суму  грн.
CT6S-2P4 CT.pdf
CT6S-2P4
Виробник: Autonics
Description: COUNTER TIMER 100-240VAC
Packaging: Box
Display Type: LED - Green, Red Characters
Output Type: Relay (2), Solid State (2)
Mounting Type: Panel Mount
Type: Batch, Preset, Tachometer, Timer, Totalizer
Reset: External, Front Panel
Termination Style: Screw Terminal
Voltage - Supply: 100 ~ 240VAC
Time Format: Multiple
Input Type: No Voltage, Voltage
Operating Mode: Up, Down
Count Rate: Multiple
Ingress Protection: IP65 - Dust Tight, Water Resistant
Panel Cutout Dimensions: Square - 45.00mm x 45.00mm
Display Characters - Height: 0.394" (10.00mm), 0.275" (7.00mm)
Number of Characters Per Row: 6, 6
Part Status: Active
на замовлення 450 шт:
термін постачання 21-31 дні (днів)
КількістьЦіна без ПДВ
1+12243.54 грн
В кошику  од. на суму  грн.
CT6S-2P4 CT.pdf
CT6S-2P4
Виробник: AUTONICS
Description: AUTONICS - CT6S-2P4 - COUNTER/TIMER, PROG, 6 DIGIT, 100-240VAC
tariffCode: 91070000
euEccn: NLR
rohsCompliant: YES
RoHS Compliant: Yes
hazardous: false
rohsPhthalatesCompliant: YES
Höhe des Frontplattenausschnitts: 45mm
isCanonical: Y
Betriebstemperatur, min.: -10°C
Versorgungsspannung, min.: 100VAC
Breite des Frontplattenausschnitts: 45mm
Ziffernhöhe: 11mm
Produktpalette: -
productTraceability: No
usEccn: 3A992.a
Versorgungsspannung, max.: 240VAC
Betriebstemperatur, max.: 55°C
Anzahl der Ziffern / Zeichen: 6
directShipCharge: 25
на замовлення 11 шт:
термін постачання 21-31 дні (днів)
В кошику  од. на суму  грн.
