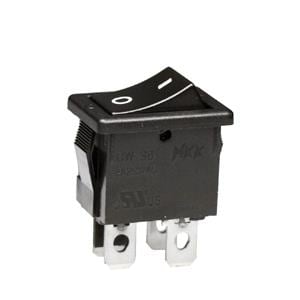

CWSB11AA2F NKK SWITCHES
Виробник: NKK SWITCHES
Category: Rocker Switches
Description: ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; CW; Rcont max: 20mΩ
Type of switch: ROCKER
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPST
AC contacts rating @R: 6A / 250V AC
Leads: connectors
Contact material: brass
Switching method: ON-OFF
Max. contact resistance:: 20mΩ
Body material: polyamide
Mounting hole dimensions: 12.9x19.2mm
Illumination: none
Body colour: black
Shape: rectangular
Mechanical durability: 30000 cycles
Electrical life: 10000 cycles
Operating Force: 6.5N
Operating temperature: -10...70°C
Leads dimensions: 4.75x0.8mm
Contact plating: silver plated
Mounting: on panel; SNAP-IN
Manufacturer series: CW
Button shape: rectangular
Key button colour: black
Button marking: O-I
Body dimensions: 21.1x15.1x16.2mm
Min. insulation resistance: 500MΩ
Відгуки про товар
Написати відгук
Технічний опис CWSB11AA2F NKK SWITCHES
Category: Rocker Switches, Description: ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; CW; Rcont max: 20mΩ, Type of switch: ROCKER, Number of positions: 2, Stable positions number: 2, Contacts configuration: SPST, AC contacts rating @R: 6A / 250V AC, Leads: connectors, Contact material: brass, Switching method: ON-OFF, Max. contact resistance:: 20mΩ, Body material: polyamide, Mounting hole dimensions: 12.9x19.2mm, Illumination: none, Body colour: black, Shape: rectangular, Mechanical durability: 30000 cycles, Electrical life: 10000 cycles, Operating Force: 6.5N, Operating temperature: -10...70°C, Leads dimensions: 4.75x0.8mm, Contact plating: silver plated, Mounting: on panel; SNAP-IN, Manufacturer series: CW, Button shape: rectangular, Key button colour: black, Button marking: O-I, Body dimensions: 21.1x15.1x16.2mm, Min. insulation resistance: 500MΩ.
Інші пропозиції CWSB11AA2F за ціною від 162.53 грн до 272.16 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CWSB11AA2F | NKK Switches |
Description: SWITCH ROCKER SPST 6A 250V Voltage Rating - AC: 250 V Part Status: Active Actuator Marking: O - Color - Actuator/Cap: Black Panel Cutout Dimensions: Rectangular - 19.20mm x 12.90mm Actuator Type: Concave (Curved) Termination Style: Quick Connect - 0.187" (4.7mm) Operating Temperature: -10°C ~ 70°C Switch Function: On-Off Circuit: SPST Mounting Type: Panel Mount, Snap-In Current Rating (Amps): 6A (AC) Features: Audible Click Packaging: Bulk Approval Agency: cULus |
на замовлення 896 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
 |
CWSB11AA2F | NKK Switches |
Rocker Switches SPST ON-NONE-OFF |
на замовлення 118 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. | ||||||||||||||
| CWSB11AA2F | NKK Switches |
Switch Rocker ON None OFF SPST Quick Connect Curved Rocker 6A 250VAC 30000Cycles |
на замовлення 13 шт: термін постачання 21-31 дні (днів) |
|
| CWSB11AA2F |
|
Виробник: NKK Switches
Description: SWITCH ROCKER SPST 6A 250V
Voltage Rating - AC: 250 V
Part Status: Active
Actuator Marking: O -
Color - Actuator/Cap: Black
Panel Cutout Dimensions: Rectangular - 19.20mm x 12.90mm
Actuator Type: Concave (Curved)
Termination Style: Quick Connect - 0.187" (4.7mm)
Operating Temperature: -10°C ~ 70°C
Switch Function: On-Off
Circuit: SPST
Mounting Type: Panel Mount, Snap-In
Current Rating (Amps): 6A (AC)
Features: Audible Click
Packaging: Bulk
Approval Agency: cULus
Description: SWITCH ROCKER SPST 6A 250V
Voltage Rating - AC: 250 V
Part Status: Active
Actuator Marking: O -
Color - Actuator/Cap: Black
Panel Cutout Dimensions: Rectangular - 19.20mm x 12.90mm
Actuator Type: Concave (Curved)
Termination Style: Quick Connect - 0.187" (4.7mm)
Operating Temperature: -10°C ~ 70°C
Switch Function: On-Off
Circuit: SPST
Mounting Type: Panel Mount, Snap-In
Current Rating (Amps): 6A (AC)
Features: Audible Click
Packaging: Bulk
Approval Agency: cULus
на замовлення 896 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 272.16 грн |
| 10+ | 226.27 грн |
| 25+ | 213.44 грн |
| 50+ | 191.60 грн |
| 100+ | 183.27 грн |
| 250+ | 172.79 грн |
| 500+ | 162.53 грн |
| CWSB11AA2F |
|
Виробник: NKK Switches
Rocker Switches SPST ON-NONE-OFF
Rocker Switches SPST ON-NONE-OFF
на замовлення 118 шт:
термін постачання 21-30 дні (днів)
| CWSB11AA2F |
|
Виробник: NKK Switches
Switch Rocker ON None OFF SPST Quick Connect Curved Rocker 6A 250VAC 30000Cycles
Switch Rocker ON None OFF SPST Quick Connect Curved Rocker 6A 250VAC 30000Cycles
на замовлення 13 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 4+ | 227.49 грн |
| 10+ | 217.14 грн |
