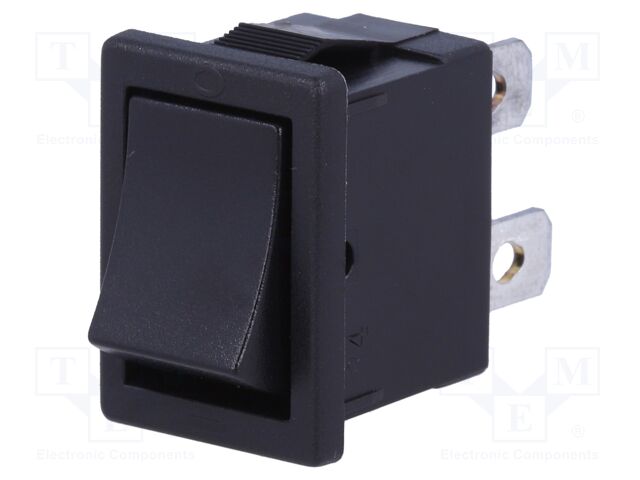

CWSB11AAF NKK SWITCHES
Виробник: NKK SWITCHESCategory: Rocker Switches
Description: ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; none; CW; Body: black
Type of switch: ROCKER
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 2
Switching method: ON-OFF
Key button colour: black
Illumination: none
Manufacturer series: CW
Max. contact resistance:: 20mΩ
Body colour: black
Operating temperature: -10...70°C
Leads: connectors
Button shape: rectangular
Min. insulation resistance: 500MΩ
Mounting: on panel; SNAP-IN
Leads dimensions: 4.75x0.8mm
Electrical life: 10000 cycles
AC contacts rating @R: 6A / 250V AC
Mounting hole diameter: 12.9x19.2mm
Operating Force: 6.5N
Body dimensions: 21.1x15.1x16.2mm
Mechanical durability: 30000 cycles
Contact plating: silver plated
Button marking: blank
Contact material: brass
Body material: polyamide
на замовлення 34 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 158.61 грн |
| 9+ | 106.97 грн |
| 24+ | 101.54 грн |
Відгуки про товар
Написати відгук
Технічний опис CWSB11AAF NKK SWITCHES
Category: Rocker Switches, Description: ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; none; CW; Body: black, Type of switch: ROCKER, Contacts configuration: SPST, Number of positions: 2, Stable positions number: 2, Switching method: ON-OFF, Key button colour: black, Illumination: none, Manufacturer series: CW, Max. contact resistance:: 20mΩ, Body colour: black, Operating temperature: -10...70°C, Leads: connectors, Button shape: rectangular, Min. insulation resistance: 500MΩ, Mounting: on panel; SNAP-IN, Leads dimensions: 4.75x0.8mm, Electrical life: 10000 cycles, AC contacts rating @R: 6A / 250V AC, Mounting hole diameter: 12.9x19.2mm, Operating Force: 6.5N, Body dimensions: 21.1x15.1x16.2mm, Mechanical durability: 30000 cycles, Contact plating: silver plated, Button marking: blank, Contact material: brass, Body material: polyamide, кількість в упаковці: 1 шт.
Інші пропозиції CWSB11AAF за ціною від 121.85 грн до 283.34 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CWSB11AAF | Виробник : NKK SWITCHES |
Category: Rocker Switches Description: ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; none; CW; Body: black Type of switch: ROCKER Contacts configuration: SPST Number of positions: 2 Stable positions number: 2 Switching method: ON-OFF Key button colour: black Illumination: none Manufacturer series: CW Max. contact resistance:: 20mΩ Body colour: black Operating temperature: -10...70°C Leads: connectors Button shape: rectangular Min. insulation resistance: 500MΩ Mounting: on panel; SNAP-IN Leads dimensions: 4.75x0.8mm Electrical life: 10000 cycles AC contacts rating @R: 6A / 250V AC Mounting hole diameter: 12.9x19.2mm Operating Force: 6.5N Body dimensions: 21.1x15.1x16.2mm Mechanical durability: 30000 cycles Contact plating: silver plated Button marking: blank Contact material: brass Body material: polyamide кількість в упаковці: 1 шт |
на замовлення 34 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||||||
 |
CWSB11AAF | Виробник : NKK Switches |
Rocker Switches SPST ON-NONE-OFF |
на замовлення 3726 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||||||
 |
CWSB11AAF | Виробник : NKK Switches |
Description: SWITCH ROCKER SPST 6A 250V Packaging: Tray Features: Audible Click Current Rating (Amps): 6A (AC) Mounting Type: Panel Mount, Snap-In Circuit: SPST Switch Function: On-Off Operating Temperature: -10°C ~ 70°C Termination Style: Quick Connect - 0.187" (4.7mm) Actuator Type: Concave (Curved) Panel Cutout Dimensions: Rectangular - 19.20mm x 12.90mm Color - Actuator/Cap: Black Actuator Marking: No Marking Voltage Rating - AC: 250 V Approval Agency: cULus |
на замовлення 2195 шт: термін постачання 21-31 дні (днів) |
|
