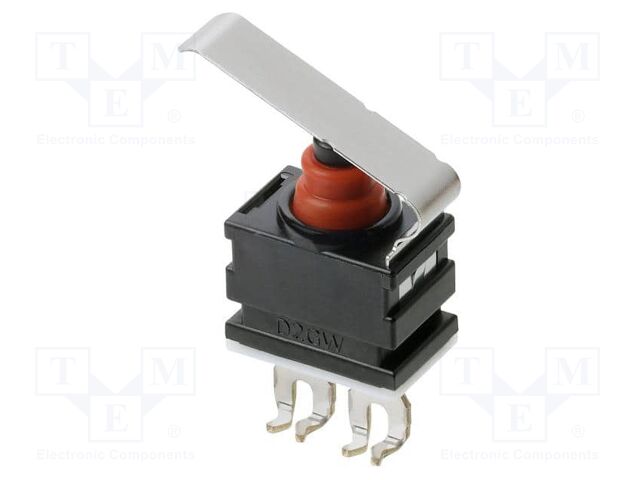

D2GW-A1L2F BY OMR OMRON Electronic Components
Виробник: OMRON Electronic ComponentsCategory: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 0.01A/13.5VDC; with lever; SPST-NC
Mounting: connectors
Operating temperature: -40...85°C
Leads: press-fit terminals
IP rating: IP67
Type of switch: microswitch SNAP ACTION
Switching method: ON-(OFF)
Contact plating: silver plated
Contacts configuration: SPST-NC
Switches features: with lever
Key stroke: 4.45mm
Body dimensions: 8.3x5.3x5mm
DC contacts rating @R: 0.01A / 13.5V DC
Lever length: 10.5mm
Max. contact resistance:: 500mΩ
Operating Force: 0.85N
Stable positions number: 1
Number of positions: 2
Electrical life: 200000 cycles
Mechanical durability: 200000 cycles
Min. insulation resistance: 0.1GΩ
Manufacturer series: D2GW
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис D2GW-A1L2F BY OMR OMRON Electronic Components
Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 0.01A/13.5VDC; with lever; SPST-NC, Mounting: connectors, Operating temperature: -40...85°C, Leads: press-fit terminals, IP rating: IP67, Type of switch: microswitch SNAP ACTION, Switching method: ON-(OFF), Contact plating: silver plated, Contacts configuration: SPST-NC, Switches features: with lever, Key stroke: 4.45mm, Body dimensions: 8.3x5.3x5mm, DC contacts rating @R: 0.01A / 13.5V DC, Lever length: 10.5mm, Max. contact resistance:: 500mΩ, Operating Force: 0.85N, Stable positions number: 1, Number of positions: 2, Electrical life: 200000 cycles, Mechanical durability: 200000 cycles, Min. insulation resistance: 0.1GΩ, Manufacturer series: D2GW, кількість в упаковці: 1 шт.
